mm / 英寸自动双单位换算 · 工程采购基础规格
| Overall dimensions | 580 x 550 x 1050 mm | |
|---|---|---|
| Seat width | 480 mm | |
| Seat depth | 460 mm | |
| Seat height range | 500 mm | |
| Backrest width | 470 mm | |
| Backrest height | 520 mm | |
| Armrest height from seat | 210 mm | |
| Five-star base diameter | 600 mm | |
| Caster diameter | 50 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
净重 / 最大承重 / 适用人数 / 耐久性能
| Recommended static weight capacity | 120 kg | |
|---|---|---|
| Net weight reference | 12 kg | |
| Seat foam density reference | 25 kg/m³ | |
| Back mesh abrasion resistance reference | 30000 cycles | |
| Caster rolling durability reference | 100000 cycles | |
| Tilt angle range | 12 degrees | |
| Maximum tilt angle | 12 degrees | |
| Foam rebound rate | 45% | |
| Seam tensile strength | 150 N/cm | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Backrest panel | Black woven nylon mesh stretched over a rigid plastic frame | |
|---|---|---|
| Seat cushion | Black woven fabric upholstery over polyurethane foam padding | |
| Armrests | Hard black plastic fixed arm supports with integrated top pads | |
| Chair base | Black nylon five-star base with ribbed structural reinforcement | |
| Gas lift cylinder | Chrome-plated steel pneumatic height adjustment cylinder | |
| Tilt mechanism | Black steel under-seat tilt mechanism with single control lever | |
| Casters | Black plastic twin-wheel casters with swivel stems | |
| Back frame | Black rigid plastic outer frame securing the mesh panel | |
| Seat inner frame | Plywood structural board with steel bracket mounting points, encased within foam and upholstery | |
| Control lever | Black rigid plastic lever arm attached to the tilt mechanism steel plate with metal fasteners | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| Seat height adjustment | Pneumatic height adjustment operated by left-side lever, with a maximum 100mm travel range | |
|---|---|---|
| Swivel function | 360-degree full rotation around the central gas lift axis, supported by a five-point rolling base | |
| Center tilt mechanism | Single-lever activated backward tilt with a maximum 12-degree recline angle, including tension adjustment via rotary knob | |
| Mobile rolling base | Five twin-wheel casters enabling smooth movement across hard floor and low-pile carpet surfaces | |
| Fixed forearm support | Rigid fixed-position armrests that provide stable forearm support at a 210mm height above the seat cushion, without height, width or pivot adjustment | |
| Full swivel function | 360-degree continuous rotation around the central gas lift axis, supported by a five-point rolling base | |
| Center tilt recline | Single-lever activated backward center tilt with a maximum 12-degree recline angle, including spring tension adjustment via under-seat rotary knob | |
| Tilt tension control | Clockwise rotary knob adjustment to increase tilt resistance, with a maximum 5-turn adjustment range from minimum to maximum tension | |
| Breathable back support | Tensioned nylon mesh backrest that conforms to upper back curvature and provides passive ventilation during seated use | |
| Recline Angle / Lock Reference | 125° with 3 suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Packaging units per set | 1 carton | |
|---|---|---|
| Reference carton dimensions | 650 x 550 x 300 mm | |
| Reference gross weight per carton | 14 kg | |
| Reference CBM per carton | 0.107 CBM | |
| Assembly time per unit | 30 minutes | |
| 20ft container loading quantity | 320 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set |
推荐空间 / 目标用户 / 使用方式
| Open-plan office workstations | Suitable for daily 8-hour desk work in open office environments, paired with standard height desks between 720mm and 760mm | |
|---|---|---|
| Small and medium enterprise office use | Cost-effective seating solution for administrative staff, customer service teams and entry-level office positions | |
| Conference and meeting rooms | Appropriate for fixed-seating meeting rooms as stackable or individually arranged visitor and participant seating | |
| Home office work setups | Suitable for home study and remote work use, compatible with standard 1600 mm wide home office desks | |
| Temporary workstations and training rooms | Suitable for training centers and temporary work areas due to simple assembly, easy mobility and durable mesh construction | |
| Small and medium enterprise administrative offices | Cost-effective seating solution for administrative staff, customer service teams and entry-level office positions with standard daily use requirements | |
| Shared co-working space seating | Suitable for shared co-working desk areas as durable, low-maintenance task seating for rotating users with standard body dimensions | |
| Customer reception and visitor areas | Appropriate for office visitor zones and front-desk waiting areas as functional, space-efficient seating for short-duration stays |
欧洲市场准入与化学品要求
| Office furniture - Office chairs - Requirements for safety, strength and durability | EN 1335:2020 | |
|---|---|---|
| Ergonomics of the work environment - Office furniture - Office chairs | EN 1335:2019 | |
| Furniture - Safety requirements for upholstered furniture | EN 1021:2014 |
美国及加拿大办公家具标准
| Office Chairs - General Requirements for Stability and Structural Integrity | ANSI/BIFMA X2021 | |
|---|---|---|
| Legislative and Regulatory Requirements for Upholstered Furniture Flammability | ANSI/BIFMA X2017 |
适用于中国市场项目的标准
| General technical requirements for office furniture | GB/T 3326 | |
|---|---|---|
| Limits of harmful substances for wooden furniture | GB 18584 | |
| Upholstered furniture flammability requirements | GB 20286 |
本产品须满足以下技术参数要求： 1. General technical requirements for office furniture：GB/T 3326； 2. Limits of harmful substances for wooden furniture：GB 18584； 3. Upholstered furniture flammability requirements：GB 20286； 最终交付参数、检测报告和验收标准以双方采购合同为准。
以下文件均根据当前已发布商品参数实时生成。
直接下载英文参数报告，可选择公制或英制单位。
导出全部商品信息与参数模块，文件内容统一使用英文。
包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。
生成申报品名、材质、用途、尺寸及海关申报要素。

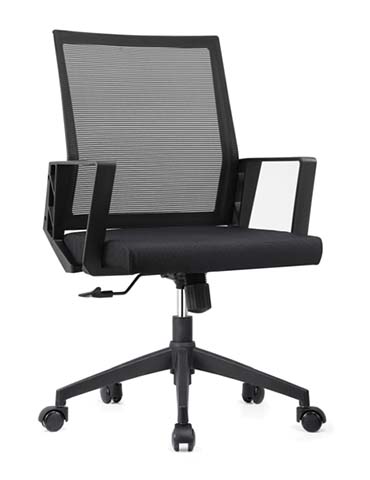

打开导出工具This mid-back mesh task office chr with fixed armrests presents a streamlined, practical visual profile suited to a range of work settings, with a compact rectangular mesh back panel, padded fabric seat, and strght fixed armrests mounted directly to the seat frame. Its black nylon five-star base supports five twin-wheel casters, creating a balanced, unobtrusive silhouette that aligns with neutral commercial and residential workspace aesthetics, with no decorative flourishes to distract from functional use. Construction centers on a tensioned black woven nylon mesh back stretched over a rigid plastic outer frame, pred with a seat featuring black woven fabric upholstery over polyurethane foam padding. The chr’s support structure includes a plywood inner seat frame with steel mounting brackets, a chrome-plated steel pneumatic gas lift cylinder, and a black steel under-seat tilt mechanism secured with metal fasteners. Fixed hard black plastic armrests with integrated top pads attach directly to the seat frame, while the ribbed-reinforced black nylon five-star base holds five swiveling black plastic twin-wheel casters. A single rigid plastic control lever sits on the left side of the seat, pred with an under-seat rotary tension knob for tilt adjustment. Key functional features include pneumatic seat height adjustment operated via the left-side lever, 360-degree full rotation around the central gas lift axis, and a center tilt mechanism with a maximum 12-degree backward recline angle, with tilt tension adjustable through the under-seat rotary knob. The mesh backrest delivers breathable passive ventilation and conforms to upper back curvature during seated use, while the fixed armrests provide stable forearm support above the seat cushion. The five-caster rolling base enables smooth movement across hard floor and low-pile carpet surfaces, supporting flexible space reconfiguration. This chr fits a diverse set of spaces, including open-plan office workstations pred with standard height desks, small and medium enterprise administrative offices, customer service teams, and entry-level positions as a cost-effective seating solution. It works well in conference and meeting rooms as individually arranged participant seating, in shared co-working spaces as low-mntenance task seating for rotating users, and in customer reception and visitor areas for short-duration stays. For residential use, it complements home office setups and study spaces, and it also suits temporary workstations and trning rooms due to its simple assembly and easy mobility. Procurement teams should note this is an unbranded entry-level model with a recommended static weight capacity of 120 kg, intended for standard dly use. The chr ships in a flat-packed carton for cost-efficient freight, with single-person assembly using basic tools. For bulk orders, standard contner loading configurations support volume purchasing planning. Material grades, gas lift certification, and exact component performance data require direct supplier verification for projects with strict compliance or durability requirements.
