PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	680 × 680 × 1290 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Recommended user weight capacity	136 kg
Net weight	19 kg
Caster rolling load per set	160 kg total dynamic load
Recommended user height range	190 cm
Seat foam density	45 kg/m3 molded high-resilience cushion
Foam rebound	42%
Fabric abrasion acceptance target	50,000 Martindale cycles
Back mesh tensile acceptance target	180 N warp and 140 N weft
Base static load acceptance target	1134 kg vertical static load
Warranty	5 years frame and mechanism, 2 years upholstery and casters

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Backrest upholstery	Blue flexible woven mesh tensioned over a black polymer outer frame
Seat surface	Blue mesh-faced cushion over contoured molded foam and load-bearing seat shell
Headrest	Blue mesh-faced padded cushion with black edge binding and central support stem
Armrests	Black molded T-polyurethane pads on black steel or die-cast support posts
Mechanism	Black multi-position tilt mechanism with steel top plate and tension-control housing
Gas lift	Black 50 mm outer-column gas lift connecting seat mechanism to five-star base

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Height adjustment	Pneumatic seat-height lift raises the seat from 450 to 540 mm through a side lever under the right seat
Recline and lock	Synchro-tilt mechanism moves back and seat together and locks at 95, 105 and 118 degrees
Tension control	Rear or underside knob adjusts tilt resistance for user weight, with a practical setting range of 136 kg
Headrest adjustment	Independent headrest provides 60 mm height movement and 20-degree angle adjustment for neck support

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Gross weight	22 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Office workstation use	Suitable for open-plan desks, private offices and home offices requiring 8 hour seated task support
Facility and procurement fit	Suitable for bulk workstation projects where blue mesh, black bases and standard caster replacement parts are preferred

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1 office seating dimensions	Use to verify seat, back, clearance and dimensional suitability for office task seating
EN 1335-2 office seating safety	Use for structural safety, stability and strength acceptance testing
EN 1335-3 office seating test methods	Use as the laboratory method for static load, durability and impact verification
EN 1021-1 and EN 1021-2 upholstery ignition	Use for cigarette and match ignition testing where project fire requirements apply

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.11 office chairs	Applicable standards and test results require confirmation
ANSI/BIFMA X5.1 caster and base tests	Use to verify five-star base load, caster durability and chair stability under specified cycles

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 10357.3 seating strength	Apply for back, seat and leg static-load and fatigue testing of office seating
GB/T 28004.1 office chair safety	Use for stability, structural safety and edge requirements for swivel office chairs
GB 17927-1 upholstered furniture ignition	Use for cigarette and match ignition testing if the chair is supplied into fire-sensitive contracts

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 10357.3 seating strength：Apply for back, seat and leg static-load and fatigue testing of office seating；
2. GB/T 28004.1 office chair safety：Use for stability, structural safety and edge requirements for swivel office chairs；
3. GB 17927-1 upholstered furniture ignition：Use for cigarette and match ignition testing if the chair is supplied into fire-sensitive contracts；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · EMH-BM-01

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · EMH-BM-01

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · EMH-BM-01打开导出工具

页面快速操作

发布采购询价

产品描述

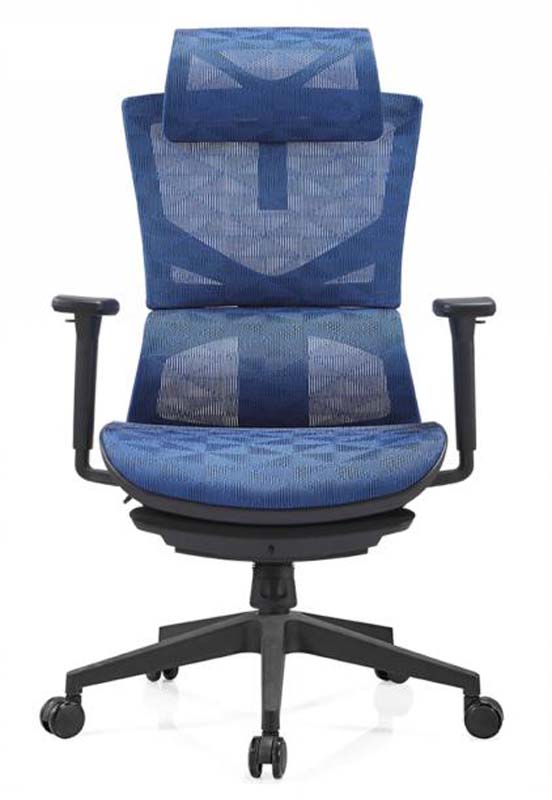

The High-Back Blue Mesh Ergonomic Office Chair with Headrest, model EMH-BM-01, presents a professional task-seating solution with a blue breathable mesh back, matching mesh headrest, and black structural components. Its visual character is defined by the tensioned blue woven backrest set within a black polymer outer frame, blue mesh-faced seat cushion, black molded armrests, and black five-star base. The high-back form includes a 240 mm lumbar support zone, padded headrest, and 540 mm clear width between armrests, giving the chair a structured appearance suited to focused desk work while maintaining an open, breathable back profile. Overall dimensions are 680 x 680 x 1290 mm. Construction combines upholstered comfort with durable support elements. The seat uses a blue mesh-faced cushion over contoured molded foam and a load-bearing seat shell. The finished cushion is 90 mm thick, with 45 kg/m3 molded high-resilience foam and 42 percent rebound. Backrest padding is 70 mm thick, and the fabric mesh is selected to a 50,000 Martindale-cycle abrasion acceptance target. Black molded T-polyurethane arm pads sit on black steel or die-cast support posts, while the multi-position tilt mechanism uses a black steel top plate and tension-control housing. A black 50 mm outer-column gas lift connects the mechanism to the nylon five-star mobile base fitted with twin-wheel casters. Functional adjustment is designed for personalized seated support. A side lever beneath the right seat operates the pneumatic height adjustment, raising seat height from 450 to 540 mm. The synchro-tilt mechanism moves the back and seat together and locks at 95, 105, and 118 degrees. A rear or underside knob controls tilt resistance for user weight, with a practical setting range reaching 136 kg. The independent headrest offers 60 mm of height movement and 20-degree angle adjustment for neck support. The chair also swivels and rolls for easy movement at a workstation. The recommended user weight capacity is 136 kg, the recommended maximum user height is 190 cm, and the caster set is rated for 160 kg total dynamic load. Net weight is 19 kg. These features make the chair appropriate for open-plan desks, private offices, and home offices where eight-hour seated task support is required. Procurement teams can consider this unbranded model for bulk workstation projects preferring blue mesh upholstery, black bases, and standard caster replacement parts. Each set ships in two cartons, with packaged gross weight of 23 kg, reference carton dimensions of 850 x 420 x 720 mm, and reference carton volume of 0.26 cubic meter per set. Reference assembly time is 40 minutes per set.

High-Back Blue Mesh Ergonomic Office Chair with Headrest Specifications
