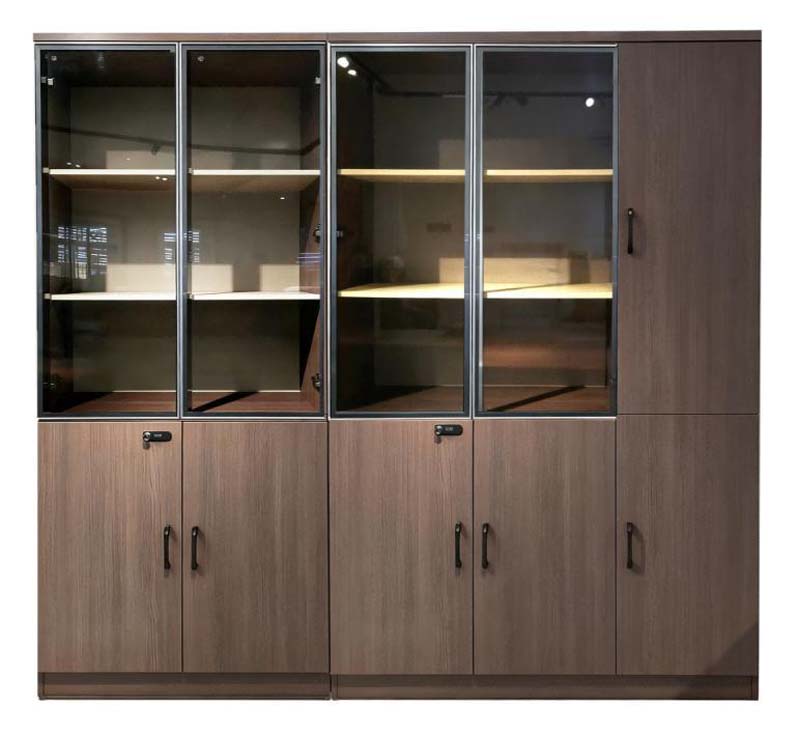

Modern Walnut Office Filing Storage Cabinet with Smoked Glass Upper Doors and Lockable Lower Compartments Specifications

OFC-STG-2400W-GL6D-WAL

代码:26D02BV1
获取供应商报价
2026-09-05 13:13人气: 11
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

OFC-STG-2400W-GL6D-WAL

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

overall dimensions2400 x 400 x 2000 mm
upper glass section height1050 mm
lower solid door section height900 mm
plinth base height50 mm
upper glass door width480 mm per door, 4 doors total for glass section
lower solid door width400 mm per door, 6 doors total for lower section
adjustable shelf depth360 mm
upper compartment clear shelf spacing330 mm
lower compartment internal height820 mm
glass door panel thickness5 mm
carcass panel thickness18 mm
back panel thickness9 mm
Door / Drawer Front Thickness22 mm
Shelf Thickness25 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

unit net weight180 kg
per shelf static load capacity40 kg
hinge cycle durability80000 open/close cycles
integrated LED strip service life30000 hours
key lock cycle durability20000 lock/unlock cycles
surface scratch resistance2 Class
recommended user count20people
Shelf Distributed Load30 kg/shelf
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening Angle / Life165°; 80000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

main carcass18mm E1-grade MDF core with walnut wood veneer finish, matte clear urethane topcoat
upper door panels5mm smoked tempered glass with black powder-coated aluminum framing
lower door panels18mm walnut wood-veneer MDF with matching edge banding
internal shelves18mm light oak-veneer MDF, adjustable on metal shelf supports
hardwareBlack powder-coated zinc alloy vertical pull handles, steel cam locks
frame trim1.2mm thick black powder-coated steel door frame edging
plinth base18mm walnut-veneer MDF with reinforced internal steel bracing
lighting components4000K neutral white LED strip lighting, recessed under upper shelves
edge banding1mm thick PVC edge banding matching walnut wood finish
back panel9mm hardboard with walnut finish on exposed interior surfaces
Edge Band Thickness2 mm
Primary Connector SpecificationReference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

upper glass door accessHinged doors swing open 110 degrees for unobstructed shelf access
lower compartment lockingKeyed cam locks secure two lower storage bays for confidential document storage
shelf adjustabilityUpper shelves adjust on 32mm increment holes to accommodate varying item heights
interior lightingTouch-activated LED strips illuminate upper glass display sections for visibility
lower door operationSix hinged solid doors swing open 110 degrees for bulk storage access
anti-tip protection2 wall-mounted anti-tip brackets included to secure cabinet to wall surfaces
storage configurationTwo-tier split layout separates display/reference materials from secured bulk storage
leveling adjustmentFixed plinth base with optional hidden leveling glides for uneven floor surfaces
Cable / Vent Opening ReferenceIf fitted, 80 mm diameter
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight100 kg/set in 3 cartons
Reference Packaging Volume0.65 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

executive office usePlaced behind executive desks to store reference materials, awards and confidential files
shared open office storageUsed in team work areas to store common office supplies, documents and display materials
reception area displayPositioned in office reception zones to display company materials, brochures and awards
conference room storageInstalled along conference room walls to store meeting materials, AV accessories and archival documents
recommended placement clearanceMaintain 1000mm clearance in front of doors for full open access and safe document retrieval
file storage compatibilityFits standard A4, letter and legal size document binders, storage boxes and office equipment
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 14073-2:2004Applicable to office storage furniture safety and strength requirements for tall cabinets
EN 1728:2014Applicable to furniture test methods for seat/table/storage unit structural strength
EN 13986:2004Applicable to wood-based panel performance standards for interior construction use
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.9-2019Applicable to storage furniture performance standards for commercial office use
ANSI/BIFMA e3-2019Applicable to furniture sustainability credits for material emissions and durability
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017Applicable to wooden office furniture general technical requirements for cabinet strength and stability
GB 18580-2017Applicable to formaldehyde emission limits for engineered wood panels used in indoor furniture
GB/T 4897.3-2015Applicable to particleboard/MDF performance requirements for furniture structural use
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:Applicable to wooden office furniture general technical requirements for cabinet strength and stability;
2. GB 18580-2017:Applicable to formaldehyde emission limits for engineered wood panels used in indoor furniture;
3. GB/T 4897.3-2015:Applicable to particleboard/MDF performance requirements for furniture structural use;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · OFC-STG-2400W-GL6D-WAL

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · OFC-STG-2400W-GL6D-WAL

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · OFC-STG-2400W-GL6D-WAL打开导出工具

页面快速操作

发布采购询价

产品描述

This modern walnut office filing storage cabinet balances refined visual appeal with purpose-driven office utility, designed as a floor-standing two-tier unit anchored by a low integrated plinth base. Its clean, linear layout splits storage vertically across two distinct sections: the upper 1050mm tall zone features four smoked tempered glass doors framed in matte black powder-coated metal, while the lower 900mm tall zone holds six solid walnut-veneer doors, all trimmed with matching black metal edging for a cohesive, streamlined look suited to professional environments. Dark smoked glass adds a subtle, sophisticated layer that obscures stored items slightly while keeping display contents visible, and warm walnut veneer pairs with crisp black hardware to complement contemporary office design palettes. The cabinet is constructed for long-term commercial use, with an 18mm E1-grade MDF core finished in walnut wood veneer topped with a matte clear urethane coat, and 1mm PVC edge banding matched to the walnut finish for a seamless look. Upper doors use 5mm smoked tempered glass set in black powder-coated aluminum frames, while lower doors use matching 18mm walnut-veneer MDF. Internal adjustable shelves are finished in light oak veneer, supported by durable metal hardware, and black powder-coated zinc alloy pull handles and steel cam locks complete the construction. Reinforced internal steel bracing in the plinth base adds structural stability, and two wall-mounted anti-tip brackets are included for safe installation. Functional design supports diverse office storage needs: the upper glass section features touch-activated 4000K neutral white integrated LED strips recessed under shelves to illuminate contents, with shelves adjustable in 32mm increments to fit items of varying heights, and doors that swing open 110 degrees for unobstructed access. The lower section includes lockable bays secured by keyed cam locks to hold confidential materials, with six doors that also open 110 degrees for easy bulk storage access. All shelves hold standard A4, letter, and legal size binders, storage boxes, and small office equipment. This cabinet fits seamlessly in executive offices placed behind desks for reference materials, awards, and confidential files; shared open office areas for team supplies and documents; reception zones to display company materials, brochures, and awards; and conference rooms to hold meeting supplies, AV accessories, and archival documents. Procurement teams should plan for a 40-minute assembly time, note that the unit ships across multiple cartons, ensure 1000mm of clearance in front of the unit for full door operation, and account for the unit’s 180kg net weight during installation planning to align with space and staffing requirements.
