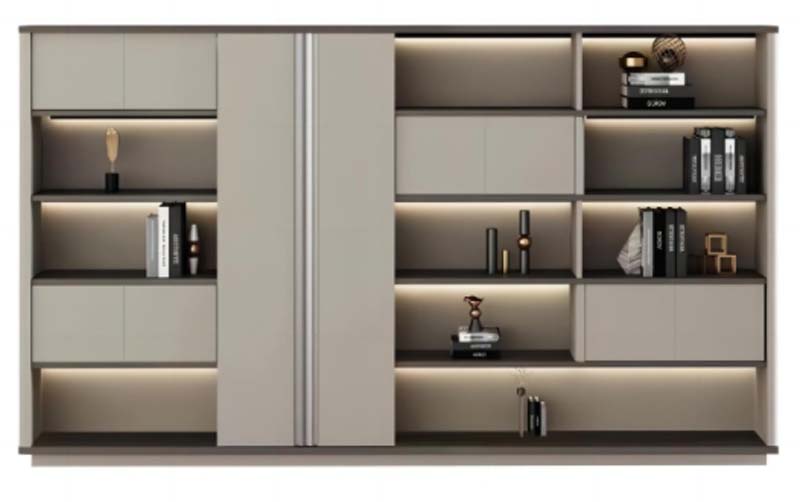

Two-Tone Full-Wall Office Display Storage Cabinet with Integrated LED Lighting Specifications

OFC-WALL-LED-3980

代码:5486USV1
获取供应商报价
2026-09-05 13:46人气: 14
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

OFC-WALL-LED-3980

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions3980 x 400 x 2120 mm
Open shelf compartment depth350 mm
Closed cabinet door height380 mm
Open shelf vertical spacing320 mm
Central sliding door section width1180 mm
Side open shelf unit width (each side)900 mm
Shelf panel thickness18 mm
Back panel thickness9 mm
Door panel thickness18 mm
Edge band thickness2 mm
Bottom plinth height60 mm
Carcass Panel Thickness25 mm
Door / Drawer Front Thickness22 mm
Shelf Thickness25 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Per open shelf static load capacity30 kg
Total unit net weight280 kg
Recommended maximum uniform wall load450 kg
LED strip service life30000 hours
Anti-tip anchor required quantity4
Available finish color options2
Shelf Distributed Load30 kg/shelf
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening Angle / Life165°; 80000 cycles
Anti-tip Fixing ReferenceProducts above 1200 mm should use at least 2 wall fixing points
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Carcass panels18mm melamine-faced particleboard, matte stain-resistant finish
Sliding door panels18mm matte light taupe melamine particleboard, aluminum edge trim
Shelf surfaces18mm dark grey melamine particleboard, scratch-resistant top coating
Back panel9mm medium density fiberboard, dark matte finish
Edge banding2mm PVC edge banding on all exposed panel edges
Sliding door trackAnodized aluminum dual track, low-friction glide strips
Door hinges (closed cabinets)Cold-rolled steel soft-close concealed hinges
Integrated lighting12V recessed LED strip lights, warm white 3000K output
Wall anchor hardwareZinc-plated steel anti-tip brackets and screws
Edge Band Thickness2 mm
Primary Connector SpecificationReference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Central sliding door accessDual full-height panels slide horizontally along aluminum track to reveal concealed storage
Under-shelf LED illuminationRecessed warm white strips cast even light on all open display shelves, hardwired low-voltage power supply
Closed cabinet storageUpper, middle and lower flat-panel doors enclose concealed compartments for clutter-free office storage
Open display shelvingFixed multi-tier open compartments arranged symmetrically on left and right sections for books and decor
Wall-anchored installationSecured to structural wall with anti-tip brackets to prevent forward tipping for commercial use
Adjustable shelf compatibilityPre-drilled shelf pin holes support 32mm incremental shelf height adjustment in closed compartments
Surface resistanceMelamine finish resists common office stains, scratches and impact from daily use
Cable / Vent Opening ReferenceIf fitted, 80 mm diameter
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight100 kg/set in 3 cartons
Reference Packaging Volume0.65 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Executive office background wallInstalled behind executive desks as a polished storage and display backdrop for leadership offices
Open office reception display areaUsed to display corporate accolades, reading materials and branded decor in reception zones
Conference room storage wallInstalled along conference room walls to store documents, presentation materials and decorative objects
Private office document storageUsed in individual private offices to organize files, books and personal work items
Recommended pairingMatch with executive desks and seating in coordinating neutral taupe/grey finishes for cohesive office design
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 312:2010Specification for particleboard panels suitable for load-bearing furniture applications
EN 14749:2016Safety and performance requirements for domestic and office storage furniture
EN 62471:2008Photobiological safety for integrated LED lighting components
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

North America procurement and testing referenceRecommended references: ANSI/BIFMA X5.9
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to panel office storage cabinets
GB 18580-2017Formaldehyde emission limits for wood-based panels, minimum E1 grade required for indoor office use
GB/T 4897-2015Specification for particleboard used in furniture construction, applicable to carcass and shelf panels
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to panel office storage cabinets;
2. GB 18580-2017:Formaldehyde emission limits for wood-based panels, minimum E1 grade required for indoor office use;
3. GB/T 4897-2015:Specification for particleboard used in furniture construction, applicable to carcass and shelf panels;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · OFC-WALL-LED-3980

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · OFC-WALL-LED-3980

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · OFC-WALL-LED-3980打开导出工具

页面快速操作

发布采购询价

产品描述

The KANAITE Two-Tone Full-Wall Office Display Storage Cabinet with Integrated LED Lighting, model OFC-WALL-LED-3980, is a modern hybrid storage and display solution designed for professional office environments. Built to full-wall scale, it features a symmetrical layout with matching open shelf units flanking a central sliding door section, paired with upper, middle and lower closed cabinet compartments across its structure. The two-tone finish pairs dark grey open shelf surfaces with matte light taupe sliding door panels, creating a polished, contemporary visual profile suited to curated professional spaces. Constructed with durable engineered wood components, the cabinet uses 18mm melamine-faced particleboard for its main carcass, shelf and sliding door panels, with a matte stain-resistant finish on the carcass, scratch-resistant top coating on shelf surfaces, and aluminum edge trim on sliding doors. All exposed panel edges are finished with 2mm PVC edge banding; the back panel uses 9mm dark matte medium density fiberboard. Hardware includes an anodized aluminum dual sliding track with low-friction glide strips, cold-rolled steel soft-close concealed hinges for closed cabinet doors, zinc-plated steel anti-tip mounting brackets, and recessed 12V warm white 3000K LED strips integrated under open shelves, rated for 30000 hours of service. Functional design balances open display and concealed storage: fixed multi-tier open shelves on either side hold books, decor and displayed items, with even under-shelf LED illumination to highlight contents. The central dual full-height sliding panels move horizontally to reveal hidden storage, while closed compartments offer clutter-free space for documents and supplies, with pre-drilled pin holes that support 32mm incremental shelf height adjustments. The melamine surfaces resist common office stains, scratches and daily impact, and the unit secures to structural walls with four anti-tip anchors to prevent forward tipping in commercial settings. Each open shelf supports a 30kg static distributed load. This cabinet is well suited for installation as a backdrop behind executive desks, in open office reception areas to display corporate accolades and branded decor, along conference room walls to hold presentation materials and decorative objects, or in private offices to organize files, books and personal work items. For cohesive design, it pairs seamlessly with executive desks and seating in coordinating neutral taupe and grey finishes. For procurement planning, note the unit ships across multiple cartons, with an 40-minute assembly time per set. The product is available in two finish color options, and installation requires mounting to a structural wall capable of supporting the recommended maximum uniform wall load.
