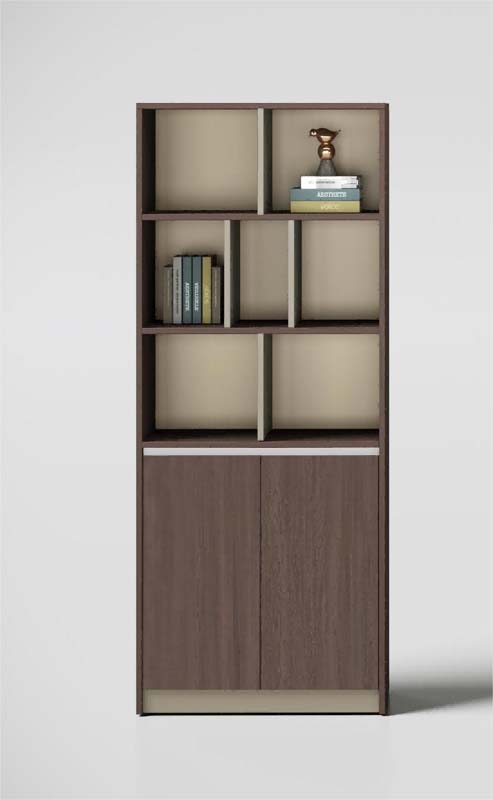

商品供应商Modern Asymmetrical Open Cubby Bookcase with Lower Two-Door Storage Cabinet,Particle‑board (PB)
可联系供应商获取生产周期与报价。
| 纠错时间 | 修改字段 | 原参数 | 修改后参数 | 说明 / 状态 |
|---|---|---|---|---|
暂无参数纠错记录,发现错误可点击行末旗标提交 | ||||
mm / 英寸自动双单位换算 · 工程采购基础规格
| overall dimensions | 840 x 425 x 1880 mm | |
|---|---|---|
| toe kick height | 80 mm | |
| lower cabinet interior height | 560 mm | |
| single lower door dimensions | 390 x 560 mm | |
| open shelf usable depth | 370 mm | |
| top open cubby clear height | 370 mm | |
| middle open cubby clear height | 340 mm | |
| lower open cubby clear height | 370 mm | |
| vertical divider thickness | 18 mm | |
| side panel thickness | 25 mm | |
| edge band thickness | 1 mm | |
| wall anti-tip anchor mounting height | 1700 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
净重 / 最大承重 / 适用人数 / 耐久性能
| unit net weight | 36 kg | |
|---|---|---|
| individual open shelf static load capacity | 27 kg | |
| hinge cycle rating for lower doors | 50000 open/close cycles | |
| lower door slide/hinge load rating | 15 kg per door | |
| surface abrasion resistance | 2000 rub cycles | |
| product warranty | 90 days | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| outer frame and door panels | 18mm P2-grade MDF with walnut wood-grain laminate finish | |
|---|---|---|
| cubby back panels and dividers | 15mm MDF with matte light taupe laminate finish | |
| toe kick base panel | 18mm MDF with matching light taupe laminate finish | |
| horizontal trim above lower doors | 0.8mm brushed silver aluminum alloy strip | |
| lower door hinges | Cold-rolled steel concealed soft-close hinges | |
| lower cabinet interior shelf | 18mm MDF with matching taupe laminate, adjustable on 32mm holes | |
| rear anti-tip hardware | Zinc-plated steel wall anchor bracket with mounting screws | |
| foot pads | Non-slip TPE pads at base corners to protect flooring | |
| surface edge banding | 1mm PVC edge banding matching walnut and taupe panel finishes | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| upper open storage layout | 3 tiers of fixed asymmetric divided cubbies for display and book storage | |
|---|---|---|
| lower cabinet access | Two side-by-side hinged doors that open 110 degrees for full interior access | |
| lower shelf adjustability | One adjustable interior shelf with 3 height positions to customize storage space | |
| wall safety attachment | Included anti-tip bracket secures upper rear of unit to wall to prevent tipping | |
| surface maintenance | Laminate surfaces resist stains and wipe clean with dry or damp cloth | |
| base clearance | Raised toe kick allows easy floor cleaning under the unit without moving | |
| color option count | 2 standard finish options: walnut/taupe and all-matte white | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
推荐空间 / 目标用户 / 使用方式
| private office space | Placed beside an executive desk to store reference books, files and display decor | |
|---|---|---|
| open plan work area | Used as shared storage for team reference materials and office supplies | |
| home office workspace | Combines book display and concealed storage for office supplies and personal items | |
| reception waiting area | Displays reading materials and decorative objects while storing miscellaneous items out of sight |
欧洲市场准入与化学品要求
| EN 14749:2016 | Safety and strength requirements for domestic and office storage furniture | |
|---|---|---|
| EN 312:2010 | Performance specifications for particleboard used in furniture construction | |
| EN 12521:2015 | Strength, durability and safety requirements for non-domestic storage furniture |
美国及加拿大家具标准
| 北美市场选型与验收 | ANSI/BIFMA X5.9 办公储物单元 |
|---|
适用于中国市场项目的标准
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for dimensional and structural quality checks | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, required for interior office furniture | |
| GB/T 4897.3-2003 | Performance requirements for particleboard used in furniture structural components |
本产品须满足以下技术参数要求: 1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable for dimensional and structural quality checks; 2. GB 18580-2017:Formaldehyde emission limits for wood-based panels, required for interior office furniture; 3. GB/T 4897.3-2003:Performance requirements for particleboard used in furniture structural components; 最终交付参数、检测报告和验收标准以双方采购合同为准。
