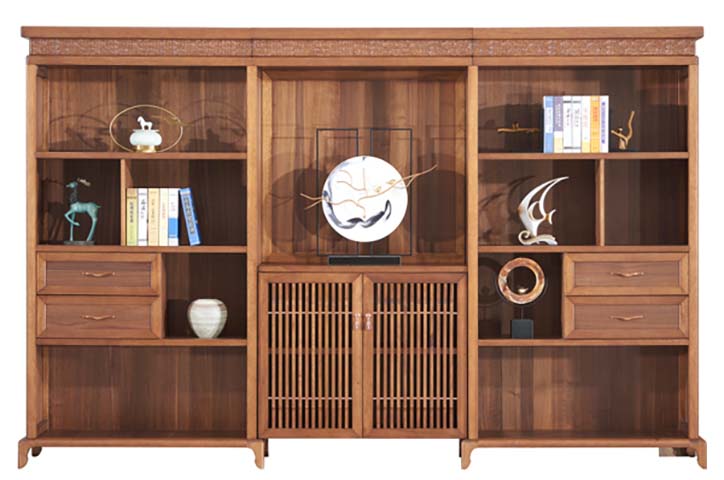

Name: New Chinese Style Three-Bay Solid Wood Display Bookcase with Drawers and Slatted Grille Doors
Brand: GUANGLI
SKU: CEY6D2

纠错时间

修改字段

原参数

修改后参数

说明 / 状态

暂无参数纠错记录，发现错误可点击行末旗标提交

PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	3000 × 380 × 2000 mm
Overall unit dimensions	3000 x 380 x 2000 mm
Single side bay width	980 mm
Central bay width	1040 mm
Open shelf vertical clearance	350 mm
Drawer internal dimensions	420 x 320 x 120 mm
Slatted door cabinet internal height	680 mm
Raised base foot height	120 mm
Top carved frieze height	80 mm
Shelf panel thickness	25 mm
Side panel thickness	30 mm
Back panel thickness	12 mm
Carcass Panel Thickness	25 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Open shelf static load capacity	30 kg per shelf
Total unit storage capacity	1200 L
Recommended maximum loaded weight	360 kg
Service life (normal use)	10 years
Surface abrasion resistance	2000 cycles
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points
Recommended Procurement Warranty	Carcass 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Main structural frame	Solid elm wood with mortise-and-tenon joinery
Exterior finish	Walnut-toned matte nitrocellulose lacquer
Open shelf panels	25mm thick solid elm wood panels
Drawer fronts and sides	18mm thick solid wood with dovetail joinery
Drawer pulls	Antique brass finish curved metal handles
Slatted grille doors	15mm wide solid wood vertical slats with clear gaps
Door hinges	Concealed brass butt hinges with 110-degree opening
Back panel	12mm thick plywood with wood veneer finish
Raised curved feet	Solid wood carved traditional style feet
Top decorative frieze	Carved solid wood trim with textured pattern
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Open shelf storage	Six multi-level open shelves on side bays, one large central open display bay
Drawer storage	Four stacked soft-close drawers (two per side bay) for small item organization
Concealed cabinet storage	Central lower double-door slatted cabinet for ventilated hidden storage
Fixed shelf design	All open and interior shelves are non-adjustable for stable load bearing
Ventilated door design	Slatted grille doors allow 30% air circulation for stored items
Floor-standing installation	Freestanding unit requires no wall mounting for standard use
Anti-tip safety	Two included wall anchor straps secure unit to wall for seismic safety
Cable / Vent Opening Reference	If fitted, 80 mm diameter

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Home study application	For home library and study spaces, holds hardcover books and display collectibles
Office reception application	For executive office reception or meeting room display of awards and documents
Tea house and hospitality use	For boutique tea house or hotel lounge display of ceramics and decorative art
Living room display use	For open-plan living rooms as a feature wall storage and display unit
Recommended configuration	Pair with matching new Chinese style desk and office chair for coordinated study sets
Color option availability	Available in walnut, rosewood, natural oak and light ivory finishes

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 14749:2016	Domestic and kitchen storage units and worktops - safety requirements, applicable for structural stability
EN 12521:2015	Furniture - strength, durability and safety for domestic storage furniture, applicable for load testing
EN 717-1:2004	Wood-based panels - formaldehyde release, class E1 limit for indoor air quality

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

北美市场选型与验收参考	ANSI/BIFMA X5.9 办公储物单元

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to structural and finish quality
GB 18584-2001	Indoor decorating and refurbishing materials - limit of harmful substances of wood based furniture, applicable for formaldehyde emission limits
GB/T 4897.3-2003	Particleboard for furniture use, applicable if engineered wood components are used in construction

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 3324-2017：General technical requirements for wooden furniture, applicable to structural and finish quality；
2. GB 18584-2001：Indoor decorating and refurbishing materials - limit of harmful substances of wood based furniture, applicable for formaldehyde emission limits；
3. GB/T 4897.3-2003：Particleboard for furniture use, applicable if engineered wood components are used in construction；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · NS-BC3B-2000W

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · NS-BC3B-2000W

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · NS-BC3B-2000W打开导出工具

页面快速操作

发布采购询价

产品描述

The GUANGLI New Chinese Style Three-Bay Solid Wood Display Bookcase with Drawers and Slatted Grille Doors, model NS-BC3B-2000W, is a floor-standing display storage unit defined by balanced symmetrical proportions and refined traditional aesthetic cues. Its visual layout centers on three distinct bays: two equal-width side bays flanking a slightly wider central bay, capped with an 80mm carved top frieze and elevated on 120mm solid wood carved curved feet that echo classic Chinese furniture silhouettes. The overall unit measures 3000 x 380 x 2000 mm, with vertical slatted grille doors on the central lower cabinet creating subtle textural contrast against smooth solid wood surfaces, fitted with antique brass finish curved metal drawer pulls and concealed brass butt hinges for a streamlined, uncluttered appearance. Its core structural frame is built from solid elm wood using traditional mortise-and-tenon joinery, with 25mm thick solid elm open shelf panels, 18mm thick dovetail-joined solid wood drawer components, and 12mm wood-veneered plywood back panels. All exterior surfaces are finished with walnut-toned matte nitrocellulose lacquer, formulated to withstand 2000 cycles of surface abrasion. The 15mm wide vertical slats on grille doors are spaced to allow consistent air circulation, while soft-close drawer slides rated for 45kg per pair support 50000 open-close cycles. Each open shelf supports a 30kg static distributed load, with a total recommended maximum loaded weight of 360kg across 1200L of total storage capacity, delivering a 10-year service life under normal use. Practical storage is segmented for flexible organization: six multi-level fixed open shelves across the two side bays sit above four stacked soft-close drawers (two per side) sized for small item sorting, paired with a wide central open display bay above a ventilated double-door slatted cabinet for concealed storage. Fixed non-adjustable shelves ensure consistent load stability, and the freestanding design requires no wall mounting for standard use, with two included anti-tip wall anchor straps provided for seismic safety. This bookcase suits a range of curated spaces: home studies and libraries for storing hardcover books and displaying collectibles, executive office reception areas or meeting rooms for showcasing awards and official documents, boutique tea houses and hotel lounges for presenting ceramics and decorative art, and open-plan living rooms as a statement feature wall storage piece. It is offered in walnut, rosewood, natural oak, and light ivory finishes, and can be paired with coordinating new Chinese style desks and office chairs for cohesive study sets. For procurement, note that the unit ships across multiple cartons with a total packaged gross weight of 100kg per set and total packaging volume of 0.65m³, requiring 40 minutes of on-site assembly per set. All interior and open shelves are permanently fixed, so storage dimensions including 350mm open shelf vertical clearance, 420 x 320 x 120mm drawer internals, and 680mm slatted cabinet internal height cannot be modified post-installation.

New Chinese Style Three-Bay Solid Wood Display Bookcase with Drawers and Slatted Grille Doors Specifications
