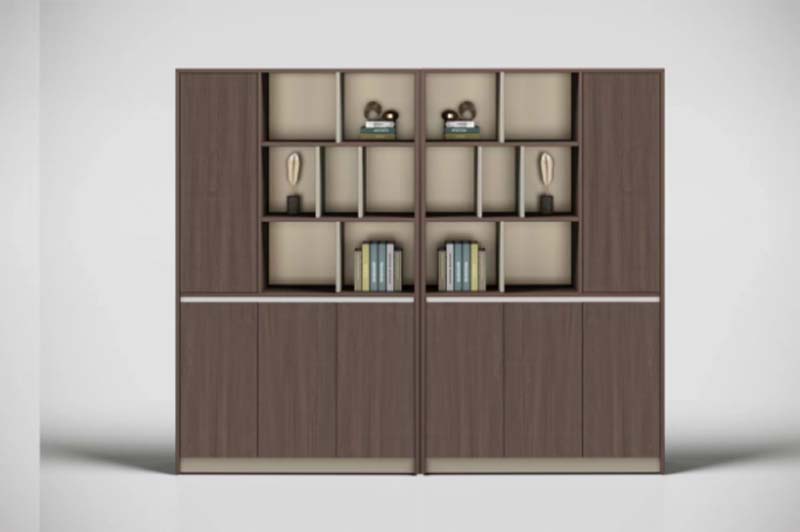

Symmetrical Dark Walnut Office Storage Bookcase with Closed Lower Doors Specifications

OSC-W3200-SG8D

代码:JVHZ0YV1
获取供应商报价
2026-09-05 12:55人气: 14
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

OSC-W3200-SG8D

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

overall dimensions3200 x 400 x 2000 mm
outer side panel width200 mm per side
upper open section total height1200 mm
lower closed section total height800 mm
single open cubby clearance480 x 320 x 350 mm
horizontal accent trim width2800 mm
single lower door dimensions400 x 800 mm
base kickplate height50 mm
structural panel thickness25 mm
back panel recess depth20 mm
shelf divider thickness18 mm
edge band thickness1 mm
Carcass Panel Thickness25 mm
Back Panel Thickness9 mm
Door / Drawer Front Thickness22 mm
Shelf Thickness25 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

per open shelf static load rating30 kg
per closed cabinet shelf static load rating40 kg
total unit static load capacity260 kg
net product weight130 kg
door hinge cycle rating80000 cycles
drawer slide static load (if fitted)35 kg
surface abrasion resistance2000 cycles
warranty period5 years
available finish count4
Shelf Distributed Load30 kg/shelf
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

carcass substrateE1-grade particleboard core
visible surface finishDark walnut matte wood laminate
open shelf back panelsLight beige matte laminate panels
lower door panels25mm thick solid engineered wood panels
accent trimLight silver matte aluminum alloy trim
shelf dividers18mm thick light beige engineered wood dividers
door hingesCold-rolled steel soft-close concealed hinges
base kickplateLight beige laminated engineered wood
anti-tip hardwareZinc-plated steel wall anchor brackets
optional LED stripsLow-voltage LED strip lighting
optional door locksBrass-keyed cam locks
Edge Band Thickness2 mm
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

open upper storage layout16 symmetrical cubby shelves split across two modules
lower concealed storage layout8 full-height door compartments with adjustable inner shelves
door opening mechanismSoft-close hinged doors open to 110 degrees
shelf adjustabilityAdjustable shelf pins allow 32mm incremental height changes
optional locking functionKeyed locks can be fitted to all lower doors
anti-tip safety featureWall anchor brackets secure top of unit to wall studs
integrated display lighting optionRecessed LED strips mount under horizontal shelf dividers
assembly configurationKnock-down flat pack assembly with cam-lock fasteners
modular alignment featureTwo matching modules connect with integrated joining brackets
Cable / Vent Opening ReferenceIf fitted, 80 mm diameter
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight100 kg/set in 3 cartons
Reference Packaging Volume0.65 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

executive office backdropInstalled behind executive desk to display decor and store files, matches professional office aesthetic
open office reception storageUsed in reception areas to hold reference materials and branded display items
meeting room document storageInstalled along meeting room walls to store meeting materials and reference books
private study home officeUsed in high-end home offices for book storage and concealed supply organization
recommended configurationPair with matching executive desk and wall paneling for cohesive office suite design
placement requirementPosition against solid load-bearing wall to use anti-tip anchors for safety
user suitabilityDesigned for corporate administration teams, executive staff, and professional home users
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 14749:2016Safety and strength requirements for domestic and office storage furniture
EN 13986:2004+A1:2015Wood-based panels for structural use, applicable for panel performance
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.9-2019Performance standard for office storage units, applicable for load and durability testing
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable for panel structural integrity
GB 18580-2017Formaldehyde emission limits for wood-based panels, applicable for E1-grade substrate verification
GB/T 4897.3-2015Particleboard specifications for furniture use, applicable for core material performance
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable for panel structural integrity;
2. GB 18580-2017:Formaldehyde emission limits for wood-based panels, applicable for E1-grade substrate verification;
3. GB/T 4897.3-2015:Particleboard specifications for furniture use, applicable for core material performance;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · OSC-W3200-SG8D

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · OSC-W3200-SG8D

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · OSC-W3200-SG8D打开导出工具

页面快速操作

发布采购询价

产品描述

The Symmetrical Dark Walnut Office Storage Bookcase with Closed Lower Doors (model OSC-W3200-SG8D) is an unbranded freestanding double-module storage solution designed for professional and upscale home workspaces. Its visual design centers on strict symmetrical balance, with a 1200mm tall upper open grid storage section paired with an 800mm tall lower closed storage zone, topped by a 2800mm wide light silver matte aluminum accent trim that spans the unit’s core structure. The upper section holds 16 evenly split cubby shelves across two modules, framed by dark walnut matte laminate surfaces with light beige matte back panels and 18mm thick light beige shelf dividers for crisp visual contrast. The lower section features eight flush 25mm thick solid engineered wood doors in matching dark walnut finish, set above a 50mm tall light beige laminated kickplate for a streamlined, contemporary silhouette. Constructed with an E1-grade particleboard core clad in dark walnut wood-laminate surfacing, the unit uses cold-rolled steel soft-close concealed hinges rated for 80000 open/close cycles, zinc-plated steel anti-tip wall anchors, and durable laminate surfaces tested to 2000 abrasion cycles. The upper open cubbies each support 30kg of static load, while adjustable lower cabinet shelves hold 40kg per level for a total unit static load capacity of 260kg. Lower doors open to 110 degrees with soft-close motion, and internal shelves adjust in 32mm increments via integrated pin hardware; optional keyed locks can be fitted to all lower doors, and recessed LED strip lighting can be mounted under upper shelf dividers for display illumination. This bookcase is suited for placement behind executive desks as a curated backdrop for decor and file storage, in open office reception areas to hold reference materials and branded display items, along meeting room walls for organized document and book storage, or in high-end private home offices for book collection and concealed supply storage. For a cohesive workspace aesthetic, pair it with matching executive desks and coordinated wall paneling. When procuring, note the unit requires placement against a solid load-bearing wall to properly install anti-tip anchors for safety. Each set ships in split cartons, requires 40 minutes of assembly per unit, and comes with all required wall anchoring hardware included. Key locks and integrated LED lighting are add-on selections to confirm at time of order to match specific storage security and display needs.
