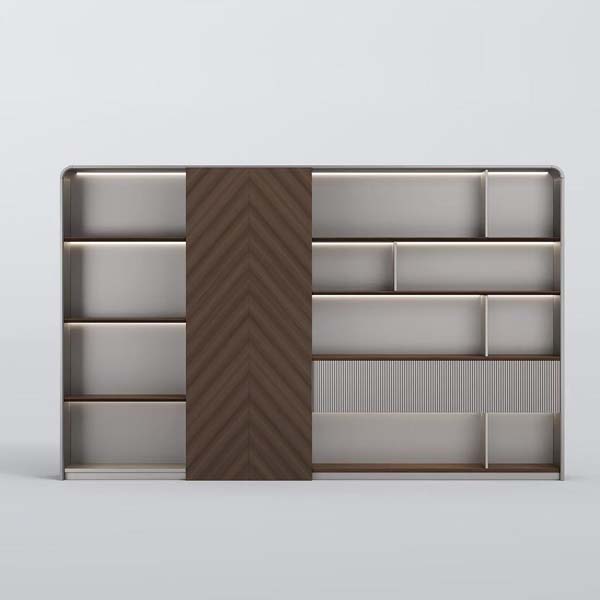

Modern Light Luxury Asymmetrical Display Storage Bookcase with Herringbone Panel, Fluted Glass and Integrated LED Lighting Specifications

BC-HB-FG-LED-1600

代码:UVD9HTV1
获取供应商报价
2026-09-02 16:47人气: 40
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

BC-HB-FG-LED-1600

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions1600 x 400 x 2000 mm
Central vertical herringbone panel width400 mm
Left open section width600 mm
Right asymmetric section width600 mm
Left open shelf compartment height450 mm
Open shelf usable depth350 mm
Fluted glass compartment height250 mm
Bottom base plinth height50 mm
Small right-side open cubby width200 mm
Metal frame member thickness20 mm
Carcass Panel Thickness25 mm
Back Panel Thickness9 mm
Door / Drawer Front Thickness22 mm
Shelf Thickness25 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Per open shelf static load capacity20 kg
Unit net weight90 kg
Fluted glass panel impact resistanceTempered safety glass rated for domestic display use
Recommended number of displayed hardcover books per shelf25
LED strip operational lifespan30000 hours
Anti-tip hardware rated pull load500 N
Shelf Distributed Load30 kg/shelf
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening Angle / Life165°; 80000 cycles
Anti-tip Fixing ReferenceProducts above 1200 mm should use at least 2 wall fixing points
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Outer frame20mm thick powder-coated matte metal with rounded top corners
Central divider panel18mm engineered wood substrate with herringbone wood veneer
Open shelf surfaces15mm thick engineered wood with matching wood veneer finish
Accent compartment panel5mm thick tempered fluted (ribbed) semi-transparent glass
Shelf edge trim2mm thick PVC edge banding matching wood finish
Back panel9mm thick engineered wood backing with matte light finish
Integrated lightingRecessed 2835 SMD linear LED strips along front shelf edges
Hardware accessoriesZinc-plated steel connecting hardware and wall anti-tip brackets
Edge Band Thickness2 mm
Primary Connector SpecificationReference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Open shelving displaySeven fixed-height open compartments across both sections for books and decor
Semi-concealed storageFluted glass panel hides stored items while allowing diffused light transmission
Integrated accent lightingFront-edge LED strips illuminate shelf contents without harsh glare
Wall anti-tip protectionIncluded wall anchor kit secures unit to prevent tipping under unbalanced load
Cable management for lightingConcealed internal routing for LED power cables to maintain clean exterior
Rounded edge safetySoft rounded top frame corners reduce impact injury risk during use
Cable / Vent Opening ReferenceIf fitted, 80 mm diameter
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight100 kg/set in 3 cartons
Reference Packaging Volume0.65 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Home study roomFreestanding storage for book collections and display decor against a feature wall
Modern office reception areaDisplay for corporate awards, publications and decorative accent pieces
High-end residential living roomMixed open and semi-concealed storage for media accessories and display items
Boutique retail displayShowcase for curated products, decorative objects and branded merchandise
Luxury hotel lounge areaDecorative storage for reading materials and lobby decor in premium hospitality spaces
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 14749:2016Applicable standard for safety and strength of domestic and kitchen storage furniture
EN 12521:2015Applicable standard for strength, durability and safety of domestic furniture storage units
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

北美市场选型与验收ANSI/BIFMA X5.9 办公储物单元
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017Applicable standard for general technical requirements of wooden furniture
GB 18580-2017Applicable standard for formaldehyde emission limits of wood-based panels
GB/T 15102-2017Applicable standard for surface decorated wood-based panels with resin-impregnated paper
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:Applicable standard for general technical requirements of wooden furniture;
2. GB 18580-2017:Applicable standard for formaldehyde emission limits of wood-based panels;
3. GB/T 15102-2017:Applicable standard for surface decorated wood-based panels with resin-impregnated paper;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · BC-HB-FG-LED-1600

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · BC-HB-FG-LED-1600

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · BC-HB-FG-LED-1600打开导出工具

页面快速操作

发布采购询价

产品描述

This modern light luxury floor-standing display storage bookcase features a deliberate asymmetrical layout anchored by a central vertical herringbone veneer panel that splits the unit into two equal-width sections. The left section holds uniformly sized open shelves, while the right section combines open display space with compartments fronted by semi-transparent fluted glass, creating a balanced mix of visible and softly obscured storage. Its matte powder-coated metal frame has rounded top corners that soften the unit’s silhouette and reduce sharp edge hazards, with a low integrated base plinth that elevates the main storage volume slightly above the floor. The bookcase is constructed with durable, coordinated materials: a thick powder-coated metal outer frame, engineered wood substrates finished with matching herringbone wood veneer for the central divider and shelf surfaces, tempered fluted glass for accent compartment fronts, and PVC edge banding that matches the wood finish to seal shelf edges. Recessed linear LED strips run along the front edges of shelves, with concealed internal cable routing to keep the exterior free of visible wiring. Zinc-plated steel connecting hardware and included wall anti-tip brackets add structural stability during use. Functionally, the unit offers seven fixed-height open compartments suitable for displaying books and decorative items, alongside fluted glass compartments that conceal stored items while allowing diffused light to pass through. The integrated LED strips cast even, glare-free illumination on displayed contents, and the included anti-tip kit secures the unit to walls to prevent tipping under unbalanced loads. Each shelf supports distributed weight for regular storage needs, with sufficient capacity for standard hardcover book displays; the tempered fluted glass is rated for domestic display use, and the LED strips deliver long operational life for consistent accent lighting. This bookcase fits a wide range of residential and commercial settings: it works as freestanding storage for book collections and decor in home studies, as a display piece for awards and publications in modern office reception areas, as mixed media and display storage in high-end residential living rooms, as a curated product showcase in boutique retail spaces, and as decorative storage for reading materials and lobby accents in luxury hotel lounges. For procurement, note that the unit ships in multiple cartons per set, with a straightforward assembly timeline for on-site installation. Procurement teams should account for the unit’s net and packaged weight when planning delivery and placement, and confirm access to a standard power source near installation points to utilize the integrated LED lighting. The unit’s fixed shelf heights should be aligned with intended display item dimensions prior to purchase to ensure a proper fit for planned use cases.
