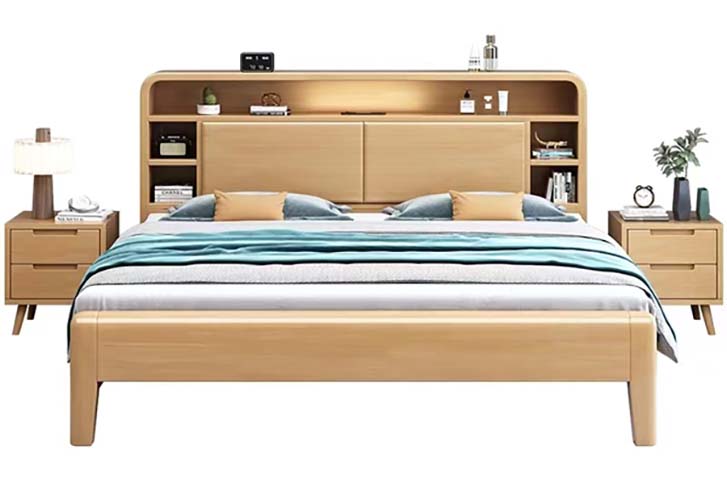

Product supplierLight Oak Wooden Storage Platform Bed with Integrated Bookshelf Headboard and LED Light, Solid beech wood with light natural matte oil finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1870 × 2170 × 1100 mm | |
|---|---|---|
| Compatible mattress size | 1800 x 2000 mm | |
| Sleeping platform height from floor | 400 mm | |
| Under-bed floor clearance | 155 mm | |
| Headboard shelf depth | 200 mm | |
| Headboard side cubby internal dimensions | 250 x 250 x 180 mm | |
| Footboard height from sleeping platform | 250 mm | |
| Upholstered headboard panel thickness | 30 mm | |
| Support slat thickness | 25 mm | |
| Support slat spacing | 70 mm | |
| Angled support leg cross-section | 60 x 60 mm | |
| Side Rail Thickness | 40 mm | |
| Slat Spacing | 80 mm | |
| Center Support Leg Count | Recommended 6legs |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total static weight capacity | 454 kg | |
|---|---|---|
| Recommended mattress thickness | 356 mm | |
| Number of supported sleepers | 2 | |
| Headboard shelf static load per shelf | 15 kg | |
| Slat system center support count | 3 | |
| Product net weight | 78 kg | |
| Upholstery abrasion resistance | 30000 cycles | |
| Bed Static Load Reference | 400 kg | |
| Per-slat Load Reference | 60 kg | |
| Recommended Procurement Warranty | Frame 10 years; hardware 5 years; upholstery 2 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Bed frame main structure | Solid beech wood with light natural matte oil finish | |
|---|---|---|
| Headboard side shelf panels | Solid rubberwood with matching light oak finish | |
| Support slat system | Solid plywood slats with velcro fixing to side rails | |
| Center headboard panels | MDF core with linen upholstery and 25mm high-density foam padding | |
| Integrated lighting | Low-voltage 3000K warm white LED strip under top headboard shelf | |
| Support legs | Solid angled beech wood with rounded edge treatment | |
| Footboard panel | Solid beech wood with rounded top edge matching headboard styling | |
| Hardware connectors | Zinc-plated steel barrel bolts and dowel joinery | |
| Surface finish | E0-grade water-based matte wood finish | |
| Slat Thickness | 15 mm bent plywood or solid timber | |
| Primary Connector Specification | Reference M8-M10 bolts with at least 2 fixing points per corner | |
| Reference Finish / Color Count | Recommended 6timber/upholstery options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Headboard storage layout | One full-width top ledge plus four symmetric open side cubbies (two per side) | |
|---|---|---|
| Integrated LED lighting | Warm white ambient strip light recessed under top headboard shelf | |
| Mattress support system | Slatted platform base eliminates need for separate box spring | |
| Padded headboard support | Two split upholstered panels provide upright back support for sitting in bed | |
| Rounded edge safety design | All exposed frame corners and edges feature radius rounding to reduce impact injury | |
| Matching nightstand compatibility | Designed to pair with matching two-drawer solid wood nightstands on either side | |
| KD assembly design | Flat-pack knock-down assembly with pre-drilled alignment holes | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2300× 900× 450 mm/carton in 4 cartons | |
| Reference Packaged Gross Weight | 130 kg/set | |
| Reference Packaging Volume | 0.9 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Primary application space | Master bedrooms in modern Scandinavian-style residential apartments | |
|---|---|---|
| Target user group | Adult couples seeking combined sleeping surface and bedside open storage | |
| Recommended pairing | Match with two coordinating two-drawer light oak nightstands as shown in display | |
| Suitable mattress type | All standard memory foam, latex or innerspring mattresses up to 356mm thick | |
| Small space suitability | Ideal for compact bedrooms where separate bedside shelves are not feasible | |
| Ambient use case | Integrated LED provides soft low-level light for nighttime use without overhead lighting |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1725:1998 | Domestic furniture - Beds and mattresses - Safety requirements and test methods | |
|---|---|---|
| EN 12521:2015 | Furniture - Strength, durability and safety for domestic seating and sleeping furniture |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for frame strength and finish quality | |
|---|---|---|
| GB 18584-2001 | Limit of harmful substances in wooden furniture, applicable for formaldehyde emission testing | |
| GB/T 26706-2011 | General technical requirements for upholstered furniture beds, applicable for padding and structure safety |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for frame strength and finish quality; 2. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable for formaldehyde emission testing; 3. GB/T 26706-2011: General technical requirements for upholstered furniture beds, applicable for padding and structure safety; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
