PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1890 × 2150 × 1050 mm
Compatible mattress size	1800 x 2000 mm
Headboard total height	1050 mm
Headboard panel thickness	25 mm
Sleeping surface height (with mattress)	550 mm
Under-bed storage compartment height	400 mm
Floor clearance under frame	25 mm
Slat dimensions	1830 x 60 x 15 mm
Slat spacing	70 mm
Total slat count	18
Center support rail count	3
Integrated support leg height	25 mm
Side Rail Thickness	40 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total bed frame static load capacity	800 kg
Maximum recommended mattress weight	55 kg
Lift mechanism open angle	45 degrees
Hydraulic strut rated cycle life	10000 open/close cycles
Storage compartment total volume	680 L
Net product weight	80 kg
Assembly time (two-person)	60 minutes
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg
Recommended Procurement Warranty	Frame 10 years; hardware 5 years; upholstery 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Bed frame and side panels	18mm thick rubberwood veneered MDF with matte natural finish
Headboard frame	25mm thick solid pine wood with rounded edge trim
Headboard geometric inlay	8mm thick off-white painted MDF chevron inserts
Mattress support slats	15mm thick multi-layer plywood with sanded smooth surface
Lift mechanism hardware	2mm thick black powder-coated steel frame with gas struts
Integrated support legs	Solid rubberwood with natural matte finish, tapered profile
Internal storage dividers	12mm thick plywood partitions separating three storage zones
Joinery hardware	Zinc-plated cam bolts and wood screws with dowel alignment
Surface finish	Low-VOC matte clear lacquer, abrasion resistance 1000 cycles
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Foot-end hydraulic lift operation	Gas struts assist lifting slat platform to 45 degrees, soft-close lowering prevents slamming
Divided under-bed storage	Three separate compartment zones hold folded bedding, linens, and off-season clothing
No box spring required	Plywood slat base provides direct support for all standard 300 mm thick mattresses
Mattress anti-slide stop	100mm high lip at head of slat platform prevents mattress shift during lift
Wall-aligned headboard design	Flat rear headboard panel sits flush against wall with no gap
Integrated leg floor protection	Felt pads pre-installed on leg bases prevent hardwood floor scratches
Flat-pack assembly	Pre-drilled panels with included hex key and hardware for home assembly
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Small urban master bedrooms	High-capacity storage eliminates need for separate dressers in compact spaces
Nordic or Scandinavian style interiors	Light natural wood finish and geometric accent matches light neutral palettes
Guest bedrooms with dual storage needs	Stores extra linens and guest supplies while providing standard sleeping surface
Apartment dwellers with limited closet space	Under-bed storage holds off-season clothing and luggage without occupying floor space
Teen or young adult bedrooms	Low-profile design and durable frame support daily long-term residential use

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725:1998	Domestic furniture - Beds and mattresses - Safety requirements and test methods
EN 12521:2015	Furniture - Strength, durability and safety for domestic seating and beds

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to frame strength and finish quality
GB 18584-2001	Limit of harmful substances in wooden furniture, applicable to formaldehyde emission testing
GB/T 10357.6-2013	Furniture mechanical test for bed strength and durability, applicable to static load testing

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to frame strength and finish quality;
2. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable to formaldehyde emission testing;
3. GB/T 10357.6-2013: Furniture mechanical test for bed strength and durability, applicable to static load testing;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LB-CHV-1800-LIFT

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LB-CHV-1800-LIFT

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LB-CHV-1800-LIFTOpen Export Tool

Quick Actions

Post an RFQ

Product Description

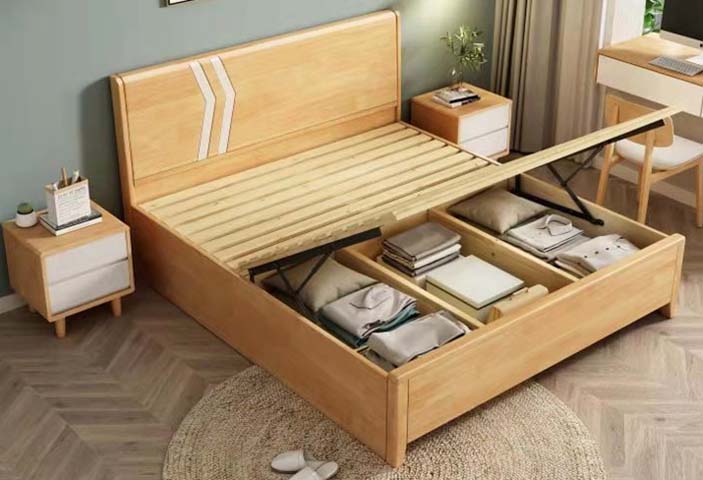

This light natural wood lift-up storage platform bed, model LB-CHV-1800-LIFT, delivers a streamlined, Nordic-inspired design paired with high-capacity hidden storage for residential use. Its low-profile silhouette features a headboard framed in solid pine with rounded edge trim, accented by off-white painted MDF chevron geometric inlays that add subtle visual texture without overwhelming soft, neutral interior palettes. The flat rear headboard panel sits fully flush against walls to eliminate unsightly gaps, while tapered solid rubberwood legs lend a light, open feel despite the frame’s robust build. A matte natural wood finish, coated in low-VOC clear lacquer, lends a warm, understated look that complements light-toned decor schemes.
The bed is constructed with an 18mm thick rubberwood veneered MDF frame and side panels, paired with a 15mm thick multi-layer plywood slat base that removes the need for a separate box spring, directly supporting standard 1800 x 2000 mm mattresses up to 300 mm thick. The lift mechanism relies on 2mm thick black powder-coated steel hardware and metal hydraulic gas struts, rated for 10000 open/close cycles, that assist lifting the slat platform to a 45 degree angle and enable soft-close lowering to prevent slamming. Internal 12mm thick plywood dividers split the 680 L under-bed storage compartment into three distinct zones, while a 100mm high lip at the head of the slat platform stops mattresses from shifting during lift operation. Pre-installed felt pads on leg bases protect hardwood floors from scratches, and zinc-plated cam bolts, wood screws, and dowel alignment ensure secure, stable joinery that supports a total static load of 800 kg.
This model is ideally suited for small urban master bedrooms, where its high-capacity storage eliminates the need for separate dressers in compact layouts, as well as Nordic or Scandinavian style interiors that prioritize light natural materials and clean lines. It works well for guest rooms needing to stow extra linens and guest supplies, apartment homes with limited closet space for off-season clothing and luggage, and teen or young adult bedrooms requiring durable, long-term daily use.
Procurement teams and residential buyers should note the unit ships in flat-pack form across multiple cartons, with pre-drilled panels and included hardware and hex key for assembly; two-person assembly is recommended, with a typical assembly time of 60 minutes. The total net weight of the bed is 80 kg, with a packaged gross weight of 130 kg, and buyers should confirm space to accommodate the 1890 x 2150 x 1050 mm external dimensions before purchase. The recommended maximum mattress weight is 55 kg, and the 25 mm floor clearance under the frame is designed to sit low to the ground per its low-profile platform design.

Light Natural Wood Lift-Up Storage Platform Bed with Geometric Inlay Headboard Specifications
