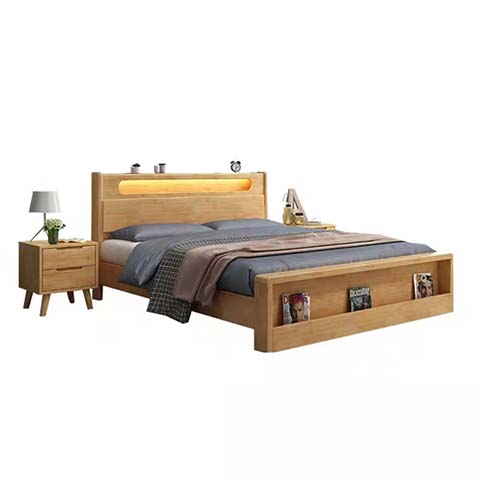

Product supplierLight Oak Wooden Platform Storage Bed with LED Headboard and Footboard Book Slots, 18mm MDF core with light oak wood veneer, matte wear-resistant finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1620 × 2365 × 1200 mm | |
|---|---|---|
| Headboard panel thickness | 30 mm | |
| Footboard panel thickness | 30 mm | |
| Headboard top shelf depth | 120 mm | |
| Headboard top shelf height from platform | 980 mm | |
| Footboard storage slot internal dimensions | 280 x 60 x 300 mm | |
| Mattress support platform height from floor | 325 mm | |
| Under-bed floor clearance | 300 mm | |
| Recommended mattress thickness | 356 mm | |
| Support slat width | 70 mm | |
| Support slat thickness | 25 mm | |
| Support slat spacing | 75 mm | |
| Center support rail quantity | 3 | |
| Footboard storage slot quantity | 3 | |
| Side Rail Thickness | 40 mm | |
| Slat Spacing | 80 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total static weight capacity | 544 kg | |
|---|---|---|
| Recommended maximum user weight per side | 136 kg | |
| LED strip operational lifespan | 30000 hours | |
| Footboard storage slot load per compartment | 5 kg | |
| Headboard top shelf maximum load | 10 kg | |
| Assembly fastener torque rating | 12 Nm | |
| Surface wear resistance (abrasion cycles) | 1000 cycles | |
| Product net weight | 68 kg | |
| Bed Static Load Reference | 400 kg | |
| Per-slat Load Reference | 60 kg |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Headboard/footboard panels | 18mm MDF core with light oak wood veneer, matte wear-resistant finish | |
|---|---|---|
| Mattress support slats | Solid hardwood (rubberwood) slats, sanded smooth, no sharp edges | |
| Structural frame rails | 25mm engineered wood (particle board) with oak veneer, reinforced corner blocks | |
| Integrated LED strip | 12V SMD 2835 warm white LED strip, recessed in headboard channel | |
| Hardware connectors | Zinc-plated steel cam locks, wood screws, and L-brackets for joint reinforcement | |
| Center support legs | Solid rubberwood legs with anti-slip floor protection pads | |
| Footboard storage dividers | 15mm MDF with matching oak veneer, secured to footboard frame | |
| Surface finish | Low-VOC matte clear lacquer, scratch-resistant, easy to wipe clean | |
| Slat Thickness | 15 mm bent plywood or solid timber | |
| Primary Connector Specification | Reference M8-M10 bolts with at least 2 fixing points per corner | |
| Reference Finish / Color Count | Recommended 6timber/upholstery options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Integrated headboard LED ambient light | Recessed warm white strip illuminates headboard zone, touch-dimmable | |
|---|---|---|
| Footboard open book storage | 3 vertical front-facing slots store books, magazines and reading material | |
| Platform slat support system | Eliminates need for box spring, provides even mattress support and ventilation | |
| Under-bed clearance access | 300mm open space allows robot vacuum access and under-bed cleaning | |
| Noise-reduction slat mounting | Slats secured with Velcro strips to minimize squeaking during movement | |
| Reinforced center support | 3 longitudinal rails and support legs prevent frame sagging over time | |
| Matching nightstand compatibility | Coordinating 2-drawer nightstand with splayed tapered legs uses identical light oak finish | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2300× 900× 450 mm/carton in 4 cartons | |
| Reference Packaged Gross Weight | 130 kg/set | |
| Reference Packaging Volume | 0.9 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential main bedroom | Suits queen size mattress placement in modern or Nordic-style primary bedrooms | |
|---|---|---|
| Teen/guest bedroom | Compact low-profile design and open storage fits smaller guest or teen rooms | |
| Small urban apartment bedrooms | Built-in shelf and footboard storage reduces need for separate bookcases or side tables | |
| Matching bedroom set configuration | Pairs with coordinating 2-drawer light oak nightstand for unified room aesthetic | |
| Low-profile decor preferences | 325mm platform height suits modern low-bed styling without under-bed drawers | |
| Robot vacuum compatible households | 300mm under-bed clearance allows full access for automated floor cleaning devices |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 747-1:2012+A1:2015 | Domestic beds and mattresses safety requirements, applicable for structural safety | |
|---|---|---|
| EN 13336:2009 | Furniture for domestic use, mechanical safety test methods for strength and durability |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for structural safety and finish quality | |
|---|---|---|
| GB 18584-2001 | Limit of harmful substances in wood furniture, applicable for formaldehyde emission control | |
| GB/T 3327-2008 | Dimensions for beds, applicable to verify mattress fit and ergonomic clearances |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural safety and finish quality; 2. GB 18584-2001: Limit of harmful substances in wood furniture, applicable for formaldehyde emission control; 3. GB/T 3327-2008: Dimensions for beds, applicable to verify mattress fit and ergonomic clearances; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
