PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1890 × 2120 × 1050 mm
Compatible mattress size	1800 x 2000 mm
Headboard height from floor	1050 mm
Footboard height from floor	460 mm
Side rail height from floor	430 mm
Mattress support slat surface height	300 mm
Under-bed clearance	170 mm
Spindle slat diameter (headboard/footboard)	30 mm
Headboard/footboard post diameter	60 mm
Support slat thickness	25 mm
Slat spacing	65 mm
Matching nightstand dimensions (per unit)	480 x 390 x 510 mm
Side Rail Thickness	40 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total bed static load capacity	500 kg
Center support leg count	5
Support slat count	18
Recommended mattress thickness	220 mm
Warranty period	5 years
Available color finish count	1
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg
Recommended Procurement Warranty	Frame 10 years; hardware 5 years; upholstery 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Bed frame (posts, rails, headboard/footboard)	Solid natural beech/rubberwood with matte clear lacquer
Support slat base	Solid birch wood slats with reinforced edge banding
Nightstand frame and drawer fronts	Solid wood frame with flush wood veneer drawer fronts
Hardware connectors	Zinc-plated steel dowels and cam lock fasteners
Center support legs	Solid wood legs with non-slip rubber foot pads
Drawer slides (nightstands)	Side-mounted 3-section silent steel ball-bearing slides
Wood surface finish	Low-VOC matte clear nitrocellulose lacquer
Nightstand drawer bases	8mm thick high-density fiberboard with wood grain overlay
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Mattress support system	Evenly spaced wood slat platform, eliminates need for separate box spring
Nightstand storage	Two equal-height flush-front drawers per nightstand, total 4 storage drawers in set
Assembly structure	Knock-down (KD) construction with pre-drilled alignment holes
Under-bed access	170mm floor clearance allows robot vacuum access for routine cleaning
Corner safety design	Rounded smooth edges on all bed posts and nightstand corners
Set configuration options	Available as bed only, bed plus 1 nightstand, or bed plus 2 nightstands
Anti-tip protection	Matching nightstands include wall anchoring hardware
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Master bedroom application	Ideal for 18sqm domestic master bedrooms, fits king-size mattress layouts
Guest room application	Suitable for short-term rental or guest bedroom setups, durable solid wood construction
Target user group	Designed for households preferring minimalist natural wood style, no sharp edges for family use
Style matching	Pairs well with neutral-toned bedding, light wood wardrobes and fabric bedroom seating
Recommended configuration	Pair with 220 mm thick memory foam or latex mattress for optimal comfort

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725:1998	Furniture - Beds and mattresses - Safety requirements and test methods for domestic beds
EN 12521:2015	Furniture - Strength, durability and safety for domestic storage furniture (nightstands)
EN 71-3:2019	Safety of toys - Migration of certain elements, for lacquer coating surface safety

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for structural performance inspection
GB 18584-2001	Indoor decorating and refurbishing materials limit of harmful substances in wooden furniture
GB/T 39600-2021	Classification of formaldehyde emission from wood-based panels, applicable for nightstand substrates

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural performance inspection;
2. GB 18584-2001: Indoor decorating and refurbishing materials limit of harmful substances in wooden furniture;
3. GB/T 39600-2021: Classification of formaldehyde emission from wood-based panels, applicable for nightstand substrates;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WD-SPB-1800-NAT

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WD-SPB-1800-NAT

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WD-SPB-1800-NATOpen Export Tool

Quick Actions

Post an RFQ

Product Description

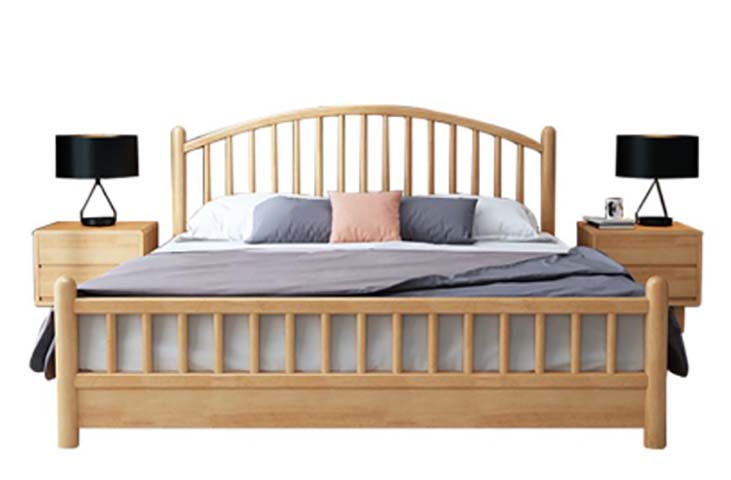

This natural solid wood Windsor spindle platform bed, paired with optional matching 2-drawer nightstands, embodies clean Scandinavian minimalism defined by timeless spindle detailing across its headboard and footboard. The bed features a gently arched headboard rising 1050mm from the floor, paired with a lower 460mm footboard, connected by smooth side rails positioned 430mm above the floor. The set offers balanced visual weight that anchors bedroom layouts without feeling bulky, with rounded edges on all bed posts and nightstand corners that deliver a soft, approachable silhouette. The bed frame, including posts, rails, headboard and footboard, is crafted from solid natural beech or rubberwood finished with a low-VOC matte clear nitrocellulose lacquer that highlights the wood’s natural grain. Its support structure uses 18 solid birch slats with reinforced edge banding, each 15mm thick, supported by 5 central solid wood legs fitted with non-slip rubber foot pads, delivering a total static load capacity of 500kg. Hardware consists of zinc-plated steel dowels and cam lock fasteners for secure connections, while included nightstands feature solid wood frames with flush wood veneer drawer fronts, 8mm thick high-density fiberboard drawer bases with wood grain overlay, and side-mounted 3-section silent steel ball-bearing slides for smooth operation. The evenly spaced slat platform removes the requirement for a separate box spring, with a support surface set 300mm from the floor sized to accommodate an 1800 x 2000mm mattress, with a recommended 220mm mattress thickness for optimal comfort. The 170mm under-bed clearance allows robot vacuum access for routine cleaning, while each nightstand includes two equal-height flush-front drawers for enclosed storage, plus wall anchoring hardware for anti-tip safety. Knock-down construction with pre-drilled alignment holes allows for a 40-minute assembly time per set. This set is ideally suited for 18sqm domestic master bedrooms supporting king-size mattress layouts, and works equally well for durable guest room or short-term rental setups. It pairs seamlessly with neutral-toned bedding, light wood wardrobes and fabric bedroom seating, designed for households seeking minimalist natural wood styling without sharp hazard edges for family use. Procurement buyers can select from bed-only, bed plus one nightstand, or bed plus two nightstand configurations, with one available natural matte finish. The set ships across 2 cartons with a total packaged gross weight of 130kg, backed by a 5-year warranty, with no box spring purchase required to complete setup.

Natural Solid Wood Windsor Spindle Platform Bed with Matching 2-Drawer Nightstands Specifications
