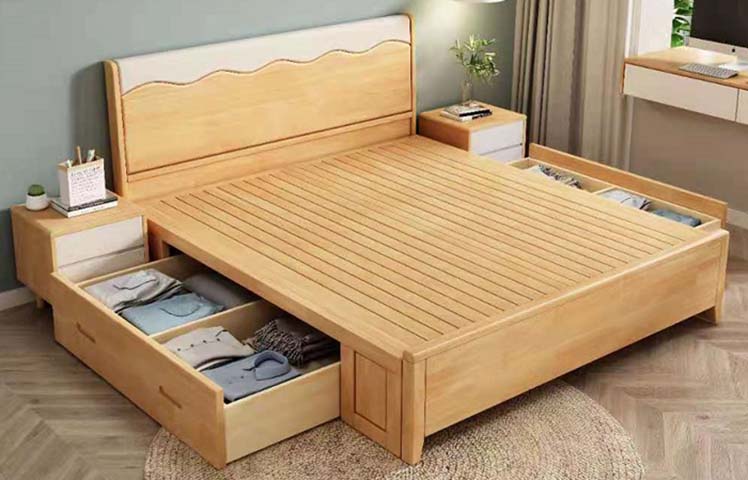

Product supplierLight Wood Storage Platform Bed with Wavy Upholstered Headboard and Pull-Out Drawers, Solid rubberwood with natural light oak finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1800 × 2000 × 1100 mm | |
|---|---|---|
| Headboard height | 1100 mm | |
| Platform sleep surface height | 400 mm | |
| Under-bed drawer internal height | 220 mm | |
| Drawer internal width (side units) | 800 mm | |
| Drawer internal width (foot units) | 850 mm | |
| Wood slat width | 70 mm | |
| Slat gap spacing | 35 mm | |
| Center support leg count | 5 units | |
| Bed leg height | 100 mm | |
| Recommended mattress thickness | 250 mm | |
| Side Rail Thickness | 40 mm | |
| Slat Spacing | 80 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total static weight capacity | 250 kg | |
|---|---|---|
| Single drawer static load capacity | 20 kg | |
| Total storage volume | 320 L | |
| Net frame weight | 120 kg | |
| Slat center static load | 180 kg | |
| Drawer slide cycle rating | 10000 open/close cycles | |
| Recommended user count | 2 adults | |
| Bed Static Load Reference | 400 kg | |
| Per-slat Load Reference | 60 kg | |
| Recommended Procurement Warranty | Frame 10 years; hardware 5 years; upholstery 2 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Bed frame main body | Solid rubberwood with natural light oak finish | |
|---|---|---|
| Headboard upholstery panel | Off-white linen fabric over 30mm high-density foam padding | |
| Headboard base panel | 18mm thick solid wood panel | |
| Sleep support slats | 12mm thick solid pine slats, sanded smooth | |
| Drawer hardware slides | Cold-rolled steel ball-bearing full-extension slides | |
| Drawer handles | Recessed solid wood integrated pulls | |
| Drawer panels | 15mm thick E0 grade plywood with wood veneer finish | |
| Frame corner connectors | Zinc-plated steel dowel and cam lock fasteners | |
| Foot pads | Non-slip PE plastic pads under legs | |
| Slat Thickness | 15 mm bent plywood or solid timber | |
| Primary Connector Specification | Reference M8-M10 bolts with at least 2 fixing points per corner | |
| Reference Finish / Color Count | Recommended 6timber/upholstery options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Under-bed storage access | 4 pull-out drawers (2 side, 2 foot) with full-extension slides | |
|---|---|---|
| Internal drawer organization | Integrated wooden dividers in each drawer | |
| Mattress support design | Closely spaced slat system with center support beams | |
| Headboard design | Wavy-edged upholstered panel | |
| Assembly method | Cam-lock knock-down assembly | |
| Ventilation design | Gaps between slats allow continuous air flow under mattress | |
| Matching furniture compatibility | Coordinating 2-drawer nightstands with matching finish | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2300× 900× 450 mm/carton in 4 cartons | |
| Reference Packaged Gross Weight | 130 kg/set | |
| Reference Packaging Volume | 0.9 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Primary application space | Master and guest bedrooms, small urban apartments | |
|---|---|---|
| Recommended matching pieces | Coordinating 2-drawer nightstands and light wood bedroom case goods | |
| Suitable mattress types | Spring, memory foam, latex and coir mattresses 250 mm thick | |
| Target user group | Residential users requiring hidden under-bed linen and clothing storage | |
| Style compatibility | Scandinavian, Japanese minimalist, modern light wood interior schemes | |
| Recommended installation location | Against wall with 1000mm clearance at side and foot for drawer access |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Bed structural strength test standard | EN 1725:1998 | |
|---|---|---|
| Furniture formaldehyde emission standard | EN 13986:2004 | |
| Hardware durability for drawer slides | EN 15338:2007 |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Wood-based panel formaldehyde limit | GB 18580 | |
|---|---|---|
| Furniture mechanical safety for beds | GB/T 3324 | |
| Upholstered furniture flame retardancy | GB 20286 |
Standardized tender description text
This product must meet the following technical requirements: 1. Wood-based panel formaldehyde limit: GB 18580; 2. Furniture mechanical safety for beds: GB/T 3324; 3. Upholstered furniture flame retardancy: GB 20286; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
