PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1980 × 2200 × 1100 mm
Overall outer dimensions	1980 x 2200 x 1100 mm
Mattress support surface height	400 mm
Headboard usable height	1000 mm
Footboard height	350 mm
Under-bed floor clearance	120 mm
Center support leg count	3
Support slat count	14
Individual slat dimensions	70 x 1800 x 25 mm
Slat spacing between adjacent pieces	70 mm
Nightstand matching dimensions	500 x 400 x 550 mm
Side Rail Thickness	40 mm
Slat Spacing	80 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static bed frame load capacity	400 kg
Single slat static load rating	30 kg
Surface abrasion resistance	500 cycles
Frame structural warranty	5 years
Hardware corrosion resistance	48 hours salt spray
Assembly required time for two people	50 minutes
Available color variant count	2
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg
Recommended Procurement Warranty	Frame 10 years; hardware 5 years; upholstery 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Frame main panels	18mm E1 grade high-density fiberboard
Headboard central panel	15mm E1 grade MDF with white matte paint finish
Headboard decorative inlay	12mm dark brown laminate geometric V panel
Support slats	25mm thick solid pine wood slats
Center support beam	30mm thick LVL engineered wood
Support legs	50mm diameter solid hardwood legs
Connecting hardware	Zinc-plated steel cam-lock bolts and brackets
Footboard panel	18mm thick light gray painted MDF
Surface finish coating	PU paint topcoat
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Mattress support system	Full slat platform base
Assembly structure	Flat-pack knock-down design
Mattress compatibility	Fits 1800x2000mm king size mattresses
Edge support	Reinforced side rail construction
Under-bed clearance utility	120mm floor gap
Noise reduction design	Pre-installed felt pads on hardware joints
Floor protection	Felt glides on all leg bases
Set configuration options	Sold as bed only, bed plus nightstands, or bed plus mattress bundle
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Bed frame shipping gross weight	85 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential master bedrooms	Designed for king-size sleeping space in modern apartment or home layouts
Guest bedrooms	Suitable for guest room use with easy-clean finish and neutral color scheme
Apartment rental staging	Neutral minimalist style fits standard furnished rental property decor
Matching bedroom sets	Coordinates with matching 2-drawer nightstand for cohesive bedroom design
Low-profile bedroom layouts	Low platform height works with rooms featuring large windows or low ceilings
Contemporary interior schemes	Gray, white and brown accent palette matches modern and light luxury decor

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 747-1:2012+A1:2015	Domestic beds and mattresses safety requirements, applicable for structural stability
EN 12521:2015	Domestic furniture strength and durability requirements for seating and sleeping furniture
EN 13986:2004+A1:2015	Wood-based panels for construction and furniture, formaldehyde emission E1 class

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for panel bed structural safety
GB 18580-2017	Formaldehyde emission limits for wood-based panels, E1 grade requirement for indoor use
GB/T 10357.6-2013	Furniture mechanical performance test for beds, static load and durability testing standard

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for panel bed structural safety;
2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, E1 grade requirement for indoor use;
3. GB/T 10357.6-2013: Furniture mechanical performance test for beds, static load and durability testing standard;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · PLT-PB-816-1800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · PLT-PB-816-1800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · PLT-PB-816-1800Open Export Tool

Quick Actions

Post an RFQ

Product Description

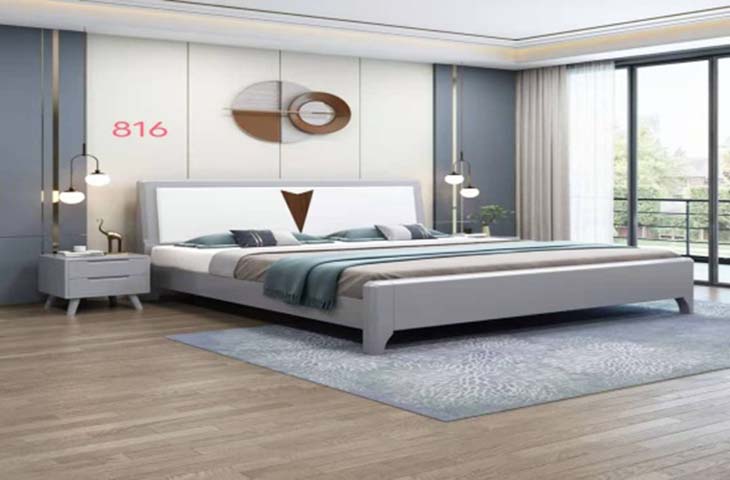

The Modern Low-Profile Panel Platform Bed with Geometric Inlay Headboard, model PLT-PB-1800from an unbranded line, features a streamlined minimalist silhouette defined by clean panel construction and intentional geometric detailing. The headboard pairs a white matte painted central panel with a dark brown laminate geometric V-shaped inlay, while the light gray painted footboard creates a balanced neutral palette of gray, white, and warm brown accents that aligns with contemporary design sensibilities. The low-profile frame sits at a mattress support height of 400mm, with a 1000mm usable headboard height, 350mm footboard, and 120mm under-bed floor clearance, creating an open, unobtrusive visual presence that does not block sightlines in compact spaces. Constructed for durable daily use, the frame uses E1 grade high-density fiberboard and MDF panels with a PU paint topcoat, paired with 14 solid pine support slats, a thick LVL engineered wood center beam, three center support legs, solid hardwood legs, and zinc-plated steel cam-lock hardware. Joints are fitted with pre-installed felt pads to reduce operational noise, and all leg bases include felt glides to protect finished flooring. Hardware meets 48-hour salt spray corrosion resistance standards, the surface withstands 500 abrasion cycles, and the frame carries a 5-year structural warranty, with a total static load capacity of 400kg. The full slat platform base eliminates the need for a separate box spring, accommodates 1800x2000mm king size mattresses, and features reinforced side rails for consistent edge support. The knock-down flat-pack design ships across multiple cartons, with two-person assembly completed in 50 minutes, and is offered in 2 color variants. This bed is well suited for residential master bedrooms in modern homes or apartments, particularly rooms with low ceilings or large windows where its low profile preserves open views. It works equally well in guest bedrooms thanks to its easy-clean finish, for furnished apartment staging to align with standard neutral decor schemes, and as a core piece for coordinated bedroom sets paired with its matching 2-drawer nightstand. When procuring, confirm the selected color variant matches existing interior palettes, account for total packaged weight and delivery access for multi-carton shipments, and allocate appropriate assembly time to ensure proper setup for long-term use.

Modern Low-Profile Panel Platform Bed with Geometric Inlay Headboard Specifications
