Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions (W x D x H) | 1890 x 2120 x 900 mm | |
|---|---|---|
| Compatible mattress size | 1800 x 2000 mm | |
| Headboard height from floor | 900 mm | |
| Side/foot rail height from floor | 300 mm | |
| Internal storage cavity depth | 300 mm | |
| Under-frame floor clearance | 180 mm | |
| Slat thickness | 19 mm | |
| Slat spacing gap | 30 mm | |
| Headboard panel thickness | 30 mm | |
| Side rail panel thickness | 25 mm | |
| Gas strut extended length | 1200 mm | |
| Lifted platform maximum opening angle | 90° | |
| Nightstand dimensions (matching, each) | 450 x 400 x 500 mm | |
| Side Rail Thickness | 40 mm | |
| Slat Spacing | 80 mm | |
| Center Support Leg Count | Recommended 6legs |
Net weight / load capacity / users / durability
| Total static load capacity (mattress + users) | 590 kg | |
|---|---|---|
| Gas strut lift force per pair | 600 N | |
| Internal storage volume | 1000 L | |
| Mattress thickness compatibility | 350 mm | |
| Net product weight (bed frame only) | 120 kg | |
| Slat center support count | 3 | |
| Total slat count | 26 | |
| Surface finish abrasion resistance | 10000 rub cycles | |
| Gas strut cycle life | 10000 open/close cycles | |
| Warranty period | 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
| Bed frame outer panels | Solid rubberwood with dark walnut matte lacquer finish | |
|---|---|---|
| Headboard panel | Angled solid hardwood with rounded edge profile | |
| Mattress support slats | Solid pine lumber, sanded smooth, no sharp edges | |
| Internal storage box base | 19mm hardwood plywood with moisture-resistant laminate | |
| Gas lift hardware brackets | 3mm thick powder-coated black steel, anti-corrosion treated | |
| Support legs | Solid wood block legs, dark walnut finish matching frame | |
| Hinge assembly | Zinc-plated steel full-length hinges at head end of platform | |
| Drawer components (matching nightstands) | Dovetail joint solid wood drawers with soft-close slides | |
| Finish coating | Low-VOC matte nitrocellulose lacquer, scratch-resistant top coat | |
| Slat Thickness | 15 mm bent plywood or solid timber | |
| Primary Connector Specification | Reference M8-M10 bolts with at least 2 fixing points per corner | |
| Reference Finish / Color Count | Recommended 6timber/upholstery options |
Adjustment / rotation / tilt / mobility / storage features

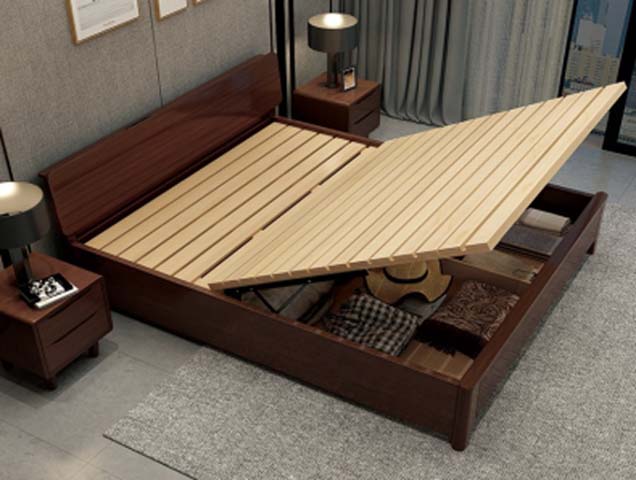

| Under-bed storage access | Full slat platform lifts via dual gas struts from foot end, holds open at 90° | |
|---|---|---|
| Gas lift safety feature | Integrated anti-drop lock prevents unintended platform closure during access | |
| Soft-close damping | Hydraulic buffer slows platform descent to prevent slamming and finger injury | |
| Mattress support function | Closely spaced solid slats eliminate need for separate box spring | |
| Storage compartment design | Uninterrupted full-width cavity without internal dividers for bulky linen storage | |
| Assembly requirement | Knock-down assembly with included hex key hardware and instructions | |
| Position stability | Center support beam eliminates slat sagging under repeated mattress load | |
| Noise reduction feature | Felt pads between slats and frame prevent squeaking during use | |
| Mattress retention | Raised rail edges prevent mattress sliding during platform lift operation | |
| Color option availability | 3 finish options: dark walnut, cherry, white oak | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2300× 900× 450 mm/carton in 4 cartons | |
| Reference Packaged Gross Weight | 130 kg/set | |
| Reference Packaging Volume | 0.9 m³/set |
Recommended spaces / users / usage modes
| Primary application space | Domestic main bedroom for queen size mattress setups | |
|---|---|---|
| Target user | Urban residents requiring hidden bulky storage for linens, bedding and off-season clothing | |
| Recommended configuration | Pair with two matching 2-drawer dark walnut nightstands and 300 mm thick spring mattress | |
| Style compatibility | Works with mid-century modern, Scandinavian, and contemporary walnut-toned bedroom decor | |
| Suitable room size | Minimum 10 m² bedroom area with 600mm clearance around bed sides for access | |
| Use restriction | Not recommended for mattresses thicker than 350mm which may interfere with lift operation |
EU Market Access Requirements* EN Standards
| EN 747:2012+A1:2015 | Furniture - bunk beds and domestic beds - safety requirements and test methods | |
|---|---|---|
| EN 12521:2015 | Furniture - strength, durability and safety requirements for domestic seating and beds | |
| EN 16122:2012 | Domestic and non-domestic storage furniture - test methods for strength and durability |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applies to frame dimensional and finish standards | |
|---|---|---|
| GB 18584-2001 | Indoor decorating and refurbishing materials - limit of harmful substances for wood furniture | |
| GB/T 10357.6-2013 | Test of mechanical properties of furniture - strength and durability of storage units | |
| GB/T 28202-2011 | Furniture hardware - general requirements for hinges and lift mechanisms |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applies to frame dimensional and finish standards; 2. GB 18584-2001: Indoor decorating and refurbishing materials - limit of harmful substances for wood furniture; 3. GB/T 10357.6-2013: Test of mechanical properties of furniture - strength and durability of storage units; 4. GB/T 28202-2011: Furniture hardware - general requirements for hinges and lift mechanisms; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
