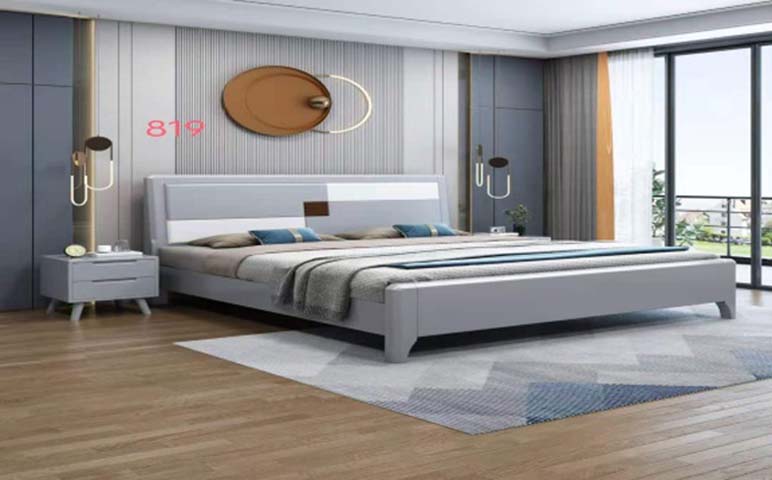

Product supplierModern Color-Block Low-Profile Panel Platform Bed, E0 grade engineered wood panel with high-gloss light grey lacquer
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1800 × 2200 × 1100 mm | |
|---|---|---|
| mattress compatible size | 1800 x 2000 mm | |
| sleeping surface height | 450 mm | |
| headboard height above platform | 650 mm | |
| footboard/side rail height | 400 mm | |
| under-bed clearance | 120 mm | |
| headboard panel thickness | 25 mm | |
| side rail thickness | 30 mm | |
| bed leg height at cutout | 120 mm | |
| mattress recess depth | 50 mm | |
| Slat Spacing | 80 mm | |
| Center Support Leg Count | Recommended 6legs |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| total static load capacity | 400 kg | |
|---|---|---|
| number of support slats | 18 | |
| slat spacing | 50 mm | |
| center support beam count | 3 | |
| net weight | 100 kg | |
| finish abrasion resistance | 2000 cycles | |
| warranty period | 3 years | |
| Bed Static Load Reference | 400 kg | |
| Per-slat Load Reference | 60 kg | |
| Recommended Procurement Warranty | Frame 10 years; hardware 5 years; upholstery 2 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| headboard panel | E0 grade engineered wood panel with high-gloss light grey lacquer | |
|---|---|---|
| headboard inlay accents | White and walnut-brown lacquered panel inserts | |
| side rails and footboard | 25mm thick engineered wood with matching light grey lacquer | |
| support slats | 15mm thick solid pine wood slats | |
| support framework | 30x50mm cold-rolled steel center beams | |
| connecting hardware | Zinc-plated steel cam locks and bolts | |
| foot pads | Non-slip PE plastic floor protection pads | |
| surface finish | UV-cured scratch-resistant lacquer | |
| Slat Thickness | 15 mm bent plywood or solid timber | |
| Primary Connector Specification | Reference M8-M10 bolts with at least 2 fixing points per corner | |
| Reference Finish / Color Count | Recommended 6timber/upholstery options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| mattress support | Fixed slat platform eliminates need for box spring | |
|---|---|---|
| assembly structure | Knock-down assembly with cam-lock connections | |
| under-bed access | 120mm floor clearance allows robotic vacuum cleaning | |
| mattress retention | Raised perimeter lip prevents mattress lateral sliding | |
| headboard design | Vertical flat panel with color-block inlays, no recline mechanism | |
| bed leg design | Integrated curved cutout legs with no separate feet | |
| set compatibility | Designed to match two-drawer angled-leg nightstands | |
| noise reduction | Slat anti-slip padding eliminates metal-on-wood squeak | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| shipping volume | 1.6 cbm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2300× 900× 450 mm/carton in 4 cartons | |
| Reference Packaged Gross Weight | 130 kg/set | |
| Reference Packaging Volume | 0.9 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| primary application | Residential master bedrooms | |
|---|---|---|
| style matching | Modern minimalist and contemporary interior schemes | |
| mattress compatibility | Fits 300 mm thick spring, memory foam, or latex mattresses | |
| suite configuration | Pairs with matching two-drawer nightstands and wardrobes | |
| user suitability | Adult residential use for two sleepers | |
| cleaning access | Open under-bed clearance supports routine robotic vacuum cleaning | |
| placement requirement | Positioned against wall for headboard support |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| domestic bed safety | EN 747:2012+A1:2015 | |
|---|---|---|
| wood-based panel formaldehyde | EN 13986:2004+A1:2015 |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| panel formaldehyde emission | GB/T 17657 | |
|---|---|---|
| furniture structural safety | GB/T 3324 | |
| surface coating durability | GB/T 4893.4 |
Standardized tender description text
This product must meet the following technical requirements: 1. panel formaldehyde emission: GB/T 17657; 2. furniture structural safety: GB/T 3324; 3. surface coating durability: GB/T 4893.4; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
