PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1650 × 2160 × 1170 mm
Floor to top of slat platform height	305 mm
Under-bed floor clearance	254 mm
Headboard total height	1170 mm
Headboard upholstered panel thickness	80 mm
Side rail thickness	30 mm
Low-profile footboard height	350 mm
Corner angled leg height	254 mm
Slat support spacing	70 mm
Recommended maximum mattress thickness	356 mm
Headboard vertical wood post width	65 mm
Footboard rail thickness	30 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static weight capacity	363 kg
Product net weight	61 kg
Slat static load per unit	50 kg
Recommended number of users	2
Surface finish abrasion resistance	10000 rub cycles
Upholstery fabric abrasion resistance	30000 double rubs
Headboard foam density	28 kg/m³
Limited warranty period	3 years
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Bed frame, rails, posts and legs	Solid natural light oak-tone rubberwood with matte clear finish
Headboard upholstery outer layer	Off-white linen-blend woven fabric
Headboard internal padding	28kg/m³ high-resilience polyurethane foam
Support slat system	15mm thick solid birch wood slats with center metal support beam
Corner leg construction	Angled tapered solid wood legs with reinforced metal screw inserts
Headboard tufting hardware	Hidden fabric-covered buttons with internal tie anchoring
Connecting hardware	Zinc-plated steel bolts, barrel nuts and lock washers
Footboard and side rail finish	Low-VOC matte clear water-based lacquer
Under-bed center support leg	25mm diameter solid wood support leg with non-slip rubber foot
Back of headboard panel	12mm thick MDF backer board for upholstery attachment
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Mattress support	Integrated wood slat platform eliminates need for separate box spring
Headboard function	Tufted padded panel provides cushioned back support for seated reading in bed
Under-bed access	254mm open clearance allows storage bins and cleaning access under the frame
Assembly requirement	Knockdown assembly with included hex key and hardware, two-person assembly recommended
Mattress fitment	Compatible with 1524mm x 2032mm queen size innerspring, memory foam or latex mattresses
Noise reduction	Slat attachment points include non-slip rubber pads to minimize squeaking during use
Headboard attachment	Fixed bolt-on mounting to side rails with no height adjustment
Floor protection	All leg bases include non-marking felt pads to prevent hardwood floor scratching
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary application space	Residential master or guest bedrooms, matching Nordic and minimalist interior design schemes
Target user group	Adult homeowners and renters seeking a sturdy, low-profile sleeping platform without box spring requirements
Recommended pairing	Matches 2-drawer light wood nightstands of 550mm height, placed symmetrically on both sides of headboard
Floor surface compatibility	Suitable for hardwood, laminate, tile and carpeted bedroom floors with included felt leg pads
Recommended room size	Minimum 3m x 3.6m bedroom space to allow 700mm clearance on both sides and foot of bed
Style compatibility	Coordinates with Scandinavian, Japandi, modern farmhouse and contemporary bedroom furniture collections

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725:1998	Domestic furniture - Beds and mattresses - Safety requirements and test methods, applicable to structural stability and edge safety

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to solid wood frame durability and finish performance
GB 18584-2001	Limit of harmful substances in wooden furniture, applicable to formaldehyde emission from wood panels and coatings

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to solid wood frame durability and finish performance;
2. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable to formaldehyde emission from wood panels and coatings;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · PLAT-QN-LWOOD-TFT-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · PLAT-QN-LWOOD-TFT-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · PLAT-QN-LWOOD-TFT-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

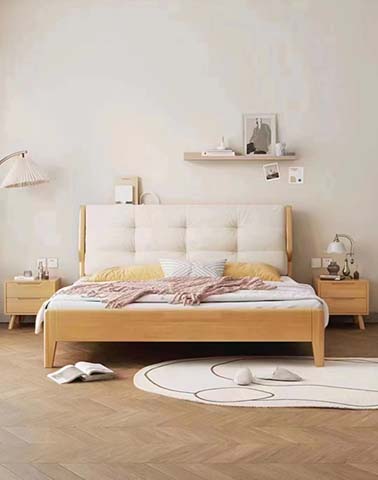

This queen size light wood upholstered tufted platform bed features a clean Nordic minimalist silhouette defined by a low-profile structure, angled tapered solid wood legs, and a streamlined low-rise footboard. The design centers on a tall, softly tailored tufted headboard paired with straight, slender side rails, creating an open, uncluttered visual presence that avoids excessive ornamentation while maintaining refined textural contrast between wood and fabric surfaces.
The frame, rails, posts, and legs are crafted from solid natural light oak-tone rubberwood finished with a low-VOC matte clear water-based lacquer that preserves the wood’s subtle natural grain. The headboard is upholstered in an off-white linen-blend woven fabric, padded with high-resilience polyurethane foam, and accented with hidden fabric-covered button tufting secured with internal tie anchoring for a smooth, tailored finish. The support structure relies on thick solid birch wood slats paired with a center metal support beam and additional solid wood center support leg fitted with a non-slip rubber foot; all connection points use zinc-plated steel bolts, barrel nuts, and lock washers, while slat attachment points include non-slip rubber pads to reduce operational noise. Corner legs feature reinforced metal screw inserts for long-term structural stability, and felt pads are included to protect finished floor surfaces.
Functionally, the integrated wood slat platform removes the need for a separate box spring, supporting standard queen size innerspring, memory foam, or latex mattresses. The padded tufted headboard offers cushioned back support for seated reading, while the open under-bed clearance accommodates storage bins and allows easy access for routine floor cleaning. The bed arrives as a knockdown set delivered in multiple cartons, with all required hardware and a hex key included; two-person assembly is recommended, with a typical assembly time of 40 minutes per unit.
This bed is ideally suited for residential master or guest bedrooms aligned with Scandinavian, Japandi, modern farmhouse, or contemporary design schemes, and works seamlessly across hardwood, laminate, tile, and carpeted floors. It pairs naturally with matching light wood two-drawer nightstands positioned symmetrically on either side of the headboard, and is sized to fit rooms that allow clear circulation space around the frame. For procurement, buyers should note the packaged weight and multi-carton shipping profile, confirm compatibility with standard queen mattress dimensions, and account for the recommended two-person assembly process when planning delivery and setup. The unbranded model is tailored to adult homeowners and renters seeking a sturdy, streamlined sleeping surface that eliminates the added cost and bulk of a separate box spring.

Queen Size Light Wood Upholstered Tufted Platform Bed Specifications
