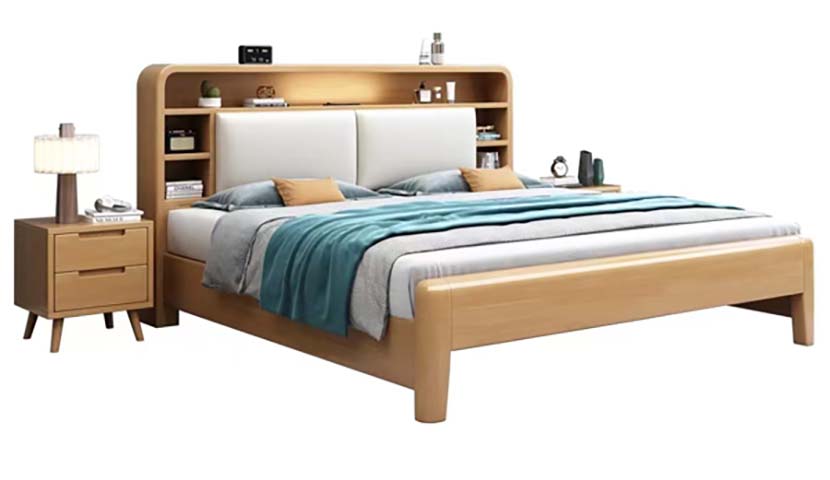

Name: Light Oak Upholstered Platform Bed with Integrated Bookshelf Headboard
Brand: Zhenxi Muye
SKU: TZR3Q9

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1860 × 2200 × 1170 mm
Mattress support platform height	280 mm
Under-bed ground clearance	280 mm
Headboard upholstered panel width	1650 mm
Headboard shelf depth	200 mm
Footboard height	420 mm
Support leg cross-section	60 x 60 mm
Wood slat thickness	25 mm
Slat spacing	70 mm
Side storage cubby width	200 mm
Top headboard shelf height	180 mm
Side Rail Thickness	40 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static load capacity	320 kg
Net product weight	65 kg
Recommended mattress thickness	250 mm
Supported user count	2 adults
Upholstery abrasion resistance	30000 cycles
Backrest foam density	35 kg/m³
Foam rebound rate	45%
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg
Recommended Procurement Warranty	Frame 10 years; hardware 5 years; upholstery 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Bed frame structure	Solid rubberwood frame with light oak clear finish
Headboard upholstery	Linen-blend woven fabric off-white covering
Headboard padding	High-resilience polyurethane foam core
Support legs	Solid tapered rubberwood legs, 4 corner units
Slat support system	Solid pine wood slat kit with center support beam
Shelf panels	Medium-density fiberboard with wood veneer finish
Hardware fasteners	Zinc-plated steel connector bolts and dowels
Edge treatment	Rounded 15mm radius bullnose edges on all frame/headboard parts
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Headboard open storage	3-tier cubby system with full-width top shelf and side shelves
Mattress retention	Raised perimeter frame lip prevents mattress sliding
Box spring compatibility	Slat support eliminates requirement for separate box spring
Under-bed access	Full open 280mm clearance for cleaning and under-bed storage
Seated back support	Dual upholstered padded panels support upright sitting in bed
Knock-down assembly	Flat-pack construction with included hardware for home assembly
Nightstand alignment	Frame leg position leaves clearance for standard 2-drawer nightstands
Noise reduction	Tight-fitting slat mounts minimize squeaking during use
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential master bedroom	Suits 18sqm primary bedrooms for double adult occupancy
Nordic/Japandi style interiors	Light wood finish and soft upholstery match minimalist neutral decor
Small apartment bedrooms	Open under-bed clearance maximizes usable storage space
Home leisure use	Padded headboard supports reading or screen use while seated in bed
Guest bedroom furnishing	Durable neutral design works for frequent guest accommodation
Youth/teen bedrooms	Rounded edges and built-in storage suit multi-use bedroom spaces

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725:2012	Furniture – Beds and mattresses – Safety requirements and test methods
EN 1022:2018	Domestic furniture – Seating and beds – Determination of stability

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for frame structuralAcceptance inspection
GB/T 16799-2008	Upholstered furniture leather/fabric performance requirements for headboard upholstery
GB 18584-2001	Indoor decorating material limit of harmful substances for wood furniture

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for frame structuralAcceptance inspection;
2. GB/T 16799-2008: Upholstered furniture leather/fabric performance requirements for headboard upholstery;
3. GB 18584-2001: Indoor decorating material limit of harmful substances for wood furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · BED-PLT-LTOK-1800-SHFH

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · BED-PLT-LTOK-1800-SHFH

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · BED-PLT-LTOK-1800-SHFHOpen Export Tool

Quick Actions

Post an RFQ

Product Description

The Light Oak Upholstered Platform Bed with Integrated Bookshelf Headboard from Zhenxi Muye, model BED-PLT-LTOK-1800-SHFH, blends Nordic and modern minimalist design with functional storage for residential use. Its visual profile balances warm light oak clear finishes, soft off-white linen-blend woven upholstery, and clean, streamlined lines. Tapered solid rubberwood legs frame the structure, while all frame and headboard components feature 15mm radius rounded bullnose edges for a soft, approachable silhouette. The headboard integrates dual padded backrest panels and a 3-tier open cubby storage system, with a full-width top shelf and side shelves that sit flush with the bed’s overall 1860 x 2200 x 1170 mm footprint, creating a balanced, uncluttered layout that pairs seamlessly with standard 2-drawer nightstands positioned alongside the frame. The bed is built on a solid rubberwood frame, supported by four 60 x 60 mm cross-section tapered rubberwood corner legs and a center support beam holding a slat system of solid pine and bent plywood. The headboard pads use high-resilience polyurethane foam with a density of 35 kg/m³ and 45% rebound rate, wrapped in abrasion-resistant linen-blend fabric tested to 30000 abrasion cycles. Shelf panels are constructed from medium-density fiberboard with a wood veneer finish, and all connections use zinc-plated steel connector bolts and dowels for lasting structural stability. The platform supports a total static load of 320 kg, with a net weight of 65 kg. Designed for two adult users, the bed features a raised perimeter lip to prevent mattress slippage, and its slat support system removes the need for a separate box spring, accommodating mattresses 250 mm thick. The 280 mm full open under-bed clearance allows easy cleaning and flexible under-bed storage, while the 280 mm platform height offers comfortable bed entry and exit. The dual padded headboard panels provide upright seated support for reading or leisure screen use, and the headboard’s 200 mm deep open shelves keep books, devices, and decor within easy reach. This model is well-suited for 18 sqm residential master bedrooms, small apartment bedrooms where space optimization is a priority, guest rooms requiring durable neutral furnishings, and youth or teen bedrooms where soft rounded edges and built-in storage add practical value. Its light wood finish and neutral upholstery complement Nordic and Japandi style minimalist neutral interiors. For procurement, note the product ships in flat-pack form across multiple cartons, with a total packaged gross weight of 130 kg per set and total packaging volume of 0.9 m³. Included hardware supports home assembly, with an assembly time of 40 minutes per set, and no additional box spring purchase is required for installation.
