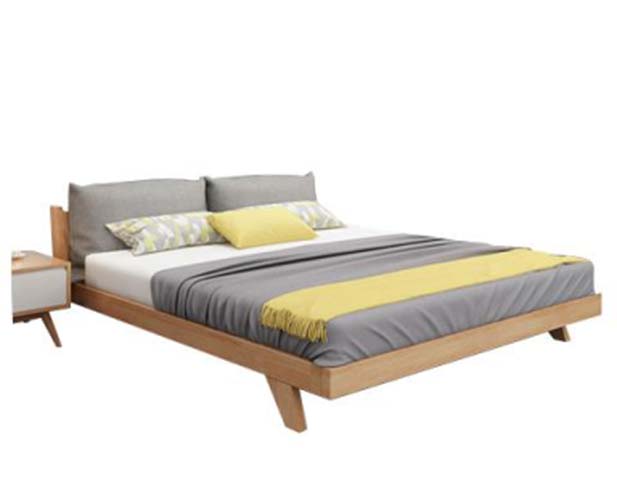

Product supplierLight Oak Low-Profile Platform Bed with Grey Split Upholstered Headboard Cushions and Matching Nightstand, Solid light oak/rubberwood with natural matte finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1880 × 2230 × 1000 mm | |
|---|---|---|
| Recommended mattress size | 1800 x 2000 mm | |
| Under-bed clearance | 230 mm | |
| Headboard cushion height | 500 mm | |
| Headboard cushion thickness | 120 mm | |
| Frame rail thickness | 40 mm | |
| Support slat thickness | 20 mm | |
| Slat spacing | 70 mm | |
| Support leg height | 230 mm | |
| Attached nightstand dimensions (W×D×H) | 450 x 400 x 550 mm | |
| Mattress retainer lip height | 50 mm | |
| Total slat count | 14 | |
| Side Rail Thickness | 40 mm | |
| Center Support Leg Count | Recommended 6legs |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total static load capacity | 360 kg | |
|---|---|---|
| Center support leg count | 3 | |
| Product net weight | 85 kg | |
| Recommended mattress thickness | 350 mm | |
| Upholstery fabric abrasion resistance | 30000 double rubs | |
| Foam padding density (headboard) | 35 kg/m³ | |
| Foam rebound rate (headboard) | 45% | |
| Frame connector size | 8 mm diameter confirmat screws | |
| Bed Static Load Reference | 400 kg | |
| Per-slat Load Reference | 60 kg |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Main frame and rails | Solid light oak/rubberwood with natural matte finish | |
|---|---|---|
| Headboard structural panel | 15mm thickness multilayer plywood | |
| Headboard upholstery | Grey linen-blend woven fabric | |
| Headboard cushion filling | High-resilience polyurethane foam | |
| Support slats | Solid pine/birch wood slats | |
| Support legs | Solid angled tapered hardwood, natural finish | |
| Attached nightstand top | Solid wood matching bed frame finish | |
| Nightstand front panel | Matte off-white painted MDF | |
| Assembly hardware | Zinc-plated steel confirmat screws and barrel nuts | |
| Slat Thickness | 15 mm bent plywood or solid timber | |
| Primary Connector Specification | Reference M8-M10 bolts with at least 2 fixing points per corner | |
| Reference Finish / Color Count | Recommended 6timber/upholstery options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Support system | Full slat platform, no box spring required | |
|---|---|---|
| Headboard function | Two removable split cushions for back support while sitting upright in bed | |
| Mattress retention | Raised perimeter rail lip prevents lateral mattress movement during use | |
| Assembly design | Knock-down flat-pack construction with pre-drilled holes | |
| Under-bed access | Open clearance space allows regular cleaning and limited low-profile storage | |
| Nightstand integration | Fixed-position left-side attached nightstand for bedside storage | |
| Leg stability | Splayed angled leg geometry increases frame footprint for anti-wobble performance | |
| Cushion attachment | Hook-and-loop fasteners secure headboard cushions to wood back panel | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2300× 900× 450 mm/carton in 4 cartons | |
| Reference Packaged Gross Weight | 130 kg/set | |
| Reference Packaging Volume | 0.9 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Primary application space | Residential master bedrooms, Scandinavian or Japanese minimalist interior styles | |
|---|---|---|
| Target user group | Adult couples seeking low-profile modern bedroom furniture without box spring requirement | |
| Recommended matching pieces | Matching low-profile dressers, wall-mounted bedside lighting, neutral-tone bedding | |
| Room size requirement | Minimum 10 sq.m bedroom area for comfortable placement with nightstands and walking clearance | |
| Mattress pairing recommendation | All-foam, latex, or hybrid mattresses 300 mm thickness for optimal height | |
| Cleaning and maintenance | Open under-bed clearance compatible with standard robot vacuum cleaners | |
| Set configuration option | Can be specified with 1 or 2 matching nightstands for symmetrical bedroom layouts |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1725:1998 | Domestic furniture, beds and mattresses, safety and strength performance requirements | |
|---|---|---|
| EN 1022:2018 | Domestic furniture, seating and beds, stability test methods | |
| EN 13450:2002 | Furniture hardware, fasteners for knock-down furniture, performance requirements |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to solid wood frame construction | |
|---|---|---|
| GB 18584-2001 | Indoor decoration material, limit of harmful substances in wooden furniture, formaldehyde emission requirement | |
| GB/T 1952.2-2011 | General technical requirements for upholstered furniture, mattresses and soft bed components | |
| GB 28007-2011 | Safety requirements for children's and adult bedroom furniture structural stability |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to solid wood frame construction; 2. GB 18584-2001: Indoor decoration material, limit of harmful substances in wooden furniture, formaldehyde emission requirement; 3. GB/T 1952.2-2011: General technical requirements for upholstered furniture, mattresses and soft bed components; 4. GB 28007-2011: Safety requirements for children's and adult bedroom furniture structural stability; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
