PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3240 × 1650 × 980 mm
Overall set dimensions (4-seat sofa + ottoman)	3240 x 1650 x 980 mm
Matching armchair dimensions	1200 x 920 x 800 mm
Ottoman/chaise footrest dimensions	850 x 850 x 450 mm
Standard seat height from floor	450 mm
Seat depth per seating position	650 mm
Backrest total height from seat surface	530 mm
Solid wood armrest width	120 mm
Wood frame leg cross-section	60 x 60 mm
Seat cushion thickness	180 mm
Backrest cushion thickness	120 mm
Clearance under sofa frame from floor	120 mm
Back Cushion Thickness	160 mm
Leg Height / Floor Clearance	160 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total set net weight	220 kg
Per-seat static load capacity	150 kg
Seat cushion foam density	45 kg/m³
Latex comfort layer thickness	40 mm
Fabric upholstery abrasion resistance	20000 cycles
Seat foam rebound rate	60%
Overall seating capacity	5 persons
Solid wood frame warranty period	10 years
Fabric upholstery warranty period	3 years
Seat Foam Density / Rebound	40 kg/m³ / 60%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Main structural frame	FAS-grade light ash solid wood
Seat and back cushion fill	High-density polyurethane foam + top latex layer
Upholstery fabric	300gsm removable linen-blend fabric
Frame surface finish	Clear matte wood wax oil
Seat support base	80mm wide elastic webbing grid
Modular connection hardware	Zinc-plated steel connecting brackets
Frame corner reinforcement	Triangular solid wood corner blocks
Seam stitch specification	8 stitches per inch
Throw pillow fill	3D hollow polyester fiberfill
Under-seat dust cover	Black non-woven fabric lining
Timber Frame Section / Moisture	Primary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing Specification	Sinuous spring wire 4 mm; elastic webbing 70 mm wide

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cushion cover design	Zippered removable cushion covers
Modular configuration	Fixed L-shape with repositionable ottoman
Seat support design	No-sag elastic webbing suspension
Armrest function	Wide solid wood armrests
Elevated frame design	120mm floor clearance
Combination flexibility	Expandable with additional matching seat units
Surface protection	Smooth wood finish with rounded edges
Cushion Service Configuration	Recommended 2removable/replaceable cushion methods

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Module Carton Dimensions	2200× 1050× 850 mm
Reference Packaging Volume	1.8 m³/item
Reference Packaged Gross Weight	110 kg/item

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary application space	Medium to large residential living rooms
Target user group	Households preferring natural Nordic/Japanese interior style
Recommended supporting furniture	Matching solid wood coffee table and side end tables
Suitable use case	Daily family leisure, guest reception and casual seating
Recommended floor placement	Positioned on low-pile living room area rugs
Climate suitability	Suitable for year-round indoor use in temperate residential environments

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Furniture stability requirement	EN 12520:2015
Fabric upholstery flammability	EN 1021:2014
Surface finish durability	EN 12720:2009+A1:2013

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Frame safety requirement	GB/T 3324
Upholstery durability requirement	GB/T 2012
Formaldehyde emission limit	GB 18584

Standardized tender description text

This product must meet the following technical requirements:
1. Frame safety requirement: GB/T 3324;
2. Upholstery durability requirement: GB/T 2012;
3. Formaldehyde emission limit: GB 18584;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LSO-WF-5P-LB-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LSO-WF-5P-LB-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LSO-WF-5P-LB-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

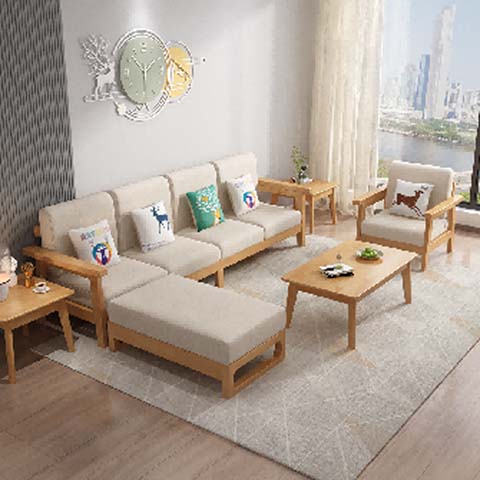

The Light Oak Wood Frame Beige Fabric 5-Piece Living Room Sectional Sofa Set, model LSO-WF-5P-LB-01, is an unbranded residential seating solution crafted to align with natural Nordic and Japanese interior design preferences. Its visual profile features warm, light-toned wood framing paired with soft neutral beige upholstery, arranged in a fixed L-shape layout anchored by a 4-seat sofa, a matching standalone armchair, and a repositionable ottoman that can adjust to function as a chaise footrest as needed. Clean, rounded wood edges and a matte clear finish lend a calm, uncluttered aesthetic suited to relaxed living spaces.
The set is built on an FAS-grade light ash solid wood frame, reinforced with triangular solid wood corner blocks and zinc-plated steel connecting brackets for structural integrity. Frame legs have a 60 by 60 mm cross-section, finished with clear matte wood wax oil to highlight the natural wood grain, and support 120 mm wide solid wood armrests. Seat bases use an 80 mm wide no-sag elastic webbing grid, topped with cushions filled with high-density 45 kg/m³ polyurethane foam and a 40 mm latex comfort layer that delivers a 60% rebound rate. Upholstery uses 300gsm removable linen-blend fabric rated for 20000 abrasion cycles, with zippered cushion covers that simplify routine care. Seams are stitched to 8 stitches per inch, and coordinating throw pillows are filled with 3D hollow polyester fiberfill.
With a total 5-person seating capacity, each position supports 150 kg of static load, with a 450 mm standard seat height, 650 mm seat depth, and 530 mm backrest height measured from the seat surface for comfortable support during daily family leisure, guest reception, and casual seating. The 120 mm floor clearance eases routine floor cleaning underneath the frame, and the modular design supports expansion with additional matching seat units for evolving layout needs.
This set is sized for medium to large residential living rooms, recommended for placement on low-pile area rugs paired with matching solid wood coffee tables and side end tables, and suitable for year-round indoor use in temperate residential environments. When procuring, note the set ships in 2 cartons, requires 40 minutes of assembly per unit, and cannot be reconfigured out of its fixed L-shape beyond ottoman repositioning, so initial layout planning should account for its full 3240 x 1650 x 980 mm footprint alongside the separate 1200 x 920 x 800 mm armchair to ensure proper space fit.

Light Oak Wood Frame Beige Fabric 5-Piece Living Room Sectional Sofa Set Specifications
