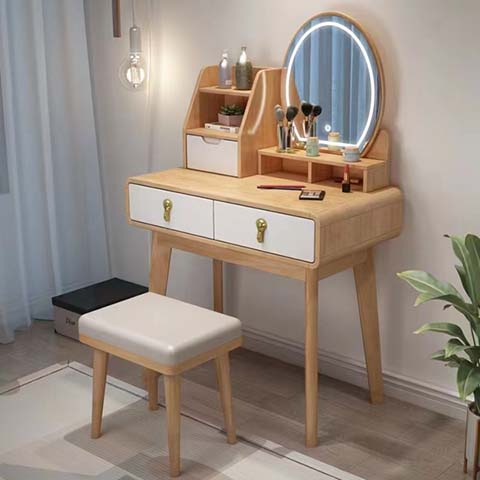

Product supplierLight Wood LED Oval Mirror Vanity Table Set with Upholstered Stool, 15mm E1 grade MDF with natural oak-look matte laminate
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 800 × 450 × 1340 mm | |
|---|---|---|
| Overall set dimensions | 800 x 450 x 1340 mm | |
| Tabletop working surface height | 750 mm | |
| Knee clearance under table | 620 mm height x 450 mm width x 380 mm depth | |
| Oval LED mirror dimensions | 450 mm width x 540 mm height | |
| Lower front drawer dimensions (each) | 360 mm width x 120 mm height x 350 mm depth | |
| Upper left storage drawer dimensions | 300 mm width x 100 mm height x 200 mm depth | |
| Stool seat padding thickness | 50 mm | |
| Leg diameter (table and stool) | 40 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Tabletop static load capacity | 30 kg | |
|---|---|---|
| LED lighting operational lifespan | 30000 hours | |
| Total set net weight | 24 kg | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ | |
| Upholstery Thickness / Abrasion Reference | 1.4 mm / 50000 cycles | |
| Five-star Base Static Load Reference | Acceptance target ≥120 kg; chair reference load 150 kg | |
| Caster Rolling Durability Reference | Acceptance target 30000 cycles | |
| Gas-lift Cycling Reference | Acceptance target 100000 cycles | |
| Upholstery Seam Pitch | 4 mm |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Table frame and carcass | 15mm E1 grade MDF with natural oak-look matte laminate | |
|---|---|---|
| Table and stool legs | Solid rubberwood with clear lacquer natural finish | |
| Drawer fronts | 12mm MDF with matte white paint finish | |
| Drawer hardware | Brass-finish zinc alloy latch pulls, metal slide rails | |
| Mirror panel | 5mm tempered clear glass with integrated LED ring light | |
| Stool upholstery | 0.8mm matte PU leather cover over high-density foam | |
| Stool internal frame | 12mm plywood seat base with solid wood leg supports | |
| Surface coating | UV anti-yellow scratch-resistant matte lacquer | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame | |
| Gas-lift Engineering Specification | Recommended Class 4; outer tube 50 mm; stroke 100 mm | |
| Tilt Mechanism Plate Thickness | 2.5 mm cold-rolled steel |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| LED mirror operation | 3-color dimmable cool/neutral/warm light via touch sensor | |
|---|---|---|
| Storage configuration | 2 lower table drawers, 1 upper left drawer, 4 open cubbies for cosmetics | |
| Drawer operation | Pull-open storage with smooth metal slides, no soft-close mechanism | |
| Stool storage | Fully tucks under tabletop to save floor space when not in use | |
| Assembly requirement | Knock-down assembly with included hex key and hardware | |
| Mirror mounting | Fixed rear-mounted oval mirror aligned to seated eye level | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential bedroom use | Wall-placed grooming station for small apartments and compact bedrooms | |
|---|---|---|
| User group | Teen and adult users for daily makeup, skincare and grooming routines | |
| Space-saving layout | Stool tucks under table when unused, suitable for 0.5m deep wall gaps | |
| Matching decor | Fits Nordic, Japanese minimalist, light wood and Scandinavian interior schemes | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 12521:2015 | Strength, durability and safety requirements for domestic seating, applicable to stool | |
|---|---|---|
| EN 14749:2016 | Safety and performance requirements for domestic storage furniture and tabletops | |
| EN 62471:2008 | Photobiological safety for LED lighting products, applicable to mirror light |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to panel/wood vanity structure | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for engineered wood panels, recommended E1 acceptance ≤0.124mg/m³ | |
| GB 7000.204-2008 | Safety requirements for portable luminaires, applicable to integrated LED mirror lighting |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel/wood vanity structure; 2. GB 18580-2017: Formaldehyde emission limits for engineered wood panels, recommended E1 acceptance ≤0.124mg/m³; 3. GB 7000.204-2008: Safety requirements for portable luminaires, applicable to integrated LED mirror lighting; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
