PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	850 × 360 × 2020 mm
Leg height	150 mm
Bottom drawer internal usable dimensions	780 x 300 x 130 mm
Interior shelf count behind glass doors	5
Adjustable shelf spacing range	280 to 350 mm
Glass panel dimensions per door	220 x 1400 mm
Clear interior depth behind doors	300 mm
Vertical metal handle length	180 mm
Shelf panel thickness	20 mm
Carcass side panel thickness	25 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per shelf static load capacity	30 kg
Total unit net weight	55 kg
Recommended maximum book storage capacity	220 volumes
Wall anchor pull-out resistance	50 kg
Warranty period	1 year
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points
Recommended Procurement Warranty	Carcass 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Main frame and door stiles	Solid natural oak with matte clear lacquer finish
Door insert panels	5mm thick clear tempered glass
Interior adjustable shelves	20mm thick solid oak with eased edges
Bottom drawer front	Solid oak matching frame finish, integrated recessed pull
Drawer box sides and base	12mm thick oak veneered MDF with smooth sanded finish
Back panel	8mm thick MDF with oak veneer finish
Support legs	Solid oak tapered angled legs with leveler feet
Door hinges	Concealed steel adjustable hinges with nickel finish
Drawer slides	3-section full-extension steel ball-bearing slides
Edge banding	0.6mm thick solid wood edge banding matching oak finish
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Shelf adjustability	5 shelves adjust in 32mm increments via pre-drilled holes
Door operation	Two side-hinged doors open to 110 degrees with soft-close dampers
Drawer operation	Full-width bottom drawer extends 300mm on ball-bearing slides
Anti-tip protection	Included wall anchor secures unit to prevent forward tipping
Leveling adjustment	Threaded foot levelers on each leg compensate for 10mm floor unevenness
Door alignment	Concealed hinges allow 3-axis adjustment for flush door alignment
Cable / Vent Opening Reference	If fitted, 80 mm diameter

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Home living room use	Position against wall for book and decor display, matching light wood Scandinavian interiors
Home study or office use	Storage for reference books, documents and office supplies with dust protection from glass doors
Bedroom storage use	Place beside dresser for book, linen and personal item storage, elevated legs for easy floor cleaning
Small apartment application	Narrow 850mm width footprint fits compact spaces, provides vertical storage without occupying floor area
Matching furniture recommendation	Pair with light oak dressers, desks and side tables for unified Nordic home furnishing style

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14749:2016	Domestic and kitchen storage furniture safety requirements, applicable for stability and strength verification
EN 12150-1:2015	Thermally toughened soda lime silicate safety glass, applicable for door glass panel certification

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for dimensional and structural tolerance checks
GB 18584-2001	Indoor decorating and refurbishing materials limit of harmful substances for wood furniture, formaldehyde emission testing
GB/T 4893.8-2013	Furniture surface test for abrasion resistance, applicable to finished wood surface durability checks

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for dimensional and structural tolerance checks;
2. GB 18584-2001: Indoor decorating and refurbishing materials limit of harmful substances for wood furniture, formaldehyde emission testing;
3. GB/T 4893.8-2013: Furniture surface test for abrasion resistance, applicable to finished wood surface durability checks;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · GB-OAK-2GD1D-1900

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · GB-OAK-2GD1D-1900

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · GB-OAK-2GD1D-1900Open Export Tool

Quick Actions

Post an RFQ

Product Description

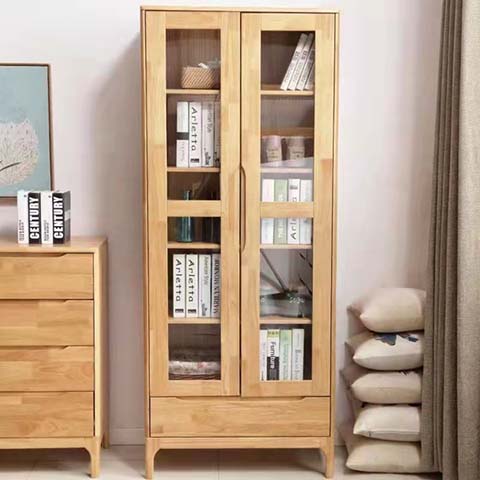

The Scandinavian Light Oak Two-Door Glass-Front Bookcase with Bottom Drawer, model GB-OAK-2GD1D-1900, is an unbranded floor-standing storage unit defined by clean minimalist Nordic design. Its visual profile features a warm light-toned solid oak frame paired with two tall clear tempered glass door panels, elevated on tapered solid oak legs that create a light, raised aesthetic. Slim vertical metal handles accent the glass doors, while the solid oak drawer front sits flush with the frame for a seamless, uncluttered appearance, measuring 850 mm wide, 360 mm deep, and 2020 mm tall to prioritize vertical storage without excessive floor footprint.
Construction uses solid natural oak with a matte clear lacquer finish for the frame, door stiles, 20 mm thick interior shelves, and tapered legs fitted with threaded leveler feet. Door inserts are 5 mm thick tempered clear glass, mounted on concealed nickel-finish steel adjustable hinges with soft-close dampers that open to 110 degrees, allowing 3-axis alignment for a flush fit. The back panel uses 8 mm thick oak-veneer MDF, while the full-width bottom drawer features an integrated recessed pull, 12 mm thick oak-veneer MDF sides and base, and 3-section full-extension steel ball-bearing slides rated for 45 kg per pair across 50,000 cycles, extending 300 mm for full access.
Functional design includes five interior adjustable shelves that reposition in 32 mm increments via pre-drilled holes, with maximum 350 mm spacing between levels, each supporting 30 kg of static load to hold a recommended 220 total book volumes. The 150 mm tall leg elevation simplifies cleaning beneath the unit, while adjustable foot levelers compensate for 10 mm of floor unevenness. An included wall anchor delivers 50 kg of pull-out resistance to prevent forward tipping, and an optional 80 mm diameter cable opening supports media or electronic device integration if fitted. The unit’s glass doors provide dust protection for stored items, balancing open display visibility with enclosed storage security.
This bookcase suits a range of residential and light workspaces: in living rooms, it anchors against walls to display books and decor alongside matching light oak Scandinavian furnishings; in home studies or offices, it stores reference materials, documents, and supplies free from dust; in bedrooms, it sits beside dressers to hold books, linens, and personal items; its narrow width fits well in small apartments to maximize vertical storage without occupying excess floor space, pairing seamlessly with light oak dressers, desks, and side tables for a cohesive Nordic aesthetic. Procurement notes include a 1-year warranty, 40-minute reference assembly time, and delivery across multiple cartons with a total packaged gross weight of 100 kg, requiring two-person handling for safe placement and wall anchor installation.

Scandinavian Light Oak Two-Door Glass-Front Bookcase with Bottom Drawer Specifications
