PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1350 × 600 × 2000 mm
Base leg height	120 mm
Single door width	450 mm
Door panel thickness	20 mm
Side/top carcass panel thickness	18 mm
Back panel thickness	5 mm
Internal shelf thickness	25 mm
Hanging rail height above floor	1700 mm
Lower storage drawer internal height	200 mm
Hanging compartment clear depth	520 mm
Edge banding thickness	1 mm
Carcass Panel Thickness	25 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Unit net weight	85 kg
Static shelf load capacity	25 kg
Recommended maximum user load per door	10 kg
Recommended user count	2 adults
Surface wear resistance	1000 abrasion cycles
Hinge open/close cycle rating	80000 cycles
Drawer slide open/close cycle rating	50000 cycles
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Main carcass frame	Solid pine light hardwood
Door panels	Solid wood with 3-section recessed panel design
Vertical pull handles	Integrated solid wood pulls
Support legs	Solid wood angled raised legs
Hinges	Double-layer electroplated steel soft-close damping hinges
Drawer slides	Three-section electroplated steel quiet ball-bearing slides
Hanging rod	25mm diameter titanium-magnesium aluminum with PVC edge trim
Back panel	5mm thick hardboard
Internal shelves	25 mm thick solid wood panels
Surface finish	Matte clear nitrocellulose wood lacquer
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Door operation	Three outward-swinging hinged doors with 110-degree opening angle
Soft-close hinge action	Doors close silently with damping, no slam noise
Internal layout	Two compartments: full-height hanging zone plus fold storage with drawer
Shelf adjustability	Adjustable shelves support 50mm height increments
Drawer operation	Full-extension drawers on three-section slides
Anti-tip safety	Two wall-mounted anti-tip connectors included
Leveling adjustment	Rear legs include adjustable glides
Door alignment	Hinges support 3-way adjustment for gap alignment
Cable / Vent Opening Reference	If fitted, 80 mm diameter

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential master bedroom	Clothing storage for two adults in 18sqm bedrooms
Children or guest bedroom	Compact storage for guest or single-occupant rooms
Short-term rental apartments	Durable solid wood construction for high-turnover rental use
Small apartment living space	Shallow 600mm depth minimizes floor space occupancy
Matching solid wood bedroom sets	Coordinates with natural wood bed frames and nightstands
Boutique hotel guest rooms	Residential-style storage for upscale hotel accommodation

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14749:2016	Domestic and kitchen storage furniture safety requirements, anti-tip performance
EN 71-3:2019+A1:2021	Migration of certain elements, for furniture surface finishes
EN 312:2010	Particleboard specification, applicable if panel substrates are used

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for structural safety
GB 18584-2001	Indoor decoration material formaldehyde emission limit for wooden furniture
GB/T 4893.8-2013	Surface furniture wear resistance test method

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural safety;
2. GB 18584-2001: Indoor decoration material formaldehyde emission limit for wooden furniture;
3. GB/T 4893.8-2013: Surface furniture wear resistance test method;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WD-3DR-PNL-2000

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WD-3DR-PNL-2000

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WD-3DR-PNL-2000Open Export Tool

Quick Actions

Post an RFQ

Product Description

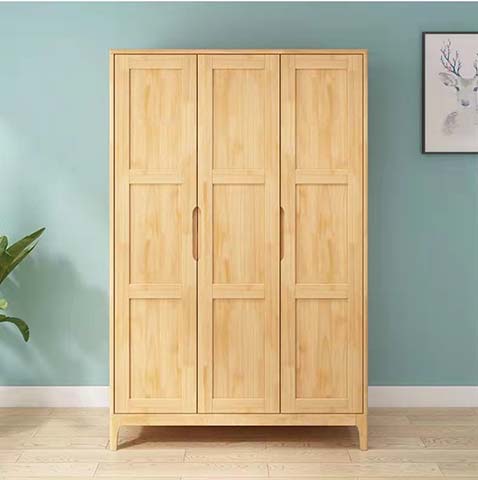

This light natural solid wood 3-door freestanding hinged wardrobe, model WD-3DR-PNL-2000, delivers a clean Nordic minimalist aesthetic defined by balanced proportions and understated visual detail. Its elevated angled solid wood legs lift the main carcass 120mm above the floor, creating a light, open silhouette that avoids the bulky visual weight of floor-set storage units. The three outward-swinging hinged doors feature a 3-section recessed panel design, paired with integrated vertical solid wood pulls that maintain a seamless, uncluttered front elevation. Each 450mm wide door opens to a 110-degree angle for unobstructed interior access, while soft-close double-layer electroplated steel damping hinges eliminate slam noise during use. The unit’s overall external dimensions measure 1350 x 600 x 2000mm, with a 600mm shallow depth tailored to reduce visual and physical footprint in tight layouts. The wardrobe is constructed from solid pine light hardwood for its main carcass frame, finished with a natural matte clear coating that highlights the material’s organic grain. Structural components include 20mm thick door panels, 18mm thick side and top carcass panels, a 5mm thick hardboard back panel, and 25mm thick solid wood internal shelves, all secured with electroplated steel hardware. The internal hanging zone uses a 25mm diameter titanium-magnesium aluminum rod with PVC edge trim, mounted 1700mm above the floor, while the adjacent fold storage section includes a full-extension drawer running on three-section electroplated steel quiet ball-bearing slides. Internal shelves adjust in 50mm height increments to accommodate varied item sizes, with a static load capacity of 25kg per shelf and a 10kg recommended maximum load per door. Additional functional details include rear leg adjustable glides for stable placement on uneven floors, two included wall-mounted anti-tip connectors for secure installation, and hardware rated for 80000 hinge open/close cycles, 50000 drawer slide cycles, and surface wear resistance to 1000 abrasion cycles. Holds are rated for use by up to 2 adults. This wardrobe is suited for a range of spaces: 18sqm residential master bedrooms for shared adult clothing storage, children’s or guest bedrooms for compact single-use storage, short-term rental apartments where durable construction supports high turnover, small apartment living areas where its shallow depth minimizes floor space use, boutique hotel guest rooms seeking residential-style upscale storage, and coordinated bedroom layouts paired with matching natural solid wood bed frames and nightstands. For procurement, note the unbranded unit ships as one set split across packaging with a total packaged gross weight of 100kg and total packaging volume of 0.65m³, with an 40 minute assembly time per unit. The 85kg net weight unit requires appropriate handling during delivery and installation, and installation teams should account for wall anchor fitment to activate the included anti-tip safety feature.

Light Natural Solid Wood 3-Door Freestanding Hinged Wardrobe Specifications
