Automatic mm / inch conversion · Core engineering specifications
| Overall unit dimensions | 2400 x 600 x 2000 mm | |
|---|---|---|
| Leg height | 150 mm | |
| Left bay internal width | 780 mm | |
| Middle bay internal width | 800 mm | |
| Right bay internal width | 720 mm | |
| Full-height hanging zone clear height | 1700 mm | |
| Drawer internal depth | 520 mm | |
| Upper storage compartment clear height | 450 mm | |
| Door panel thickness | 18 mm | |
| Carcass side panel thickness | 18 mm | |
| Back panel thickness | 9 mm | |
| Shelf thickness | 15 mm | |
| Clearance under unit | 130 mm | |
| Hanging rod diameter | 25 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm |
Net weight / load capacity / users / durability
| Total unit net weight | 185 kg | |
|---|---|---|
| Hanging rod static load capacity | 60 kg | |
| Recommended maximum user load | 200 kg | |
| Door hinge open angle | 110 degrees | |
| Hinge cycle rating | 80000 open/close cycles | |
| Drawer slide cycle rating | 50000 open/close cycles | |
| Recommended warranty period | 3 years | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Structural frame and legs | Solid light oak wood, natural clear matte finish | |
|---|---|---|
| Door and drawer front panels | E1 grade MDF substrate, matte white PU paint finish | |
| Carcass panels | E1 grade particleboard, melamine white inner finish | |
| Back panel | Hardboard (HDF), matte white finish | |
| Edge banding | 2 mm solid light oak veneer edging on all exposed panel edges | |
| Hanging rod | Powder-coated steel, 25 mm diameter | |
| Door handles | Solid light oak wood, vertical bar pull style | |
| Drawer handles | Solid light oak wood; middle bay uses horizontal bar, right bays use round knobs | |
| Drawer slides | Cold-rolled steel 3-quarter extension side-mount glides | |
| Door hinges | Cold-rolled steel concealed soft-close hinges | |
| Shelf surfaces | Melamine-laminated engineered wood, scratch-resistant white finish | |
| Anti-tip hardware | Zinc-plated steel wall anchor straps |
Adjustment / rotation / tilt / mobility / storage features

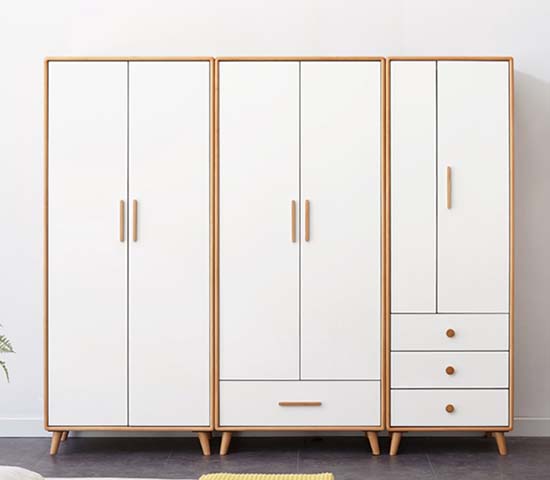

| Left bay storage | Double full-height hinged doors enclosing a single long hanging zone with top shelf | |
|---|---|---|
| Middle bay storage | Double upper hinged doors for shelved storage over one full-width lower drawer | |
| Right bay storage | Double upper hinged doors for short hanging/shelf storage over three stacked small drawers | |
| Door operation | Hinged doors open 110 degrees with soft-close damping to prevent slamming | |
| Drawer operation | Steel side-mount slides provide smooth pull-out access to stored contents | |
| Shelf adjustability | Upper compartment shelves have 4 height positions with pin supports | |
| Hanging rod configuration | Two removable steel hanging rods support long and medium-length clothing | |
| Under-unit clearance | 130 mm open space below the carcass allows robotic vacuum access | |
| Anti-tip safety | Two steel anchor straps secure the unit to wall studs to prevent tip-over | |
| Assembly configuration | Three modular sections join together with connecting cam bolts | |
| Finish maintenance | Matte painted and wood surfaces wipe clean with soft dry or damp cloth | |
| Color offering | Two finish options: white with light oak trim, or all-light oak finish |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
| Primary use space | Residential master or guest bedrooms as primary clothing storage | |
|---|---|---|
| Style compatibility | Mid-century modern, Scandinavian, Japani and light contemporary bedroom interiors | |
| Placement requirement | Position against flat interior wall with 600 mm front clearance for door and drawer opening | |
| Target user group | Adult households seeking high-capacity, visually light freestanding clothing storage | |
| Recommended companion pieces | Matching light oak and white nightstands, dressers and bed frames for coordinated bedroom sets | |
| Small space suitability | Elevated leg design reduces visual bulk compared to floor-plinth wardrobes |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety and performance requirements for domestic storage furniture including wardrobes | |
|---|---|---|
| EN 71-3:2019 | Safety of toys: migration of certain elements, applicable for surface coating safety in residential furniture |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for panel and solid wood wardrobe construction | |
|---|---|---|
| GB 18584-2001 | Indoor decoration material: formaldehyde emission limit for wooden furniture, E1 grade requirement for panels |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for panel and solid wood wardrobe construction; 2. GB 18584-2001: Indoor decoration material: formaldehyde emission limit for wooden furniture, E1 grade requirement for panels; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
