Automatic mm / inch conversion · Core engineering specifications
| overall dimensions | 1800 x 550 x 2030 mm | |
|---|---|---|
| upper short hanging compartment clear height | 1300 mm | |
| lower trouser hanging compartment clear height | 1000 mm | |
| top bedding storage compartment height | 500 mm | |
| long coat hanging compartment clear height | 1500 mm | |
| integrated drawer internal dimensions | 800 x 450 x 190 mm | |
| folded clothing shelf vertical spacing | 400 mm | |
| hanging rail diameter | 23 mm | |
| integral base leg floor clearance | 100 mm | |
| carcass panel thickness | 18 mm | |
| back panel thickness | 9 mm | |
| edge band thickness | 1 mm | |
| hinge/drawer slide clearance | 12 mm | |
| anti-tip connector mounting height | 1900 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| total unit static load capacity | 363 kg | |
|---|---|---|
| product net weight | 80 kg | |
| recommended user count per unit | 2 users | |
| drawer slide cycle rating | 50000 cycles | |
| floor contact point count | 4 | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
| main carcass panels | 18mm E1-grade laminated particleboard with light oak wood grain finish | |
|---|---|---|
| unit back panel | 9mm MDF hardboard backing matching light wood finish | |
| hanging rods | 23mm diameter powder-coated steel horizontal rails | |
| integrated drawer front | 18mm matching laminated engineered wood with recessed pull cutout | |
| drawer slides | Cold-rolled steel side-mount drawer slides with zinc plating | |
| integral support legs | 18mm solid wood composite legs matching cabinet finish | |
| shelf surfaces | 18mm laminated engineered wood with 1mm PVC edge banding | |
| anti-tip hardware | Steel wall anchor brackets with included mounting screws | |
| drawer base panel | 9mm MDF panel supporting stored items inside drawer | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |

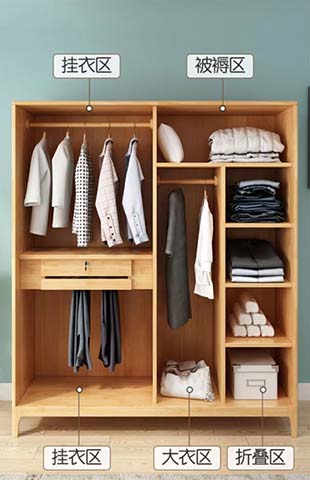

Adjustment / rotation / tilt / mobility / storage features
| upper short hanging storage | Full-width steel rail holds short garments, shirts and blouses 1300 mm long | |
|---|---|---|
| lower trouser hanging storage | Full-width steel rail holds trousers, pants and bottoms 1000 mm long | |
| top bedding storage | Wide open top shelf holds folded duvets, pillows and seasonal bedding | |
| long coat hanging storage | Dedicated rail holds long overcoats, dresses and outerwear up to 1500mm long | |
| folded item open shelving | Four stacked right-side open shelves hold folded garments, accessories and storage boxes | |
| integrated accessory drawer | Pull-out drawer stores socks, undergarments and small accessories with recessed pull | |
| raised base design | 100mm floor clearance enables robot vacuum and mop access under the unit | |
| anti-tip wall anchoring | Included hardware secures top of unit to wall to prevent tipping under unbalanced load | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
| bedroom clothing storage | Suits master or secondary bedrooms for two-person daily clothing organization | |
|---|---|---|
| walk-in closet built-in use | Fits as a modular component in custom walk-in closet layouts | |
| apartment compact storage | Works in small urban apartments where closed-door units feel overly bulky | |
| rental property furnishing | Suitable for furnished rental units requiring durable, easy-to-assemble storage | |
| entryway coat storage | Can be placed in large entryways for outerwear, bag and accessory storage |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety and performance requirements for domestic storage furniture | |
|---|---|---|
| EN 312:2010 | Particleboard performance specification for furniture panel use | |
| EN 13986:2004+A1:2015 | Wood-based panel formaldehyde emission Class E1 limit for indoor use |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to this wardrobe cabinet | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, E1 grade minimum for acceptance | |
| GB/T 10357.5-2011 | Furniture mechanical performance test for storage units, static load verification | |
| GB/T 4897-2015 | Particleboard specification, applicable to main carcass panel material verification |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to this wardrobe cabinet; 2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, E1 grade minimum for acceptance; 3. GB/T 10357.5-2011: Furniture mechanical performance test for storage units, static load verification; 4. GB/T 4897-2015: Particleboard specification, applicable to main carcass panel material verification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
