Automatic mm / inch conversion · Core engineering specifications
| Overall exterior dimensions | 1800 x 620 x 2200 mm | |
|---|---|---|
| Base leg height | 120 mm | |
| Individual sliding door width | 880 mm | |
| Internal hanging zone height | 1300 mm | |
| Internal shelf depth | 580 mm | |
| Door panel recessed section height | 470 mm | |
| Side panel thickness | 30 mm | |
| Back panel thickness | 12 mm | |
| Side Rail Thickness | 40 mm | |
| Slat Spacing | 80 mm | |
| Center Support Leg Count | Recommended 6legs |
Net weight / load capacity / users / durability
| Total product net weight | 180 kg | |
|---|---|---|
| Single sliding door track static load rating | 80 kg | |
| Each internal shelf uniform load capacity | 30 kg | |
| Sliding roller cycle durability | 50000 open/close cycles | |
| Maximum user capacity for clothing storage | 2 adults | |
| Bed Static Load Reference | 400 kg | |
| Per-slat Load Reference | 60 kg | |
| Recommended Procurement Warranty | Frame 10 years; hardware 5 years; upholstery 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
| Cabinet carcass frame | Solid white oak with natural clear lacquer finish | |
|---|---|---|

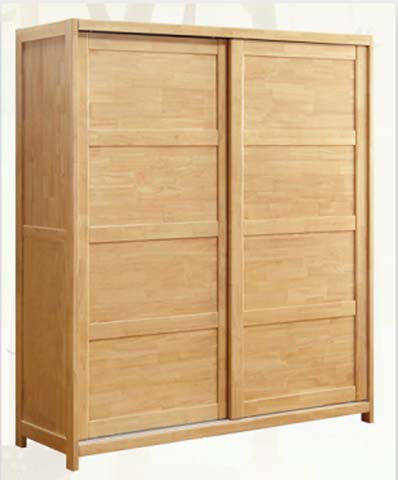

| Sliding door panels | Solid oak frame with recessed solid oak panels, 4 horizontal sections per door | |
| Sliding track assembly | Zinc-plated steel top and bottom tracks with nylon-coated rollers | |
| Elevated support legs | Solid oak block legs, 4 total at cabinet corners | |
| Internal hanging rod | 25mm diameter solid wood rod with metal mounting brackets | |
| Internal adjustable shelves | Solid oak panels with metal shelf pins, 4 height positions | |
| Surface finish | Low-VOC matte clear lacquer, wood grain fully visible | |
| Edge banding | Solid wood edge trim matching cabinet material, 2mm thickness | |
| Slat Thickness | 15 mm bent plywood or solid timber | |
| Primary Connector Specification | Reference M8-M10 bolts with at least 2 fixing points per corner | |
| Reference Finish / Color Count | Recommended 6timber/upholstery options |
Adjustment / rotation / tilt / mobility / storage features
| Sliding door operation | Two horizontal sliding doors on top-hung track, left/right traverse for full access | |
|---|---|---|
| Internal storage zones | One full-height long hanging zone, one zone with 3 adjustable shelves for folded items | |
| Shelf height adjustment | 50mm increment adjustment for internal shelves via metal pin holes | |
| Door gap sealing | Soft bristle dust seals along door vertical edges to reduce dust ingress | |
| Anti-tip safety | 2 wall-mounted anti-tip metal brackets included to secure cabinet to wall | |
| Adjustable foot pads | Hidden adjustable pads on leg bases to level cabinet on uneven floors | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2300× 900× 450 mm/carton in 4 cartons | |
| Reference Packaged Gross Weight | 130 kg/set | |
| Reference Packaging Volume | 0.9 m³/set |
Recommended spaces / users / usage modes
| Primary application space | Standard residential master or guest bedrooms for 2adults | |
|---|---|---|
| Installation requirement | Freestanding placement against flat interior wall, 50mm clearance from ceiling recommended | |
| Style matching | Scandinavian, Japanese minimalist, natural wood tone interior design schemes | |
| Door clearance requirement | Minimum 100mm floor space in front of cabinet, no out-swing door clearance needed | |
| Recommended matching furniture | Solid oak bed frame, matching oak bedside tables and dresser for cohesive bedroom set |
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Applicable for storage furniture safety requirements for domestic and office wardrobes | |
|---|---|---|
| EN 12521:2015 | Applicable for domestic furniture strength, durability and safety requirements for storage cabinets | |
| EN 71-3:2019 | Applicable for safety of furniture surface coating migration of certain elements for household use |
Standards applicable to China-market projects
| GB/T 3324-2017 | Applicable for general technical requirements of wooden furniture, dimensional and structural safety checks | |
|---|---|---|
| GB 18584-2001 | Applicable for indoor decorating material limit of harmful substances in wooden furniture, formaldehyde emission verification | |
| GB/T 4893.8-2013 | Applicable for surface coating abrasion resistance testing for wooden furniture finishes |
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applicable for general technical requirements of wooden furniture, dimensional and structural safety checks; 2. GB 18584-2001: Applicable for indoor decorating material limit of harmful substances in wooden furniture, formaldehyde emission verification; 3. GB/T 4893.8-2013: Applicable for surface coating abrasion resistance testing for wooden furniture finishes; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
