PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	620 × 320 × 1200 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Unit net weight	22 kg
Total static load capacity	60 kg
Elevated leg floor clearance	150 mm
Storage compartment count	6
Recommended maximum evenly distributed load per upper cubby	8 kg
Shelf load-bearing surface height from floor	270 mm
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Frame and side panels	Solid pine wood, natural clear matte finish
Internal shelf dividers	Solid pine wood, sanded smooth edge
Drawer front	Solid pine wood, flush inset fit
Support legs	Solid turned pine wood, tapered cylindrical profile
Drawer box sides	Solid pine wood, rabbet joint construction
Surface finish	Low-VOC water-based clear lacquer, satin sheen
Drawer hardware	Concealed side-mount wooden glides
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Open multi-compartment storage	Five open compartments for displayed books, decor and daily items
Bottom concealed storage	Full-width pull-out drawer for storing small private items below open shelves
Elevated base design	150mm floor clearance enables easy floor cleaning and robotic vacuum access
Freestanding placement	Self-supporting structure requires no wall mounting for stable use
Fixed shelf layout	All internal dividers and shelves are permanently positioned for consistent compartment sizing
Cable / Vent Opening Reference	If fitted, 80 mm diameter

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Home living room	Placed beside sofa for displaying decor and storing remote controls and reading materials
Home study or bedroom	Used as a small bookcase for paperback books and stationery storage
Small apartment entryway	Stores keys, mail and entry accessories in the drawer and open shelves
Office break area	Stores magazines, cups and small office supplies for staff use

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · BSC-OPEN-062

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · BSC-OPEN-062

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · BSC-OPEN-062Open Export Tool

Quick Actions

Post an RFQ

Product Description

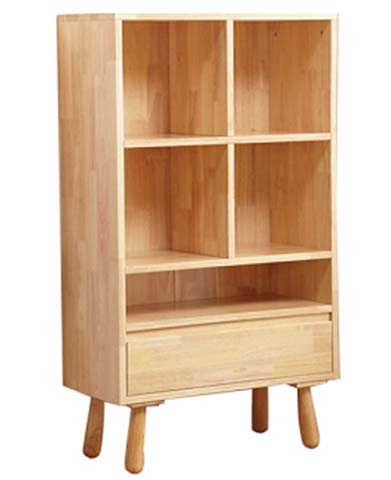

The Light Wood Open Storage Bookcase with Drawer is a freestanding open storage unit designed to balance functional storage and warm, understated visual appeal. It features a clean grid layout of open upper compartments paired with a single full-width drawer positioned at the base, elevated on tapered cylindrical turned pine legs that lift the main carcass off the floor for a light, open visual profile. The natural matte pine construction carries a soft satin sheen from its low-VOC water-based clear lacquer finish, with smooth sanded edges and flush inset drawer fitting that create a cohesive, uncluttered silhouette suited to a range of interior aesthetics. Every structural component of the bookcase is built from solid pine wood, including the frame, side panels, internal shelf dividers, tapered support legs, drawer box sides, and drawer front. Drawer boxes use rabbet joint construction, with concealed side-mount wooden glides for smooth operation; major structural joints connect via M6-M8 cam and bolt fittings, with at least two fixing points at each key connection to deliver stable, long-term use. The elevated 150mm floor clearance allows unobstructed access for floor cleaning and robotic vacuums, while the freestanding structure requires no wall mounting to maintain stable positioning. All internal shelves and dividers are fixed in place to retain consistent compartment sizing, with a total of five open upper compartments ideal for displaying books, decor, and regularly accessed daily items, and a full-width pull-out bottom drawer that offers concealed storage for small, private items. Each upper cubby supports evenly distributed stored items, and individual shelves provide robust support for stored goods, with a total static load capacity suited to regular residential and light commercial use. This bookcase fits naturally in residential spaces including living rooms, where it can sit beside a sofa to hold reading materials, remotes, and decorative displays; home studies or bedrooms, where it serves as a compact bookcase for paperbacks and stationery; and small apartment entryways, where it stores keys, mail, and entry accessories across its open shelves and lower drawer. It also works well in office break areas to hold magazines, drinkware, and small shared office supplies for staff use. Procurement teams and individual buyers should note the unit ships across multiple cartons per set, with an assembly time of 40 minutes per unit, and should plan placement to accommodate the unit’s footprint while accounting for its fixed shelf layout when planning stored item sizes.
