PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1200 × 600 × 2000 mm
Side Rail Thickness	40 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static load capacity	240 kg
Hanging rod static load per rod	40 kg
Open shelf per-level static load	20 kg
Net weight of fully assembled unit	85 kg
Recommended maximum user count	2
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg
Recommended Procurement Warranty	Frame 10 years; hardware 5 years; upholstery 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Cabinet main body panels	18mm thick E1 grade particleboard with light oak melamine finish
Back panel	5mm thick MDF with matching wood grain finish
Hanging rods	25mm diameter chrome-plated steel tube
Drawer slides	Side-mounted 3-section ball-bearing steel slides
Support legs	Solid rubberwood tapered legs with natural clear coat
Cabinet door-less frame edges	1mm thick PVC edge banding, matching wood finish
Shelf surfaces	Scratch-resistant melamine laminate, abrasion resistance 300 cycles
Drawer front panels	18mm thick engineered wood with integrated recessed pull handle
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Dual-height hanging storage	Two separate hanging zones with dedicated rods for short and long garments
Two stacked full-width drawers	Two horizontally aligned drawers on full-extension slides for small folded items
Dedicated pants hanging section	Lower rod under short hanging zone for hanging trousers and slacks
Central open adjustable shelving	Three fixed open shelves in central column for bags, accessories and storage boxes
Top seasonal storage compartment	Enclosed top shelf in right section for out-of-season bedding and luggage
Right-side full-height folded storage zone	Open lower shelf in right column for stacked folded sweaters, denim and linens
Elevated base design	120mm leg height leaves open clearance under cabinet
Handle-less drawer operation	Recessed integrated pulls on drawer fronts for smooth opening
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Small to medium residential bedrooms	1200mm width fits 2.5m and wider bedroom walls without crowding space
Shared 2-person bedrooms	Dual hanging zones and separate storage areas suit two adults' mixed clothing
Rental property furnishing	Durable melamine finish and modular storage suit long-term rental installations
Dormitory or staff accommodation	High storage density and simple open design suit shared staff living quarters
Walk-in closet supplementary storage	Open front design works as additional visible storage inside large walk-in closets

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14749:2016	Safety and strength requirements for domestic storage furniture, applicable to shelf and rod load testing

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for panel strength and dimensional stability
GB 18580-2017	Formaldehyde emission limit for wood-based panels, E1 grade ≤0.124mg/m³

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for panel strength and dimensional stability;
2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, E1 grade ≤0.124mg/m³;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WD-MC-1200FW

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WD-MC-1200FW

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WD-MC-1200FWOpen Export Tool

Quick Actions

Post an RFQ

Product Description

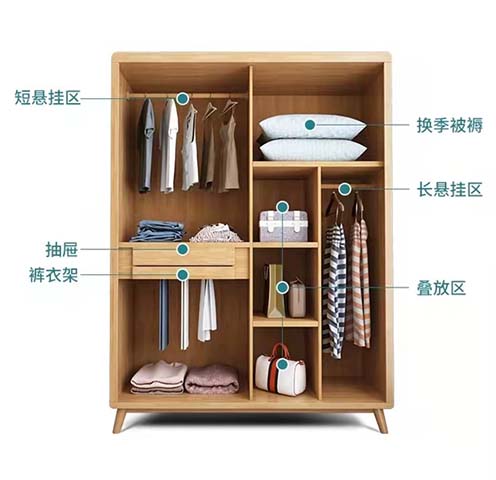

The Multi-Compartment Freestanding Wooden Wardrobe (model WD-MC-1200FW) is an unbranded freestanding bedroom wardrobe designed for flexible, high-density clothing and personal item storage, with a cohesive light oak wood grain aesthetic that complements a range of residential and shared living interior palettes. Its balanced visual layout divides the 1200 x 600 x 2000 mm frame into distinct, intuitively organized storage zones, supported by tapered solid rubberwood legs finished with a natural clear coat that create a 120 mm open clearance under the elevated cabinet base, lending a light, approachable silhouette rather than a heavy, floor-blocking profile. Constructed for reliable daily use, the cabinet’s main body uses 18 mm thick E1 grade particleboard with a light oak melamine finish, paired with a 5 mm matching wood grain MDF back panel and 1 mm thick PVC edge banding on door-less frame edges to match the wood finish. Drawer fronts are cut from 18 mm engineered wood with integrated recessed pull handles, running on side-mounted 3-section ball-bearing steel slides. Hanging rods are 25 mm diameter chrome-plated steel tubes, shelf surfaces feature scratch-resistant melamine laminate rated for 300 cycles of abrasion resistance, and the unit is supported by 6 center support legs for structural stability. The fully assembled unit weighs 85 kg, with a total static load capacity of 240 kg; each hanging rod supports 40 kg, each open shelf holds 20 kg, and the structure is designed for a maximum of 2 regular users. Its purpose-built storage functions address varied clothing storage needs: two separate dual-height hanging zones accommodate short and long garments, with a dedicated lower rod under the short hanging section for trousers and slacks. Two stacked full-width drawers on full-extension slides hold small folded items, while a central column of three fixed open shelves stores bags, accessories, and storage boxes. The right section includes an enclosed top compartment for out-of-season bedding and luggage, plus a full-height open folded storage zone below for stacked sweaters, denim, and linens. This wardrobe is well-suited for small to medium residential bedrooms, as its 1200 mm width fits walls 2.5 m and wider without crowding floor space. It works effectively in shared 2-person bedrooms, long-term rental properties, dormitory or staff accommodation, and as supplementary visible storage in large walk-in closets. For procurement, note that each unit ships across 2 cartons with a total packaged gross weight of 130 kg and 0.9 m³ packaging volume, with a reference assembly time of 40 minutes per set. Confirm available wall clearance and access route dimensions before delivery to accommodate packaged components, and account for assembly labor as part of total installation planning.

Multi-Compartment Freestanding Wooden Wardrobe with Hanging, Drawer and Open Storage Specifications
