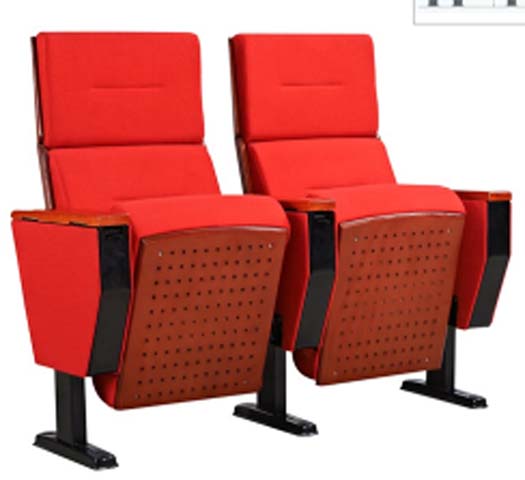

Name: 2-Seat Fixed Floor-Mounted Auditorium Chair with Wooden Armrests
Brand: Yaqi Furniture
SKU: 0TC9UF

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1180 × 500 × 980 mm
Overall unit dimensions (2-seat ganged)	1180 x 500 x 980 mm
Per-seat center-to-center width	590 mm
Seat height above finished floor	450 mm
Seat depth (usable cushion)	500 mm
Backrest height from seat surface	530 mm
Armrest height above seat surface	220 mm
Armrest width per seat divider	80 mm
Seat tip-up folded depth projection	120 mm
Floor stanchion base width	120 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per-seat static load capacity	150 kg
Net weight per 2-seat unit	52 kg
Fabric abrasion resistance (Martindale)	50000 cycles
Seat tip-up mechanism cycle life	100000 operations
Acoustic panel sound absorption coefficient	0.6 NRC
Recommended user weight per seat	136 kg
Foam density (seat cushion)	55 kg/m³
Foam density (backrest)	45 kg/m³
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back upholstery	Woven polyester fabric, red color, flame-retardant treated
Seat cushion padding	70 mm thick high-density cold-cure PU foam, 55 kg/m³ density
Backrest padding	40 mm thick high-density cold-cure PU foam, 45 kg/m³ density
Armrest tops	Solid beech wood, varnish finish, 80 mm wide
Armrest supports and stanchions	3 mm thick cold-rolled steel, black powder-coated finish
Front modesty panels	Perforated HDF/plywood panel, brown wood finish
Side panels	Fabric-wrapped wood composite frame, matching red upholstery
Floor mounting bases	Steel T-flange base, powder-coated black, 4-point bolting compatible
Seat hinge mechanism	Galvanized steel spring-damper assembly, silent return
Seat underside shell	Perforated HDF panel, matching front modesty finish
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat tip-up operation	Spring-damped automatic return, silent closure, no slam impact
Floor mounting system	Fixed bolt-down T-stanchion, compatible with concrete or raised access floors
Ganged row configuration	Shared divider armrest between adjacent seats, aligned row installation
Acoustic performance	Perforated front/underside panels reduce echo and sound reflection in large halls
Curved row compatibility	Adjustable stanchion angles allow installation in arced or straight row layouts
Seat locking (stowed position)	Mechanical detent holds seat in folded upright position when unoccupied
Surface maintenance	Stain-resistant fabric coating allows spot cleaning with mild detergent
Anti-panic seat return	Slow, controlled folding motion prevents pinching during egress
Backrest recline angle from vertical	20 degrees
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Auditorium and theater halls	Fixed ganged layout provides high-density, organized seating for performance venues
Conference and lecture halls	Quiet tip-up seats and ergonomic padding support long-duration seated events
Government and assembly chambers	Formal wood-trim design meets official venue aesthetic and public use requirements
School and university lecture theaters	Durable construction withstands high daily student traffic in academic spaces
Cinema and performing arts centers	Acoustic perforated panels reduce sound reflection for improved audience audio experience
Corporate training centers	Standard 590mm seat width accommodates adult users in professional development spaces
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12727:2000	Furniture - Seating for auditoriums, performance and structural requirements
EN 1021-1:2014	Upholstered furniture flammability, cigarette ignition resistance
EN 1021-2:2014	Upholstered furniture flammability, match flame ignition resistance
EN 1728:2014	Furniture seating test methods for strength, durability and stability

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017	Office seating performance standard, applicable for general seating structural requirements
ANSI/BIFMA X5.4-2019	Lounge and public seating performance requirements for fixed assembly use
ANSI/BIFMA e3-2019	Furniture sustainability standard for low-emission material selection

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to wood armrest/panel components
GB/T 3325-2017	General technical requirements for metal furniture, applicable to steel stanchion/base components
GB 20286-2006	Flame retardant performance requirements for furniture in public assembly venues
GB/T 10357.3-2013	Furniture mechanical performance test for seating strength and durability

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to wood armrest/panel components;
2. GB/T 3325-2017: General technical requirements for metal furniture, applicable to steel stanchion/base components;
3. GB 20286-2006: Flame retardant performance requirements for furniture in public assembly venues;
4. GB/T 10357.3-2013: Furniture mechanical performance test for seating strength and durability;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · AUD-2SEAT-RED-WOOD-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · AUD-2SEAT-RED-WOOD-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · AUD-2SEAT-RED-WOOD-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

Yaqi Furniture’s AUD-2SEAT-RED-WOOD-001 is a two-seat fixed floor-mounted auditorium chair designed for high-traffic public and commercial seating applications. It features a formal, streamlined design finished in rich red woven polyester upholstery paired with warm varnished solid beech wood armrest tops, accented by black powder-coated steel structural components and brown wood-finish perforated front panels that coordinate with a wide range of formal interior palettes. Adjacent seats share a common divider armrest to support neat, continuous ganged row installations, and adjustable stanchion angles allow configuration for both straight and curved seating layouts.
The chair is built for long-term heavy use: seat and back cushions are constructed with high-density cold-cure PU foam, wrapped in stain-resistant, flame-retardant treated linen-look woven polyester fabric rated for 50000 Martindale abrasion cycles, suitable for frequent daily use. Armrest supports, stanchions and T-flange floor mounting bases are formed from heavy-gauge cold-rolled steel with a durable black powder-coated finish, while side panels use fabric-wrapped wood composite frames matched to the red upholstery. The galvanized steel spring-damper seat hinge enables silent, automatic tip-up return with no slamming impact, and a mechanical detent holds seats in the folded upright position when unoccupied to keep aisle space clear; the folded seat projects just 120 mm from the backrest to support easy pedestrian passage. Perforated front and underside panels deliver 0.6 NRC sound absorption to reduce echo and unwanted sound reflection in large interior spaces. The fixed bolt-down mounting system is compatible with both concrete and raised access floors, with 4-point bolting for stable, permanent installation.
This seating model is well suited for a broad range of spaces, including auditorium and theater halls, conference and lecture venues, government assembly chambers, university lecture theaters, cinemas and performing arts centers, and corporate training facilities. It balances formal wood-trim aesthetics for official settings, durable construction to withstand high student or public traffic, quiet operation for long presentations or performances, and acoustic properties that enhance audience audio experiences. For procurement teams, key considerations include the 40-minute per-set assembly time, packaging split across two cartons per two-seat unit, compatibility with standard 20GP container loading for large-scale projects, and the ability to spot-clean upholstery with mild detergent for simplified ongoing facility maintenance.

2-Seat Fixed Floor-Mounted Auditorium Chair with Wooden Armrests Specifications
