PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	590 × 880 × 1040 mm
Center-to-center arm spacing (single unit width)	590 mm
Seat height from finished floor	460 mm
Backrest total height from seat surface	600 mm
Armrest height from finished floor	640 mm
Overall depth (seat and tablet closed)	760 mm
Retractable writing tablet usable surface	340 x 255 mm
Seat usable depth	450 mm
Armrest cap width	85 mm
Floor mount base plate size (per leg)	150 x 100 mm
Recommended minimum row-to-row spacing	900 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight per assembled chair	29 kg
Gross shipping weight per chair	30 kg
Recommended maximum static user load	150 kg
Seat foam density	60 kg/m³
Backrest foam density	45 kg/m³
Seat cushion thickness	130 mm
Backrest cushion thickness	40 mm
Fabric abrasion resistance (Martindale)	50000 cycles
Tablet static load capacity	30 kg
Product warranty period	5 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back upholstery	Orange commercial woven fabric, flame-retardant, stain-resistant finish
Seat cushion padding	Cold-molded high-resilience PU foam, 60kg/m³ density
Backrest padding	Cold-molded PU foam, 45kg/m³ density, contoured lumbar support
Armrest caps	29mm thick light solid beech wood, clear polyester coating
Structural leg and stanchion frame	2.0mm thick cold-rolled square steel tube, powder-coated polished silver finish
Writing tablet support arm	Aluminum alloy alloy, anti-panic fold-away hinge mechanism
Writing tablet panel	15mm thick E1 high-density fiberboard, PU edge banding, matte black finish
Seat and back outer shell	15mm thick hardwood plywood, sound-absorbing backing, fabric-wrapped sides
Seat return mechanism	Damped steel spring mechanism, slow quiet automatic tip-up
Seam stitching	High-tenacity polyester thread, 8mm stitch pitch for heavy-duty upholstery
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Automatic tip-up seat	Spring-damped gravity return, lifts to vertical position when unoccupied to clear aisle space
Retractable writing tablet	Swing-out arm-mounted tablet, anti-panic release, folds flush into armrest when not in use
Fixed floor mounting	Pre-drilled base plates, bolted to finished tiered floor, ganged in continuous rows for permanent installation
Row ganging capability	Integrated steel connecting brackets, joins adjacent units to eliminate row gaps and improve structural rigidity
Sound-dampening seat operation	Nylon pivot bushings, damped return mechanism eliminates impact noise during seat lifting and lowering
Optional accessory mounting points	Pre-punched mounts for row number plates, cup holders, and rear book nets per venue requirements
Tablet position lock	Positive detent lock holds tablet in horizontal use position, releases automatically under emergency egress pressure
Backrest recline angle from vertical	20 degrees
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Shipping carton dimensions per unit	750 x 600 x 500 mm
Gross shipping weight per carton	30 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

University lecture halls	Fixed row installation with tablet surface supports extended note-taking and exam use for students
Corporate training and conference centers	Durable commercial construction supports daily multi-session training and event use
Theater and performing arts venues	Upholstered padded construction delivers comfort for 2+ hour performances and events
Government and institutional assembly halls	Fixed floor mount and formal aesthetic matches formal meeting and public hearing requirements
Tiered multi-purpose auditoriums	Tip-up seat and stowed tablet maximize aisle clearance for high-occupancy event turnover
Public training institutions	Stain-resistant fabric and durable mechanism withstand high-frequency public use
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12727:2016	Strength, durability and safety requirements for fixed auditorium and lecture hall seating
EN 1021-1/2:2014	Upholstered furniture ignitability test standards for smoldering cigarette and match flame
EN 13761:2003	Ergonomic dimensions and performance requirements for public seating used in assembly spaces

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB 20286-2006	Requirements for flame retardant performance of public place seating upholstery components
GB/T 3324-2017	General technical requirements for metal-framed public furniture durability and safety
GB/T 10357.3-2013	Test method for strength and durability of chair seat and backrest structures

Standardized tender description text

This product must meet the following technical requirements:
1. GB 20286-2006: Requirements for flame retardant performance of public place seating upholstery components;
2. GB/T 3324-2017: General technical requirements for metal-framed public furniture durability and safety;
3. GB/T 10357.3-2013: Test method for strength and durability of chair seat and backrest structures;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · AUD-TAB-ORANGE-FLOOR-590

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · AUD-TAB-ORANGE-FLOOR-590

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · AUD-TAB-ORANGE-FLOOR-590Open Export Tool

Quick Actions

Post an RFQ

Product Description

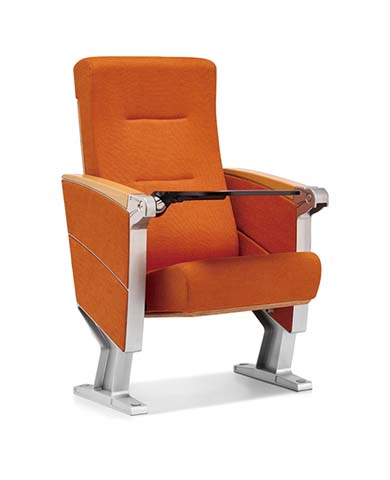

The Fixed Floor-Mount Orange Fabric Auditorium Chair with Retractable Writing Tablet is a purpose-built public seating solution engineered for high-traffic, permanent venue installations. Visually, it features a vibrant orange commercial woven fabric upholstery, paired with light solid beech wood armrest caps finished in a clear polyester coating, and a polished silver powder-coated metal frame that balances a warm, approachable aesthetic with the structured, orderly layout required for continuous rowed seating. When installed, units connect seamlessly via integrated steel brackets to eliminate row gaps, creating a clean, uniform sightline across tiered floors. Its construction prioritizes long-term durability and user comfort: the seat uses 130mm thick cold-molded high-resilience PU foam at 60kg/m³ density, while the contoured backrest uses 40mm thick cold-molded PU foam at 45kg/m³ density with built-in lumbar support, wrapped in stain-resistant, flame-retardant woven fabric. The structural frame is formed from 2.0mm thick cold-rolled square steel tube, with aluminum alloy supports for the retractable writing tablet, 15mm thick E1 high-density fiberboard for the tablet panel finished in matte black with PU edge banding, and 15mm thick hardwood plywood for the seat and back outer shells with sound-absorbing backing and fabric-wrapped sides. Practical functionality is tailored to public venue needs: the gravity-activated damped spring seat automatically tips to vertical when unoccupied, with nylon pivot bushings eliminating operational noise to clear aisle space without disrupting events. The swing-out writing tablet locks securely in horizontal position for use, features an anti-panic release that folds automatically under emergency egress pressure, and stows flush within the armrest when not needed. Pre-drilled base plates enable secure bolting to finished tiered floors, and pre-punched mounting points support optional accessories including row number plates, cup holders, and rear book nets. This chair supports a maximum static user load of 150kg, and is well suited for university lecture halls, corporate training and conference centers, theater and performing arts venues, government and institutional assembly halls, tiered multi-purpose auditoriums, and public training institutions, where its construction withstands daily multi-session, high-frequency use while delivering comfort for events of two hours or longer. For procurement, note that each chair ships across two cartons, requires 40 minutes of assembly per unit, and is unbranded, allowing for flexible venue-specific customization without conflicting trademark requirements; fixed floor mounting requires pre-prepared level tiered flooring and appropriate anchoring hardware aligned to pre-drilled base plate positions.

Fixed Floor-Mount Orange Fabric Auditorium Chair with Retractable Writing Tablet Specifications
