PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	590 × 792 × 1080 mm
Overall depth (tablet open)	792 mm
Seat height above finished floor	450 mm
Seat usable depth	460 mm
Seat usable inner width	505 mm
Backrest height above seat	630 mm
Backrest panel thickness	15 mm
Writing tablet dimensions	273 x 253 x 18 mm
Seat panel thickness	15 mm
Cast aluminum pedestal floor span	450 mm
Minimum recommended row spacing	950 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Single unit net weight	40 kg
Seat static load capacity	160 kg
Recommended user weight limit	120 kg
Seat return cycle rating	50000 cycles
Tablet pivot cycle rating	30000 cycles
Paint film abrasion resistance	2000 cycles
Warranty period for structural components	6 years
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back outer shell	High-density hardwood multi-layer board, beech/walnut wood veneer, 6-coat PU paint
Writing tablet surface	Solid oak hardwood, matte clear PU paint finish
Central support pedestal	Die-cast aluminum alloy Y-shaped single column, powder-coated silver finish
Tablet pivot bracket	Die-cast aluminum alloy rotary joint, matte gray finish
Seat return mechanism	Carbon steel spring frame with damped rubber buffer
Floor anchoring hardware	Zinc-plated steel expansion bolts, hidden plastic end caps
Metal surface treatment	Phosphating pre-treatment, electrostatic powder coating
Wood edge treatment	Sanded radius edges, paint-sealed to prevent moisture damage
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat automatic return	Damped spring mechanism lifts seat to vertical position after use, silent 3-second return
Writing tablet deployment	Rotates 90 degrees outward from rear backrest to horizontal writing position, folds flush against back when stored
Tablet tilt lock	Holds fixed 6.5° upward writing angle when deployed, auto-locks in stored position
Floor fixed installation	Secured to concrete or raised floor with 4 hidden expansion bolts, no movement during use
Silent operation design	Rubber damping pads at all pivot points eliminate metal-on-metal noise during seat/tablet movement
End unit row configuration	Designed as armless terminal unit for left or right row ends, matches adjacent standard seated units
Tablet upward tilt angle	6.5°
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Auditorium and theater seating	Permanent floor-mounted installation for performance venues, silent operation avoids event disruption
Lecture hall and conference venue	Rear writing tablet supports note-taking and laptop use during extended presentations
Academic training classroom	Armless end unit provides accessible aisle seating for multi-use training spaces
Government and corporate meeting hall	Wood finish matches formal interior design, durable construction for high-frequency use
Row end position application	Installed at terminal positions of continuous seating rows for clean aisle appearance
Public assembly space	Fixed structure meets egress and safety requirements for high-occupancy public buildings
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12727:2016	Strength, durability and safety requirements for auditorium and lecture hall seating
EN 1022:2018	Determination of seating stability for fixed public seating installations

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to wood panel quality and finish
GB 20286-2006	Flame retardant requirements for public seating components in high-occupancy venues
GB/T 10357.3-2013	Test method for strength and durability of chair seats and backs

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to wood panel quality and finish;
2. GB 20286-2006: Flame retardant requirements for public seating components in high-occupancy venues;
3. GB/T 10357.3-2013: Test method for strength and durability of chair seats and backs;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · AUD-WD-CA-PED-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · AUD-WD-CA-PED-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · AUD-WD-CA-PED-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

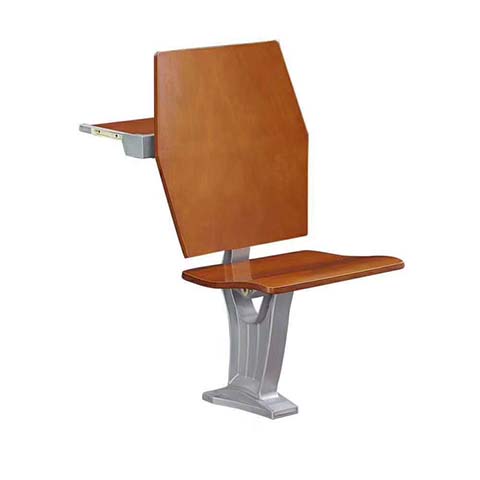

This fixed, floor-mounted armless end auditorium chair, model AUD-WD-CA-PED-001, presents a streamlined, formal aesthetic tailored for permanent public seating installations. Designed as a terminal unit for either left or right row ends, it aligns seamlessly with adjacent standard seating units to create clean, unbroken row edges and unobstructed aisle access. Its cohesive wood finish palette combines warm wood veneer panels with a silver powder-coated Y-shaped central pedestal, while all moving parts sit flush when stored to maintain a polished, uncluttered visual profile across seating banks. Constructed for long-term high-frequency use, the chair’s seat and back panels use high-density hardwood multi-layer board finished with beech or walnut wood veneer, protected by six coats of durable PU paint with sanded radius edges sealed to prevent moisture damage. The fold-out writing tablet is crafted from solid oak hardwood with a matte clear PU finish, supported by a matte gray die-cast aluminum alloy rotary bracket. The central support is a die-cast aluminum alloy Y-shaped single column, anchored to concrete or raised floors with zinc-plated steel expansion bolts covered by hidden plastic end caps. A carbon steel spring frame with damped rubber buffers powers the seat return mechanism, with rubber damping pads at all pivot points to eliminate metal-on-metal noise. All metal components receive phosphating pre-treatment before electrostatic powder coating for extended wear resistance. For daily function, the seat uses a damped spring mechanism to lift silently to a vertical stored position in 3 seconds after use, rated for 50,000 return cycles. The rear-mounted writing tablet rotates 90 degrees outward from the backrest to a horizontal position, locking at a fixed 6.5-degree upward tilt ideal for writing or lightweight laptop use, and auto-locks flush against the back when stored; the pivot mechanism is rated for 30,000 operation cycles. The unit supports a maximum recommended user weight of 120 kg, with a seat static load capacity of 160 kg, and the paint film resists abrasion across 2,000 test cycles. Structural components carry a 6-year warranty. This chair is suited for permanent installation in auditoriums, theaters, lecture halls, corporate and government conference spaces, academic training classrooms, and high-occupancy public assembly venues, where its silent operation avoids event disruption, its wood finish complements formal interior schemes, and its fixed mounting aligns with public safety egress requirements. For procurement, note that each unit ships across two cartons, requires 40 minutes of assembly per set, and 135 sets can be loaded in a 20GP container at 85% space utilization; the armless end unit is intended exclusively for row terminal positions, not mid-row placement.

Fixed Auditorium End Chair with Rear Side Writing Tablet Specifications
