PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1770 × 820 × 1030 mm
3-seat ganged unit overall dimension	1770 x 820 x 1030 mm
Single seat center-to-center distance	590 mm
Seat height from finished floor	460 mm
Seat usable inner width	520 mm
Seat usable depth	500 mm
Armrest top height from floor	660 mm
Retracted seat unit depth (seats tipped up)	430 mm
Fully extended writing tablet usable size	350 x 260 x 12 mm
Writing tablet height above floor when deployed	750 mm
Minimum required row-to-row spacing for installation	1070 mm
Solid wood armrest pad dimension	370 x 80 x 40 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

3-seat ganged unit net weight	78 kg
Maximum recommended static load per seat	160 kg
Maximum vertical static load per armrest	250 kg
Seat cushion polyurethane foam density	60 kg/m³
Backrest polyurethane foam density	60 kg/m³
Seat foam rebound rate	60%
Tip-up seat mechanism fatigue cycle rating	100000 cycles
Metal frame anti-corrosion service life	5 years
Recommended service life under proper public venue maintenance	8 years
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and backrest upholstery	Dark flame-retardant fabric/PU leather, abrasion rating Level 4
Seat and backrest padding	140mm thick cold-cured high-resilience polyurethane foam on seats, 135mm thick on backs
Seat and back internal support panel	15mm thick multi-layer plywood, shaped for ergonomic contour
Armrest top surface	Finished solid oak/wood veneer with multi-layer clear paint finish
Armrest side panel	Upholstery-matched dark hard plastic/padded panel
Support frame and floor legs	1.5mm thick cold-rolled steel, pickling phosphating + electrostatic powder coating
Retractable writing tablet bracket	Die-cast aluminum alloy, silent rotating pivot, anti-panic release
Writing tablet surface	12mm thick multi-layer plywood with wear-resistant melamine finish, integrated pen slot
Floor mounting hardware	Galvanized steel expansion bolts, 2 fasteners per leg bracket
Seat pivot bushings	Wear-resistant nylon, silent soft-close buffer pads
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat operation mechanism	Gravity counterweight auto-return tip-up seat, silent soft-close when unoccupied
Writing tablet operation	180-degree swing-away retractable tablet, stows flush inside armrest when not in use
Tablet ergonomic setting	6.5-degree fixed tilt angle for comfortable writing, 350mm usable writing width
Floor mounting configuration	Fixed cantilever leg design, anchored directly to concrete/raised venue flooring
Row ganging design	Shared horizontal steel underframe connects all seats to form rigid continuous rows
Noise reduction feature	Nylon pivot bushings and soft-close buffers limit operation noise below 30dB
Surface durability feature	Powder-coated metal frame resists scratches and corrosion from high-traffic public use
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

College lecture hall installation	Fixed ganged configuration suits stepped lecture rooms, integrated tablet supports note-taking
Theater and performance venue use	High contoured backrest supports 2+ hour seated comfort for audience members
Corporate conference center installation	Quiet tip-up mechanism and professional finish suit formal meeting and event spaces
Government and institutional auditorium use	Fixed anchored design meets public venue safety and flame retardant requirements
Church and multi-purpose hall use	Flexible ganged configuration supports straight or curved row layouts for varied spaces
Recommended companion accessories	Row number plates, aisle LED lights, cup holders, under-seat USB power outlets
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12727:2000	Strength, durability and safety requirements for fixed auditorium seating
EN 1021-1:2014	Upholstered furniture ignitability resistance for smouldering cigarette sources
EN 13501-1:2018	Construction product fire classification, minimum B-s1,d0 for public seating

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to wood armrest components
GB/T 35457-2017	Safety, strength and durability requirements for theater and public venue seating
GB 20286-2006	Flame retardant performance requirements for public venue furniture, B1 grade mandatory
GB/T 17657-2013	Test method for surface physicochemical properties of wood-based panels

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to wood armrest components;
2. GB/T 35457-2017: Safety, strength and durability requirements for theater and public venue seating;
3. GB 20286-2006: Flame retardant performance requirements for public venue furniture, B1 grade mandatory;
4. GB/T 17657-2013: Test method for surface physicochemical properties of wood-based panels;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · AUD-3S-WT-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · AUD-3S-WT-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · AUD-3S-WT-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

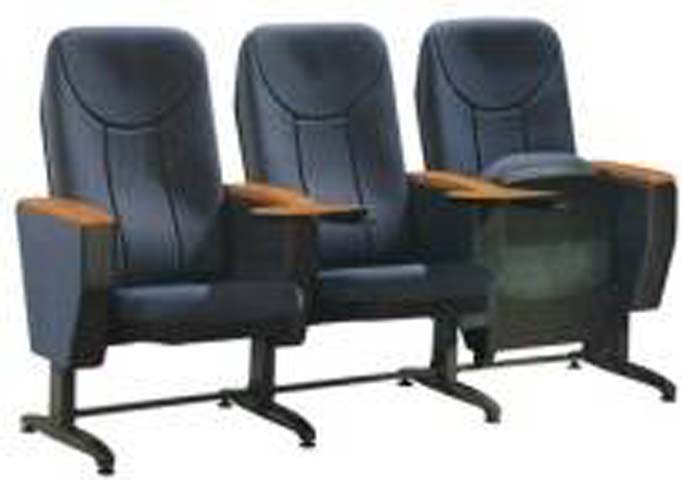

The 3-Seat Fixed Ganged Auditorium Chair with Retractable Writing Tablet and Wood Armrests, model AUD-3S-WT-001, is a purpose-built public seating solution designed for high-traffic shared venues. Delivered as unbranded, flat-packed units requiring 40 minutes of assembly per 3-seat set, each unit ships across two cartons, with logistics optimized for bulk transport to support large-scale venue fit-outs.
Visually, the seating presents a cohesive, professional profile: dark upholstered high-back seats and backs are paired with warm finished wood armrest tops, anchored by a slim, matte powder-coated metal frame that creates clean, unbroken sightlines when arranged in rows. When seats are tipped up for storage between uses, the unit maintains a narrow footprint that keeps aisles and circulation paths clear.
Construction centers on durable, high-use rated materials. The seat and backrest feature thick cold-cured high-resilience polyurethane foam, supported by shaped multi-layer plywood internal panels to deliver ergonomic contouring, wrapped in dark, abrasion-resistant, flame-retardant fabric or PU leather. Armrest tops are finished solid oak or wood veneer with multi-layer clear coating, paired with side panels matched to the upholstery tone. The support frame and floor legs are formed from thick cold-rolled steel, treated for corrosion and scratch resistance before powder coating, with galvanized steel expansion bolts for secure floor anchoring. The integrated retractable writing tablet uses a die-cast aluminum alloy bracket with silent pivot and anti-panic release, supporting a wear-resistant melamine-finished plywood surface with an integrated pen slot.
Functional design prioritizes usability and low disruption: gravity counterweight auto-return tip-up seats operate with silent soft-close action when unoccupied, with nylon bushings and buffers keeping operational noise below 30dB. The writing tablet swings 180 degrees to stow flush inside the armrest when unused, with a fixed 6.5-degree tilt to support comfortable writing. A shared horizontal steel underframe gangs seats into rigid continuous rows, suitable for both straight and curved layouts, with each seat rated for 160kg of static load, and armrests rated for 250kg of vertical static load.
This seating is well suited for college lecture halls, where the integrated tablet supports consistent note-taking and the stepped-floor compatible fixed mount aligns with tiered room design; theaters and performance venues, where the contoured high back supports extended seated comfort for audiences; corporate conference centers, where quiet operation and polished finish suit formal events; government and institutional auditoriums, where the anchored fixed design and flame-retardant materials align with public venue requirements; and church or multi-purpose halls, where flexible ganging supports custom row arrangements. When planning procurement, note that companion accessories including row number plates, aisle LED lights, cup holders, and under-seat USB power outlets are available to customize installations to specific venue needs, and bulk orders can leverage optimized container loading for cost-effective delivery.

3-Seat Fixed Ganged Auditorium Chair with Retractable Writing Tablet and Wood Armrests Specifications
