PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1180 × 880 × 1020 mm
Overall unit dimensions (open seat, extended tablet)	1180 x 880 x 1020 mm
Seat center-to-center distance	590 mm
Seat height from finished floor	450 mm
Inner usable seat width	490 mm
Backrest total height above seat	570 mm
Armrest top height above floor	620 mm
Wood armrest cap dimensions	435 x 82 x 30 mm
Retractable writing tablet dimensions	298 x 286 x 18 mm
Seat depth (tip-up position closed)	240 mm
Seat depth (open, seated position)	490 mm
Floor base plate footprint per stanchion	220 x 120 mm
Aisle end panel thickness	15 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per-seat net weight	35 kg
Recommended static seat load	260 kg
Seat foam density (back cushion)	55 kg/m³
Seat foam density (seat cushion)	60 kg/m³
Back cushion foam thickness	125 mm
Seat cushion foam thickness	100 mm
Fabric upholstery abrasion resistance	50000 Martindale cycles
Steel frame salt spray resistance	24 h
Standard manufacturer warranty	5 years
Seat tip-up mechanism cycle life	100000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Structural support frame	2.0mm cold-rolled steel, phosphated and electrostatic powder coated
Seat and back inner support board	15mm multi-layer plywood, molded to ergonomic curvature
Cushion padding	Cold-molded high-resilience PU foam, layered density design
Upholstery covering	Stain-resistant commercial fabric/PU leather, flame-retardant grade available
Armrest top caps	Solid beech/oak wood, clear matte lacquer finish
Writing tablet surface	18mm MDF core with fireproof laminate, rounded ABS edge banding
Tablet support arm	14mm cold-drawn solid steel, black matte powder coat
Aisle end panel	Perforated brown wood-composite acoustic panel, clear lacquer finish
Floor fixing hardware	Galvanized hex expansion bolts, anti-corrosion coated
Seat return mechanism	Torsion spring with hydraulic damper, quiet slow return
Side modesty panels (inner seats)	Matte light grey HPL panel, edge-banded
Lower leg trim	Vertical ribbed aluminum alloy trim, matte silver finish

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat tip-up operation	Spring-damped automatic quiet return to vertical position when unoccupied
Writing tablet operation	360° rotating fold-out mechanism stored flush in armrest when unused
Row ganging system	Modular shared stanchion design allows continuous connected row installation
Floor mounting	Permanent bolt-down installation to concrete or raised tiered floors via base plates
Acoustic performance	Perforated aisle end panel provides sound diffusion for auditorium spaces
Seat ergonomics	Curved high backrest supports upper back for long-duration seated events
Tablet load capacity	10 kg static load, supports notebooks, laptops and writing materials
Customization option	Upholstery color, wood finish and tablet material configurable per project
Accessory compatibility	Supports optional row/seat number plates, cup holders and book nets
Edge protection	All wood and panel edges feature rounded, impact-resistant edge banding
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Lecture hall and university auditorium	Fixed tiered installation for academic lectures and presentations, with writing surface for note-taking
Conference center and assembly hall	Permanent ganged rows for large meetings, conferences and formal events, high durability for frequent use
Government and public institution meeting room	Formal fixed seating with wood finish accents for official assembly spaces, acoustic panel for improved room sound
Cinema and performing arts theater (premium)	Tip-up seat design with optional custom upholstery, configured without tablet for performance venues
Corporate training room tiered seating	Fixed row installation for long-duration training sessions, padded cushions for attendee comfort
Courtroom and formal hearing room	Permanent fixed seating with writing tablets for attendees and staff, durable upholstery for high-traffic public access
Church and religious assembly space	Ganged fixed rows for congregation seating, quiet tip-up mechanism minimizes service disruption
Recommended Matching Desk Size	2.4 m executive desk

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 13761:2002	Furniture - Seating for auditorium, cinema and similar areas, safety requirements
EN 1022:2018	Furniture - Seating - Determination of stability
EN 1021-1:2014	Furniture - Upholstered furniture ignitability (smouldering cigarette)
EN 12727:2000	Furniture - Test methods for strength and durability of auditorium seating

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.11-2015	Standard for heavy-duty public seating, structural load and durability

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to wood panels and armrests
GB/T 35607-2017	Public furniture seating for assembly venues, dimensional and safety requirements
GB 20286-2006	Flame retardant requirements for public place furniture and components
GB/T 4893.8-2013	Surface abrasion resistance test for furniture finishes

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to wood panels and armrests;
2. GB/T 35607-2017: Public furniture seating for assembly venues, dimensional and safety requirements;
3. GB 20286-2006: Flame retardant requirements for public place furniture and components;
4. GB/T 4893.8-2013: Surface abrasion resistance test for furniture finishes;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · AUD-TAB-590W

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · AUD-TAB-590W

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · AUD-TAB-590WOpen Export Tool

Quick Actions

Post an RFQ

Product Description

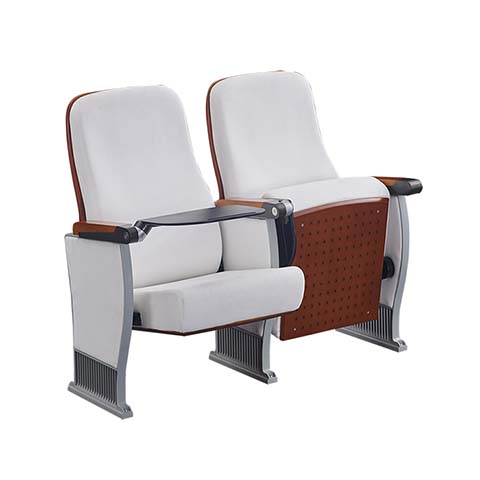

The Fixed Ganged 2-Seat Auditorium Chair with Retractable Writing Tablet, model AUD-TAB-590W, is a purpose-built unbranded fixed seating solution designed for high-traffic public and institutional gathering spaces. Visually, it presents a cohesive, formal profile with soft upholstered seat and back cushions, warm solid wood armrest caps, smooth powder-coated steel structural elements, and rich brown perforated wood-composite end panels that add subtle textural contrast suited to refined public interiors. Its modular ganged layout uses shared stanchions to create continuous, aligned rows, with a streamlined profile that maintains clear sightlines when seats are in the tipped-up, unoccupied position. Constructed for long-term heavy use, the chair features a 2.0mm cold-rolled steel frame finished with phosphate treatment and electrostatic powder coating for corrosion resistance, supported by molded multi-layer plywood inner seat and back boards shaped to ergonomic curvature. Cushions are padded with cold-molded high-resilience PU foam in a layered density design, wrapped in stain-resistant commercial fabric or PU leather, with a flame-retardant upholstery option available. Solid beech or oak armrest caps carry a clear matte lacquer finish, while aisle end panels are perforated wood-composite with a clear lacquer coat, and the retractable writing tablet uses an MDF core with fireproof laminate and rounded ABS edge banding, mounted on a cold-drawn solid steel support arm. All units are secured to concrete or raised tiered floors with galvanized, anti-corrosion coated hex expansion bolts. Functionally, the chair delivers user comfort and operational practicality for extended events: its curved high backrest supports the upper back to reduce fatigue during long sessions, while spring-damped mechanisms return unoccupied seats to a vertical position quietly to minimize disruption. The 360-degree rotating writing tablet folds flush into the armrest when not in use, providing a stable surface for notebooks, laptops, and writing materials when deployed, with sufficient static load capacity for standard personal work items. Perforated end panels support balanced room acoustics via sound diffusion, and the ganged modular design simplifies consistent row configuration. This seating is well suited for a wide range of formal spaces, including university lecture halls and auditoria, conference centers and assembly halls, government and public institution meeting rooms, premium cinemas and performing arts theaters (configurable without the writing tablet for performance use), tiered corporate training rooms, and courtrooms or formal hearing rooms. For procurement, planners should account for permanent bolt-down installation requirements aligned with their floor type, select appropriate upholstery specifications to match usage intensity and fire safety needs, and note that each set ships across two cartons, with straightforward on-site assembly per unit. Configurations without the writing tablet are available for venues where note-taking surfaces are not required, allowing flexible adaptation to different space programming needs.

Fixed Ganged 2-Seat Auditorium Chair with Retractable Writing Tablet Specifications
