PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1160 × 780 × 1020 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Unit total weight (2 seats)	48 kg
Static load per seat	150 kg
Seat cushion foam density	45 kg/m³
Backrest foam density	35 kg/m³
Writing tablet static load capacity	25 kg
Seat tip-up mechanism cycle life	50000 cycles
Recommended number of users	2
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back upholstery	Blue woven polyester fabric, 300g/m² weight
Cushion core	High resilience polyurethane foam, 60mm thickness
Armrest caps	Stained solid beech wood, high-gloss lacquer finish
Structural frame	2.0mm thick powder-coated carbon steel
Seat underside back panel	Injection-molded black polypropylene, vented grille design
Writing tablet surface	High-pressure matte white laminate, 12mm thickness
Writing tablet support arm	1.5mm thick black powder-coated steel
Internal seat support pan	1.2mm thick cold-rolled steel plate
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat tip-up mechanism	Gravity-activated automatic return, folds upright when unoccupied
Side writing tablet	Fold-away swivel design, rotates out from right armrest for use
Floor mounted installation	Permanent bolt-down fixed leg brackets, secured to venue flooring
Connected row configuration	Modular interlocking design, connects to adjacent seat units
Contoured lumbar support	Molded backrest with raised central lumbar zone
Upholstery seam construction	Double-stitched vertical panel seams, 8mm stitch pitch
Vented rear seat panel	Grille-patterned PP back panel, allows air circulation
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Cinema and theater venues	Fixed row installation for multi-guest viewing, provides egress space with tip-up seats
University lecture halls	Integrated writing tablet supports note-taking and laptop use during classes
Corporate conference auditoriums	Professional blue upholstery fits formal event and presentation spaces
Government assembly halls	Bolt-down fixed installation meets public venue security and stability requirements
Performing arts centers	Contoured padded seating provides guest comfort for multi-hour performances
Training center classrooms	Folding tablet supports training materials and exam writing for education programs
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Auditorium seating safety	EN 12727:2000
Upholstered furniture flame retardancy	EN 1021:2014
Furniture surface durability	EN 14434:2004

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Public seating safety requirement	GB/T 35458
Furniture fabric flame retardancy	GB 20286
Steel frame coating performance	GB/T 1993

Standardized tender description text

This product must meet the following technical requirements:
1. Public seating safety requirement: GB/T 35458;
2. Furniture fabric flame retardancy: GB 20286;
3. Steel frame coating performance: GB/T 1993;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · AUD-2SEAT-BLU-WT

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · AUD-2SEAT-BLU-WT

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · AUD-2SEAT-BLU-WTOpen Export Tool

Quick Actions

Post an RFQ

Product Description

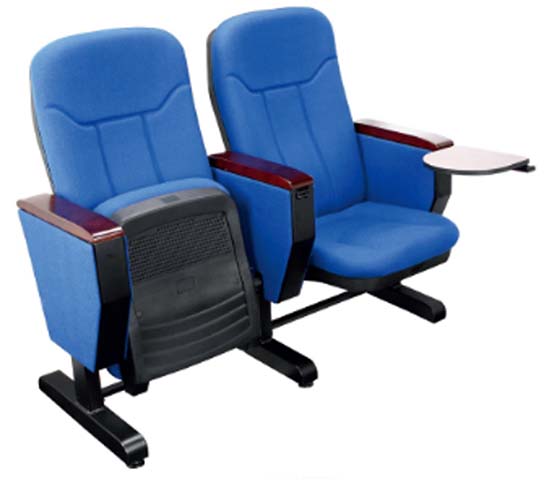

This two-seat upholstered auditorium chair, model AUD-2SEAT-BLU-WT, is an unbranded fixed-row seating solution designed for high-traffic public gathering spaces. Its visual design balances formal, polished aesthetics with functional layout: the rich blue woven polyester upholstery features double-stitched vertical panel seams with an 8mm stitch pitch for a tailored, durable finish, paired with stained solid beech wood armrest caps finished in high-gloss lacquer for a refined touch. The contoured backrest includes a raised 240mm tall central lumbar support zone, with a vented black injection-molded polypropylene rear panel featuring a grille pattern that sits flush when seats are in the folded, upright position. The matte white laminate writing tablet tucks discreetly against the right armrest when not in use, creating a clean, unobstructed row profile. The unit is built for long-term heavy use, anchored by a 2.0mm thick powder-coated carbon steel structural frame, with permanent bolt-down leg brackets designed to secure directly to venue flooring. Each seat features a 90mm thick cushion cored with high-resilience polyurethane foam at 45 kg/m³ density, paired with a 70mm thick 35 kg/m³ density padded backrest, supported internally by a 1.2mm cold-rolled steel pan and 14mm bent plywood support board. The gravity-activated automatic tip-up seat returns to an upright position when unoccupied, tested to 50000 operation cycles, with a 150kg static load capacity per seat. The 12mm thick high-pressure laminate writing tablet extends via a 1.5mm powder-coated steel swivel arm from the right armrest, supporting up to 25kg of static load for note-taking, laptop use, or training materials. The modular interlocking design connects seamlessly to adjacent units to form continuous, orderly rows, with 540mm of clear width between armrests for comfortable guest access. This seating model is suited for a range of formal public spaces: cinemas and performing arts centers, where the tip-up design maintains clear egress paths and contoured padding supports comfort during multi-hour performances; university lecture halls and training center classrooms, where the integrated folding tablet accommodates notes, devices, and exam materials; corporate conference auditoriums, where the professional blue upholstery aligns with formal event branding; and government assembly halls, where the bolt-down installation delivers the stable, secure fixed configuration required for public venues. When procuring this model, note that each two-seat unit ships across two cartons, with a total packaged weight of 23kg per set and a reference assembly time of 40 minutes per unit. The modular interlocking design allows for streamlined configuration of custom row lengths, and the fixed bolt-down installation requires pre-measurement of venue flooring to align mounting brackets with planned layout clearances. For large-scale orders, a 20GP shipping container can hold 135 sets at 85% space utilization, supporting efficient bulk deployment for full venue outfitting.

Two-Seat Upholstered Auditorium Chair with Folding Writing Tablet Specifications
