PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	580 × 720 × 1020 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

unit net weight	35 kg
recommended static seat load	160 kg
seat return mechanism cycle rating	100000 cycles
upholstery abrasion resistance	50000 Martindale cycles
back panel acoustic absorption coefficient	0.5
fabric formaldehyde content	20 mg/kg
powder-coated steel frame corrosion resistance	48 hours salt spray
warranty period for structural components	5 years
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

seat and back upholstery	B1 flame-retardant velvet fabric
seat cushion core	60 kg/m³ cold-cure molded PU foam
backrest cushion core	60 kg/m³ cold-cure molded PU foam
armrests	Solid beech wood, 8-layer PU paint finish
side frame panels	16 mm 7-layer molded hardwood plywood, dark veneer
inner seat/back support panels	15 mm molded multilayer plywood
pedestal and frame structure	2.5 mm thick cold-rolled steel, matte powder coat
seat return damper	Hydraulic soft-close damper with silent rubber buffers
mounting hardware	4 M8 x 60 mm expansion screws per unit
decorative trim	Polished chrome-plated steel edging
seam construction	Reinforced nylon thread, 8 stitches per 30mm seam pitch
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

seat operation	Gravity-assisted damped tip-up seat, automatic silent return when unoccupied
installation	Permanent floor-mounted single pedestal, gangable for continuous row assembly
ergonomic support	Segmented horizontal backrest padding provides targeted lumbar support for long-duration seating
identification mounting	Integrated side panel mounting point for seat/row number plates
accessory compatibility	Pre-drilled mounting points for optional writing tablets, book racks or cup holders
backrest position	Fixed 105° upright angle optimized for lecture, performance and conference viewing
noise control	Rubber limit stops and damped return eliminate impact noise during seat folding, suitable for quiet event environments
arrangement flexibility	Modular ganged design allows straight, curved or tiered row configuration to match venue floor plans
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

auditorium and assembly halls	Fixed ganged configuration with quiet return suits multi-hour lectures, ceremonies and formal events
cinema and performing arts theaters	Ergonomic lumbar support and fixed viewing angle suit extended film and performance viewing
conference centers and lecture halls	Modular design supports flexible row arrangements, integrated number plates for assigned seating
government and institutional meeting rooms	Durable heavy-usage construction meets public sector procurement requirements for long service life
church and worship venues	Comfortable upright seating supports long services, optional book rack accessories available
school and university auditoriums	High abrasion resistance and low maintenance withstand high daily student traffic
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1022:2018	Seating furniture stability test standard for fixed permanently installed public seating
EN 13761:2002	Auditorium seating functional and safety requirements for public assembly areas

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.11-2015	Large occupant seating static load test, applicable to general public universal use seating
ANSI/BIFMA X5.4-2020	Lounge and public seating durability and safety standard, applicable to fixed assembly seating
ANSI/BIFMA X5.41-2020	Seating furniture structural integrity test for permanently installed public seating

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB 20286-2006	Flame retardant classification for public venue upholstered furniture, required B1 grade for seating components
GB/T 3324-2017	General technical requirements for wooden furniture, applicable to solid wood armrest and plywood panels
GB/T 3325-2017	General technical requirements for metal furniture, applicable to steel pedestal and frame components
GB 18584-2001	Indoor decoration material formaldehyde emission limit for wooden furniture, ≤20mg/kg requirement

Standardized tender description text

This product must meet the following technical requirements:
1. GB 20286-2006: Flame retardant classification for public venue upholstered furniture, required B1 grade for seating components;
2. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to solid wood armrest and plywood panels;
3. GB/T 3325-2017: General technical requirements for metal furniture, applicable to steel pedestal and frame components;
4. GB 18584-2001: Indoor decoration material formaldehyde emission limit for wooden furniture, ≤20mg/kg requirement;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · AUD-RED-PED-580W

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · AUD-RED-PED-580W

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · AUD-RED-PED-580WOpen Export Tool

Quick Actions

Post an RFQ

Product Description

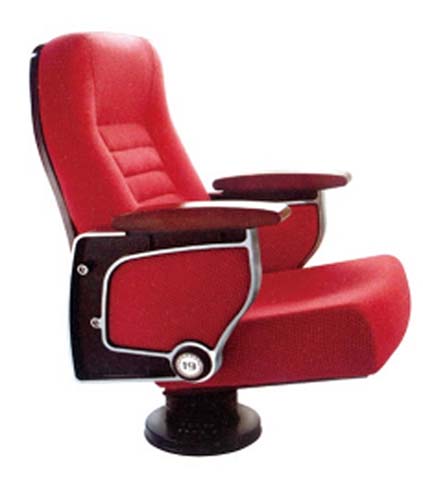

This Red Upholstered Fixed Pedestal Auditorium Chair (model AUD-RED-PED-580W, unbranded) presents a streamlined, cohesive form designed for seamless continuous row installation in public venues. Its deep red B1 flame-retardant velvet upholstery pairs with warm dark wood veneer side frames and smooth solid beech wood armrests finished with 8 layers of PU paint, balanced by a matte powder-coated cold-rolled steel single pedestal for a polished, professional aesthetic that complements both traditional and contemporary venue interiors. The chair’s fixed 105-degree upright backrest angle supports unobstructed viewing for audiences, with clear 540 mm width between armrests, 90 mm thick seat cushions, 70 mm thick back padding, and a 240 mm tall targeted lumbar support zone built into segmented horizontal back padding. Its structure is engineered for long-term heavy public use: 60 kg/m³ cold-cure molded PU foam forms both seat and back cores, supported by 15 mm molded multilayer plywood inner panels and 16 mm 7-layer molded hardwood plywood side frames, anchored to a 2.5 mm thick cold-rolled steel pedestal secured with four M8 x 60 mm expansion screws per unit. Each chair weighs 35 kg net, with a recommended static seat load of 160 kg, 50,000 Martindale cycle abrasion resistance on upholstery, 48 hours of salt spray corrosion resistance on the powder-coated steel frame, 100,000 cycle rating for its gravity-assisted hydraulic soft-close tip-up seat with silent rubber buffers, 0.5 acoustic absorption coefficient on back panels, and 20 mg/kg fabric formaldehyde content. Functional design details include automatic silent seat return when unoccupied to eliminate aisle obstruction, rubber limit stops that prevent impact noise in quiet environments, integrated mounting points for seat or row number plates, and pre-drilled positions for optional writing tablets, book racks, or cup holders. The chair is suited for a wide range of public gathering spaces, including auditoriums, assembly halls, cinemas, performing arts theaters, conference centers, lecture halls, government and institutional meeting rooms, worship venues, and school and university auditoriums, where it supports multi-hour events, assigned seating layouts, and high daily foot traffic with low maintenance requirements. For procurement, note that each unit ships across two cartons, requires 40 minutes of on-site assembly per set, and 135 sets can be loaded into a 20GP container at 85% space utilization; the ganged, floor-mounted design requires advance coordination with venue floor conditions to ensure secure installation for continuous row arrangements.

Red Upholstered Fixed Pedestal Auditorium Chair with Solid Wood Armrests Specifications
