PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	620 × 680 × 1020 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight per seat	28 kg
Static seat load capacity	150 kg
Seat tip-up cycle life	100000 cycles
Fabric abrasion resistance	50000 Martindale cycles
Seat cushion foam density	45 kg/m³
Backrest foam density	35 kg/m³
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles
Five-star Base Static Load Reference	Acceptance target ≥120 kg; chair reference load 150 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back upholstery	Woven polyester fabric
Seat cushion padding	High-resilience polyurethane foam
Backrest padding	High-resilience polyurethane foam
Armrests	Stained solid beech wood
Support pedestal	Die-cast aluminum alloy
Writing tablet surface	Plywood with wood veneer
Writing tablet bracket	Powder-coated cold-rolled steel
Seat hinge mechanism	Zinc-plated steel hardware
Inner seat frame	1.8mm thick cold-rolled steel tube
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat operation	Gravity-activated automatic tip-up seat
Writing tablet operation	Side-mounted retractable fold-out tablet
Installation method	Floor-mounted fixed pedestal
Row configuration	Side-by-side ganging compatible
Tablet position lock	Automatic horizontal lock when deployed
Surface maintenance	Stain-resistant fabric finish
Noise damping	Silent seat return buffer
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Lecture hall seating	Fixed installation for university and college lecture spaces
Theater and auditorium use	Suitable for performing arts venues and cinemas
Conference center installation	Used in large meeting rooms and convention halls
Government assembly hall seating	Appropriate for council chambers and public meeting rooms
Corporate training room use	Installed in dedicated in-house training facilities
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12727:2000	Seating for auditoriums and arenas - Mechanical safety requirements
EN 1021-1:2014	Furniture upholstery fire resistance - Cigarette ignition test

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture
GB 20286-2006	Flame retardant performance of public venue furniture
GB/T 10357.3-2013	Furniture mechanical performance test for seating strength

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture;
2. GB 20286-2006: Flame retardant performance of public venue furniture;
3. GB/T 10357.3-2013: Furniture mechanical performance test for seating strength;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · AUD-RED-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · AUD-RED-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · AUD-RED-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

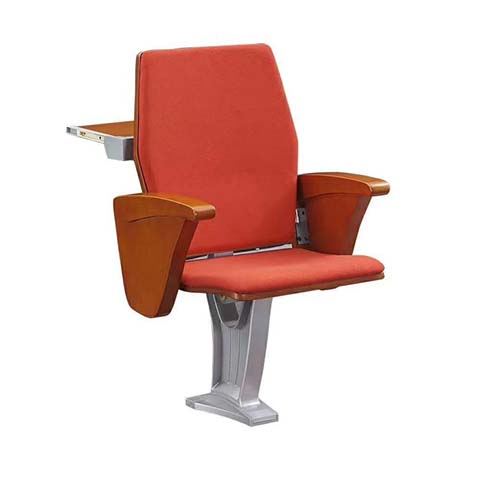

The Fixed Auditorium Chair with Retractable Writing Tablet, model AUD-RED-001, is a purpose-built public seating solution delivered as unbranded auditorium seating, engineered to support consistent high-traffic use across formal public gathering spaces. Its visual profile presents a streamlined, structured silhouette suited to orderly row layouts, with smoothly contoured upholstered seat and back surfaces, warm stained solid beech wood armrests, and a slender matte-finish die-cast aluminum support pedestal that creates an open, uncluttered sightline for venue audiences. The side-mounted retractable writing tablet sits flush with the armrest assembly when folded, preserving clean, uniform row aesthetics when not in use. Overall dimensions measure 620 x 680 x 1020 mm, with 540 mm of clear width between armrests, a 90 mm thick seat cushion, 70 mm thick padded backrest, and a 240 mm tall dedicated lumbar support zone, all balanced to deliver consistent postural support for extended sitting periods. Construction prioritizes long-term durability through a layered material specification: seat and back surfaces are wrapped in woven polyester fabric with a stain-resistant finish, padded with high-resilience polyurethane foam at 45 kg/m³ density for the seat (with 65% rebound performance) and 35 kg/m³ density for the back. Structural components include a 1.8mm thick cold-rolled steel inner seat frame, zinc-plated steel hinge hardware, powder-coated cold-rolled steel brackets for the writing tablet, a die-cast aluminum alloy support pedestal, stained solid beech wood armrests, and a plywood with wood veneer surface for the writing tablet, all assembled with steel fasteners. Functional design is tailored to public venue operational needs: the seat uses a gravity-activated automatic tip-up mechanism with a silent return buffer to reduce disturbance during entry and exit, rated for 100000 tip-up cycles, while the side-mounted fold-out writing tablet locks automatically in a horizontal position when deployed for stable note-taking or device placement. The floor-mounted fixed pedestal supports side-by-side ganging for continuous row configurations, the fabric achieves 50000 Martindale cycles of abrasion resistance to withstand frequent use, and the static seat load capacity reaches 150 kg per seat, with each unit weighing 28 kg net. This seating model is suitable for fixed installation in university and college lecture halls, performing arts venues, cinemas, large conference center meeting rooms, convention halls, government council chambers, public assembly rooms, and dedicated corporate in-house training facilities. For procurement planning, each unit ships across 2 cartons with a total packaged gross weight of 23 kg per set, requiring 40 minutes of assembly time per seat. Carton dimensions measure 850×420×720 mm per set, with a total carton volume of 0.26 m³ per set, allowing 135 sets to be loaded in a 20GP container at 85% space utilization.

Fixed Auditorium Chair with Retractable Writing Tablet Specifications
