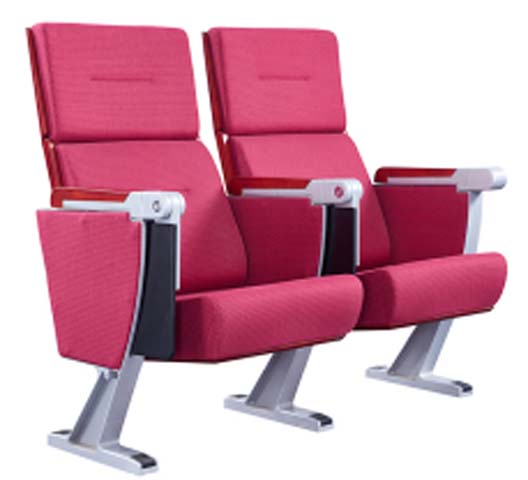

Product supplier2-Seat Ganged Floor-Mounted Auditorium Seating with Integrated Cup Holders, Polyester commercial fabric with optional flame-retardant treatment
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1200 × 760 × 1050 mm | |
|---|---|---|
| Overall unit dimensions (2-seat row) | 1200 x 760 x 1050 mm | |
| Single seat center distance | 600 mm | |
| Seat height from floor | 450 mm | |
| Armrest top height from floor | 630 mm | |
| Seat cushion depth | 460 mm | |
| Seat cushion inner width | 525 mm | |
| Backrest height from seat pan | 600 mm | |
| Armrest width per stanchion | 80 mm | |
| Floor mounting foot plate length | 310 mm | |
| Recommended minimum row-to-row spacing | 1000 mm | |
| Support leg outrigger base width | 120 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Single seat static load capacity | 150 kg | |
|---|---|---|
| Seat foam density | 60 kg/m³ | |
| Back foam density | 55 kg/m³ | |
| Seat cushion foam thickness | 135 mm | |
| Backrest foam thickness | 120 mm | |
| Fabric Martindale abrasion resistance | 50000 cycles | |
| Unit net weight per single seat | 28 kg | |
| Seat return mechanism cycle life | 100000 cycles | |
| Standard warranty period | 5 years | |
| Available fabric color options | 30 |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat and back upholstery | Polyester commercial fabric with optional flame-retardant treatment | |
|---|---|---|
| Seat internal core panel | 15 mm thick bent hardwood plywood | |
| Back internal core panel | 17 mm thick 7-layer bent hardwood with veneer | |
| Internal seat frame | 1.6 mm thick powder-coated cold-rolled steel | |
| Floor support legs | 3.5 mm wall thickness die-cast ADC12 aluminum alloy | |
| Armrest top trim | Painted solid beech wood with clear lacquer finish | |
| Armrest structural stanchion | Powder-coated die-cast aluminum with black ABS accent panel | |
| Integrated cup holder | Injection-molded black PP recess | |
| Floor mounting hardware | Electroplated hex socket expansion bolts with anti-corrosion coating | |
| Outer side panels | Fabric-covered molded composite panel | |
| Seam stitch pitch | 8 mm | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seat return mechanism | Dual spring with hydraulic damper automatic tip-up return | |
|---|---|---|
| Installation method | Permanent floor-mounted anchoring to concrete substrate | |
| Integrated cup holder feature | 80 mm diameter recessed PP holder per armrest | |
| Ganged row connection | Interlocking metal bracket linking adjacent seat units | |
| Backrest support | Fixed ergonomic 105-degree recline with lumbar contour | |
| Armrest configuration | Shared stanchion armrest between adjacent seats, full arm at row ends | |
| Seat pan design | Contoured waterfall front edge to reduce leg pressure | |
| Acoustic design option | Perforated back panel for sound absorption (optional) | |
| Accessory compatibility | Pre-drilled mounts for row/seat number plates and under-seat book nets | |
| Backrest recline angle from vertical | 105 deg | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Cinema and movie theater venues | Fixed row seating with integrated cup holders for concession beverage storage | |
|---|---|---|
| University and corporate lecture halls | Durable ergonomic seating for extended lectures and presentations | |
| Performing arts auditoriums and theaters | Ganged configuration with uniform sightlines for stage viewing | |
| Conference center assembly halls | High-density seating for large events, conferences and ceremonies | |
| Government and public council chambers | Formal fixed seating with durable commercial-grade construction | |
| Religious worship and church sanctuaries | Comfortable long-duration seating for congregational use | |
| School auditorium and performance spaces | Wear-resistant construction suitable for high student traffic | |
| Recommended Matching Desk Size | 2.4 m executive desk |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 12727:2000 | Applies to strength, durability and safety requirements for public auditorium seating | |
|---|---|---|
| EN 1021-1:2014 | Applies to upholstered furniture ignition resistance from smoldering cigarettes | |
| EN 1021-2:2014 | Applies to upholstered furniture ignition resistance from match flame sources | |
| EN 13761:2002 | Applies to ergonomic and dimensional requirements for spectator seating |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.11-2015 | Applies to heavy-duty public seating load and durability performance criteria |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB 18584-2001 | Applies to formaldehyde emission limits for wood-based furniture components used in the seat | |
|---|---|---|
| GB 20286-2006 | Applies to flame retardant performance requirements for upholstered furniture in public assembly venues | |
| GB/T 35457-2017 | Applies to safety, strength and durability requirements for public seating furniture |
Standardized tender description text
This product must meet the following technical requirements: 1. GB 18584-2001: Applies to formaldehyde emission limits for wood-based furniture components used in the seat; 2. GB 20286-2006: Applies to flame retardant performance requirements for upholstered furniture in public assembly venues; 3. GB/T 35457-2017: Applies to safety, strength and durability requirements for public seating furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
