PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1100 × 400 × 790 mm
Overall unit dimensions (double seat)	1100 x 400 x 790 mm
Single student position width	650 mm
Desktop thickness	25 mm
Desktop front edge height from floor	760 mm
Floor anchor foot plate length	320 mm
Floor anchor hole center distance	295 mm
Under-desk wire rack internal dimensions	430 x 220 x 105 mm
Curved modesty panel thickness	18 mm
Seated knee clearance height under desktop	660 mm
Support bracket steel thickness	2 mm
Wire rack steel bar diameter	5 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Single unit net weight	28 kg
Desktop vertical static load capacity	150 kg
Frame structure service life	10 years
Powder coated metal surface salt spray resistance	48 hours
Laminate desktop abrasion resistance	2000 cycles
Seating capacity per unit	2 students
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Writing desktop substrate	E1-grade medium density fiberboard
Desktop edge banding	1.5mm thick PVC edge banding
Support frame legs	2mm thick cold-rolled steel
Structural support brackets	2mm thick triangular steel gussets
Curved front modesty panel	18mm thick multi-layer plywood
Under-desk storage rack	5mm diameter cold-drawn steel wire mesh
Floor anchoring hardware	Grade 8.8 hex socket expansion bolts
Frame surface treatment	Epoxy-polyester powder coating
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Installation method	Permanent floor-mounted fixed row installation
Writing surface orientation	3-degree sloped writing top
Under-desk storage function	Open wire mesh rack for bag and book storage
Privacy function	Full-height curved modesty panel
Row alignment feature	Pre-drilled adjacent unit connection holes
Cable management compatibility	Rear frame gap for optional cable routing
Seating coordination	Compatible with fixed return-mechanism lecture seats
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Tiered university lecture halls	Permanent fixed row installation for stepped classroom seating layouts
College training auditoriums	Durable construction for high-frequency daily student use in large capacity spaces
Public school multimedia classrooms	Coordinated installation with fixed seating for standardized teaching spaces
Corporate training center fixed seating	Uniform row configuration for long-term training and seminar use
Examination hall seating	Fixed position layout with privacy panels to support secure exam administration
Recommended paired configuration	Install with matching slow-return fixed lecture seats for complete row sets

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1729-1:2015	Applicable European standard for educational furniture functional dimensions and safety
EN 1729-2:2012	Applicable European standard for educational furniture strength and durability testing
EN 13722:2004	Applicable standard for furniture surface resistance to cold liquids for laminate tops

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB 18580-2017	Applicable standard for formaldehyde emission limits for wood-based panel components
GB/T 3324-2017	Applicable general technical standard for wooden furniture durability and performance
GB 28007-2011	Applicable safety standard for children and student furniture structural safety

Standardized tender description text

This product must meet the following technical requirements:
1. GB 18580-2017: Applicable standard for formaldehyde emission limits for wood-based panel components;
2. GB/T 3324-2017: Applicable general technical standard for wooden furniture durability and performance;
3. GB 28007-2011: Applicable safety standard for children and student furniture structural safety;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LHD-650-FW25

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LHD-650-FW25

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LHD-650-FW25Open Export Tool

Quick Actions

Post an RFQ

Product Description

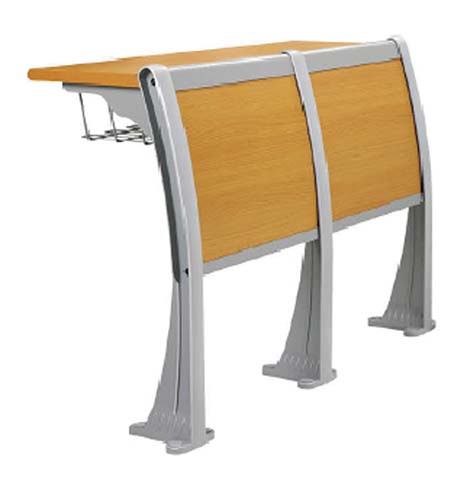

The Fixed Floor-Mounted Lecture Hall Double Student Desk with Wire Mesh Rack, model LHD-650-FW25, is a purpose-built unbranded public seating solution designed for high-traffic learning and training environments. Each unit accommodates two students in a streamlined, row-aligned form, with a gently sloped writing surface and continuous curved modesty panel that creates a clean, consistent visual profile across extended seating rows. The permanent floor-mounted design anchors units securely to finished flooring, with pre-drilled connection points that enable seamless alignment between adjacent desks for uniform, unbroken row layouts. The desk’s structure is engineered for long-term durability, starting with a cold-rolled steel frame finished in scratch-resistant epoxy-polyester powder coating, reinforced with triangular steel gussets at major load-bearing joints and secured with heavy-duty connectors and Grade 8.8 hex socket expansion bolts for floor anchoring. The desktop and curved modesty panel use E1-grade wood-based materials: the desktop features medium density fiberboard with protective PVC edge banding, while the modesty panel uses thick multi-layer plywood to provide a smooth, cohesive front finish. Beneath each student position, an open cold-drawn steel wire mesh rack sits integrated into the frame, offering ventilated storage without adding unnecessary visual bulk. Functional details support daily use in structured spaces: the 3-degree sloped writing top offers a comfortable surface for note-taking and writing, while the full-height curved modesty panel delivers sightline privacy between desk rows. A rear frame gap supports optional cable routing for multimedia or device power access, and the desk is designed to pair seamlessly with fixed return-mechanism lecture seats for complete, coordinated seating sets. The open under-desk rack provides dedicated space for students to store bags, books, and personal items during sessions, keeping the writing surface clear. This desk is suited for permanent installation in tiered university lecture halls, college training auditoriums, K-12 public school multimedia classrooms, corporate training centers, and formal examination halls, where fixed, standardized seating layouts support consistent, high-frequency use. Its robust construction holds up to daily heavy student traffic across multi-year deployments. When procuring, planners should account for permanent floor anchoring requirements, plan for paired compatible fixed seating to complete row configurations, note that each unit ships across two cartons with a corresponding assembly time per set, and confirm that floor substrates are suitable for expansion bolt installation to ensure long-term structural stability.
