PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1200 × 860 × 1050 mm
Single-seat center distance	600 mm
Seat height from floor	450 mm
Seat cushion usable dimensions	580 x 460 mm
Backrest height from seat	600 mm
Unfolded writing tablet dimensions	400 x 280 x 12 mm
Armrest height from floor	630 mm
Fully opened depth with tablet deployed	860 mm
Minimum required row spacing	1000 mm
Folded seat depth (tip-up position)	520 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per-seat net weight	35 kg
Recommended per-seat static load	160 kg
Seat foam density	60 kg/m³
Backrest foam density	55 kg/m³
Foam rebound rate	50%
Fabric abrasion resistance	80000 cycles
Fabric color fastness (dry/wet rub)	Grade 5
Seat mechanism cycle life	100000 operations
Writing tablet static load capacity	50 kg
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back upholstery	Dark gray woven polyester fabric
Seat cushion padding	Cold-cured high-density PU foam
Backrest padding	Cold-cured high-density PU foam
Armrest caps	Light-colored birch plywood with clear lacquer finish
Folding writing tablet	Perforated light plywood panel
Armrest side panels	Black fabric-upholstered panels
Floor support legs	Polished chrome-plated steel T-base
Seat hinge mechanism	Zinc-plated steel with silent damping bushing
Writing tablet pivot hardware	Chrome-plated steel and PP+25%GF bushings
Internal seat support frame	1.5mm thick welded steel tubing
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Tip-up seat mechanism	Spring-damped automatic return
Fold-down writing tablet	Pivots 90° from stored vertical position to horizontal writing surface
Floor-mounted installation	Pre-drilled T-leg bases bolt directly to concrete or raised venue flooring
Ganged modular connection	Adjacent seats connect via shared armrest to form continuous rows
Silent operation damping	All pivot points include polymer bushings to eliminate impact noise
Tablet storage position	Folds flush into armrest side panel when not in use
Fixed ergonomic back support	Contoured tall back provides full lumbar and upper back support
Backrest fixed recline angle	105°
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

University lecture halls	Fixed ganged seating with writing tablets supports note-taking during long classes
Corporate conference and training rooms	Durable upholstered seating with clean professional finish for formal events
Auditoriums and assembly halls	Floor-mounted stable design suitable for high-capacity permanent venue installations
Government and public hearing rooms	Formal wood and chrome finish matches official interior design schemes
Cinema screening rooms (education/corporate)	Optional fire-retardant fabric meets public venue safety requirements
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Furniture strength and stability	EN 12727:2000
Upholstered furniture flammability	EN 1021:2006
Formaldehyde emission	EN 13986 E1 class

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Fabric flame retardancy	GB 20286 B1 level
Formaldehyde emission limit	GB 18584 ≤0.124mg/m³

Standardized tender description text

This product must meet the following technical requirements:
1. Fabric flame retardancy: GB 20286 B1 level;
2. Formaldehyde emission limit: GB 18584 ≤0.124mg/m³;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · AUD-2SEAT-WT01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · AUD-2SEAT-WT01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · AUD-2SEAT-WT01Open Export Tool

Quick Actions

Post an RFQ

Product Description

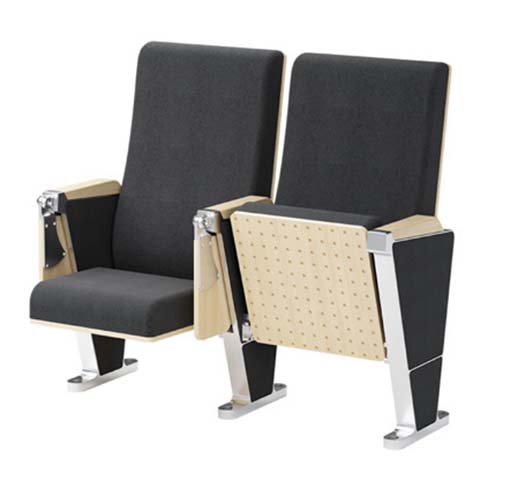

The Two-Seat Ganged Auditorium Chair with Folding Writing Tablet, model AUD-2SEAT-WT01, is an unbranded fixed modular row seating solution designed for permanent public venue installations. Visually, it presents a cohesive, professional aesthetic with dark gray woven polyester upholstery, light-toned birch plywood armrest caps finished with clear lacquer, polished chrome-plated steel T-base legs, and black fabric-clad armrest side panels. The two-seat unit is configured to form continuous, seamless rows through shared armrest connections between adjacent units, creating a uniform, orderly layout across large seating areas, with a 600 mm single-seat center distance that balances personal space and venue capacity. Its contoured tall backrest delivers fixed ergonomic support for the lumbar and upper back, supporting comfortable use over extended periods. Each unit is constructed for heavy public use, with seat cushions padded with cold-cured high-density PU foam rated at 60 kg/m³, and backrest padding using 55 kg/m³ cold-cured high-density PU foam offering 50% rebound rate. The upholstery fabric resists abrasion through 80000 cycles, with Grade 5 dry and wet rub color fastness to retain a neat appearance with regular use. The perforated light plywood writing tablet attaches via chrome-plated steel pivot points fitted with PP+25%GF bushings, while the spring-damped tip-up seat uses zinc-plated steel hinges with silent damping bushings to eliminate impact noise during automatic return. All legs feature pre-drilled bases that bolt directly to concrete or raised venue flooring for stable, permanent installation. Functional design elements prioritize ease of use in high-traffic settings: the folding writing tablet pivots 90 degrees from its vertical stored position, where it sits flush within the armrest side panel, to a horizontal surface measuring 400 x 280 x 12 mm, suitable for note-taking or placing materials. The seat sits 450 mm from the floor, with armrests positioned 630 mm from the floor, and the fully deployed unit reaches 860 mm in total depth with the tablet open. Each seat supports a recommended static load of 160 kg, with a per-seat net weight of 35 kg. All moving points integrate polymer bushings to enable silent operation, reducing disruptions during events or sessions. This seating is suited for university lecture halls, where the integrated writing tablet supports extended note-taking during long classes, as well as corporate conference and training rooms, where its durable, clean professional finish accommodates formal events. It also fits large auditoriums and assembly halls, government and public hearing rooms, and education or corporate cinema screening rooms, where its formal wood and chrome finish aligns with official interior design schemes, and optional fire-retardant fabric meets public venue safety requirements. It pairs well with a 2.4 m executive desk for front-of-room setups. For procurement, note that each two-seat set ships in two cartons, requires 40 minutes of assembly per unit, and 135 sets can be loaded in a 20GP container at 85% space utilization. Installation requires prepared flooring compatible with bolt-down mounting, and order planning should account for row length and seating capacity needs to align with modular ganged connection requirements.

Two-Seat Ganged Auditorium Chair with Folding Writing Tablet Specifications
