Automatic mm / inch conversion · Core engineering specifications

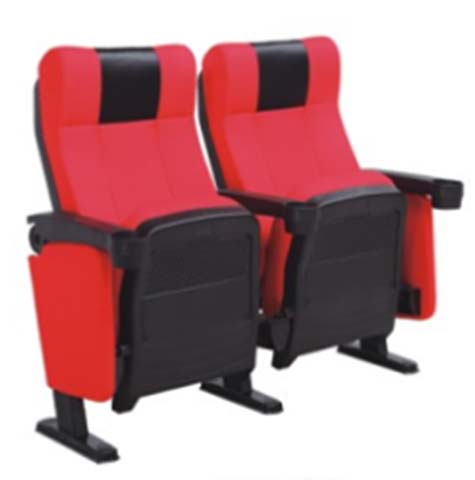

| Overall 2-seat ganged unit dimensions | 1200 x 700 x 1060 mm | |
|---|---|---|
| Single seat center distance | 600 mm | |
| Seat height from finished floor | 450 mm | |
| Open seat usable depth | 470 mm | |
| Backrest usable width | 490 mm | |
| Armrest height above floor | 605 mm | |
| Minimum row-to-row spacing | 1100 mm | |
| Floor mounting plate hole spacing | 242 mm | |
| Minimum curved row installation radius | 25 m | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Per-seat static load capacity | 150 kg | |
|---|---|---|
| Seat flip cycle durability | 200000 cycles | |
| Seat foam density | 65 kg/m³ | |
| Backrest foam density | 60 kg/m³ | |
| Seat cushion foam thickness | 130 mm | |
| Backrest foam thickness | 130 mm | |
| Fabric abrasion resistance | 50000 double rubs | |
| Net weight per single seat | 22 kg | |
| Fabric flame retardancy rating | B1 | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
Core acceptance fields · Panels / hardware / frame / upholstery
| Seat/back outer shell | 4 mm thick injection-molded polypropylene | |
|---|---|---|
| Upholstery fabric | Flame-retardant treated woven public-seat fabric | |
| Seat cushion core | Cold-cure molded high-resilience polyurethane foam | |
| Backrest cushion core | Cold-cure molded high-resilience polyurethane foam | |
| Armrest assembly | Injection-molded ABS plastic with integrated cup recess | |
| Support frame and legs | 2.5 mm thick powder-coated cold-rolled steel | |
| Rear modesty panel | Injection-molded black polypropylene | |
| Seat return mechanism | Torsion spring with nylon bushing pivot | |
| Floor fasteners | Concealed stainless steel expansion anchor bolts | |
| Seat upholstery seam pitch | 8 stitches per inch | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame |
Adjustment / rotation / tilt / mobility / storage features
| Seat flip operation | Spring-loaded automatic quiet return to upright position when unoccupied | |
|---|---|---|
| Floor mounting design | Fixed bolt-down installation on level finished floors | |
| Ganged row configuration | Linear connected adjacent seats with shared intermediate armrests | |
| Armrest utility | Fixed black ABS armrests with integrated cup holder recess | |
| Seat access clearance | 1100 mm minimum row spacing creates 650 mm clear passage when seats are upright | |
| Replaceable wear parts | Removable seat and back upholstery pads for easy maintenance | |
| Noise damping design | Nylon pivot bushings and damped return springs minimize operation noise | |
| Accessibility compatibility | Wider 900 mm accessible seat units available as configuration option | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
Verified carton / gross weight / assembly / loading data
| Knock-down packaging per seat | 1 carton per single seat, plastic wrap protective lining | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
Recommended spaces / users / usage modes
| Commercial cinema auditoriums | Permanent fixed-row seating for multi-screen movie theater venues | |
|---|---|---|
| University and school lecture halls | Fixed audience seating for large-class and guest lecture spaces | |
| Corporate conference and assembly halls | Formal fixed seating for large company meetings and events | |
| Performing arts theaters and playhouses | Audience seating for live stage performance venues | |
| Government and public assembly auditoriums | Durable high-traffic seating for public civic meeting spaces | |
| Multifunction event halls | Configurable fixed seating for multipurpose community event venues | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
EU Market Access Requirements* EN Standards
| EN 12727:2000 | Applies to strength, durability and safety requirements for fixed auditorium seating | |
|---|---|---|
| EN 1021-1:2014 | Applies to upholstered furniture flammability resistance to cigarette ignition |
Standards applicable to China-market projects
| GB 20286-2006 | Applies to flame retardant performance requirements for public venue upholstered furniture | |
|---|---|---|
| GB 18584-2001 | Applies to formaldehyde emission limits for interior wooden/furniture materials |
This product must meet the following technical requirements: 1. GB 20286-2006: Applies to flame retardant performance requirements for public venue upholstered furniture; 2. GB 18584-2001: Applies to formaldehyde emission limits for interior wooden/furniture materials; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
