PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1160 × 780 × 1080 mm
Overall unit dimensions (2 adjacent seats)	1160 x 780 x 1080 mm
Seat center-to-center distance	580 mm
Seat height (floor to top of seat cushion)	449 mm
Seat usable depth	480 mm
Backrest total height (seat surface to top of back)	631 mm
Armrest height (floor to top of wood arm cap)	660 mm
Writing tablet usable surface dimensions	273 x 253 x 12 mm
Writing tablet height above finished floor	611 mm
Aluminum floor mounting foot footprint	310 x 233 mm
Seat tip-up folded depth (stowed position)	580 mm
Solid wood armrest cap thickness	30 mm
Perforated wood modesty panel thickness	15 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Seat assembly static load capacity	160 kg
Seat cushion foam density	55 kg/m³
Backrest foam density	45 kg/m³
Foam rebound rate	60%
Upholstery fabric abrasion resistance	50000 cycles
Fabric surface performance	Stain-resistant, antistatic, abrasion-resistant
Seat tip-up mechanism cycle life	50000 cycles
Powder-coated metal frame salt spray corrosion resistance	48 hours
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back upholstery	Gray woven commercial polyester fabric
Seat cushion core	Cold-molded high-resilience polyurethane foam
Backrest cushion core	Cold-molded supportive polyurethane foam
Armrest caps and trim	30mm thick solid beech hardwood with clear lacquer finish
Inter-seat modesty/side panels	15mm thick perforated wood veneer plywood with walnut finish
Structural support legs	8mm thick die-cast aluminum alloy with silver powder coating
Folding writing tablet surface	12mm thick MDF core with matte black high-pressure laminate top
Writing tablet hinge mechanism	Die-cast aluminum alloy bracket with steel pivot pins
Seat inner support frame	2.0mm thick cold-rolled steel frame with electrostatic powder coat
Seat return mechanism	Steel torsion spring with integrated damping buffer
Fasteners for floor installation	Hex socket expansion bolts with decorative dust caps
Upholstery stitching	Reinforced polyester thread with 8mm seam pitch

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Floor-mounted fixed installation	Permanent attachment to concrete or raised access floors via expansion anchor bolts
Tip-up seat cushion	Spring-damped automatic return to vertical stowed position when unoccupied
Swing-out writing tablet	Pivots 90 degrees from stowed armrest position to horizontal use position, folds flush when not in use
Perforated wood modesty panels	Mounted between adjacent seats for visual privacy and acoustic damping
Ganged adjacent seat configuration	Two seats linked by shared central support and divider panel for continuous row installation
Cushion ergonomic contouring	Segmented channel-stitched seat and back with lumbar support zone
Writing tablet stowage	Tablet stores fully within armrest assembly when folded to avoid aisle obstruction
Optional accessory compatibility	Pre-drilled mounting points for row/seat number plates, rear book nets, and cup holders
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Gross weight per 2-seat unit	52 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Academic lecture halls	Permanent rowed installation with writing tablets supports note-taking for 3 hour classes and lectures
Conference and assembly halls	Formal wood-trim aesthetic with acoustic perforated panels suits corporate and government event spaces
Performing arts theaters and auditoriums	Tip-up seats with quiet return provide clear egress, upholstered padding suits extended performance viewing
Corporate training rooms	Fixed floor mounting eliminates furniture movement during interactive sessions, integrated tablets remove need for separate desks
Campus multi-purpose halls	Durable commercial-grade construction withstands daily high-volume student use, modular ganged design allows flexible row lengths
Government hearing and meeting rooms	Formal professional appearance with permanent installation supports structured public meetings and hearings
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Auditorium seating safety requirements	EN 12727:2016
Upholstered furniture combustion resistance	EN 1021:2014

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Public lounge seating performance	ANSI/BIFMA X2020

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Public seating mechanical safety	GB/T 35452
Furniture flame retardant performance	GB 20286
Furniture surface coating safety	GB 18581

Standardized tender description text

This product must meet the following technical requirements:
1. Public seating mechanical safety: GB/T 35452;
2. Furniture flame retardant performance: GB 20286;
3. Furniture surface coating safety: GB 18581;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · AUD-G2-WT-WD-FM

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · AUD-G2-WT-WD-FM

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · AUD-G2-WT-WD-FMOpen Export Tool

Quick Actions

Post an RFQ

Product Description

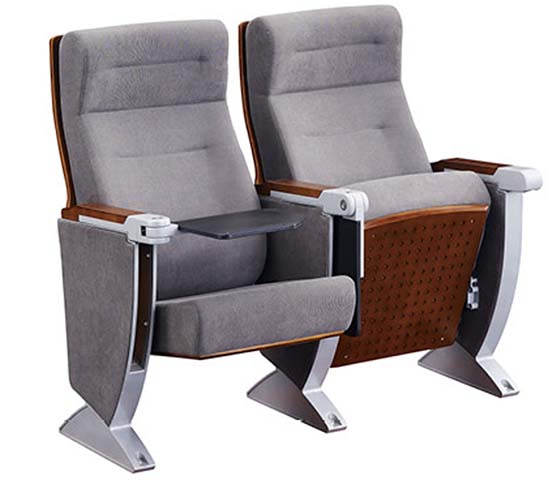

This unbranded ganged floor-mounted gray fabric auditorium seating, model AUD-G2-WT-WD-FM, presents a polished, formal aesthetic designed for continuous row installation. The two-seat linked units feature a cohesive gray woven fabric upholstered profile, accented by clear-lacquered solid beech arm caps and walnut-finished perforated wood modesty panels mounted between adjacent seats. Silver powder-coated die-cast aluminum cantilever supports anchor the units firmly, while channel-stitched seat and back cushions create a tailored, ergonomic silhouette with a defined lumbar support zone. Construction prioritizes long-term durability for high-traffic use. Seat and back cushions are built from cold-molded high-density polyurethane foam, upholstered in commercial-grade gray woven polyester fabric treated for stain resistance, antistatic performance, and abrasion resistance. Arm caps are cut from 30mm thick solid beech with a protective clear lacquer, while inter-seat modesty panels use 15mm thick perforated wood veneer plywood to deliver subtle acoustic damping. The 8mm thick die-cast aluminum support structure is finished with silver powder coating, paired with a 2.0mm thick cold-rolled steel inner seat frame finished with electrostatic powder coat for structural stability. Each unit includes an integrated HPL-surface swing-out writing tablet, built with an MDF core and matte black high-pressure laminate top, mounted on a die-cast aluminum bracket with steel pivot pins. Functional design supports seamless use in occupied spaces. The floor-mounted system attaches permanently to concrete or raised access floors via expansion anchor bolts, eliminating unintended furniture movement. Seat cushions feature a spring-damped tip-up mechanism that automatically returns to a vertical stowed position when unoccupied, maintaining clear aisle access with quiet operation. The swing-out writing tablet pivots 90 degrees from its stowed position within the armrest to a horizontal use position, folding fully flush when not in use to avoid aisle obstruction. Perforated modesty panels between seats provide visual privacy alongside acoustic damping, while the ergonomic cushion contouring supports comfortable seating for extended sessions. This seating is well-suited for a range of commercial and public institutional spaces, including academic lecture halls, corporate conference and assembly halls, performing arts theaters and auditoriums, corporate training rooms, campus multi-purpose halls, and government hearing and meeting rooms. Its formal wood-trim aesthetic complements professional and public event environments, while the ganged modular design allows flexible continuous row lengths to suit varied space layouts. The durable commercial-grade construction stands up to daily high-volume use, and integrated writing tablets eliminate the need for separate portable desks in learning or meeting settings. Procurement teams should note that seating is sold as two-seat ganged units, packaged across two cartons per set, with a reference assembly time of 40 minutes per unit. The fixed floor-mounted design requires pre-planned anchor point layout aligned with venue egress and sightline requirements, and the ganged configuration supports installation of continuous rows by linking adjacent two-seat units. The fabric and mechanism performance ratings align with expectations for high-frequency public use, making the seating a practical choice for venues hosting regular long-duration events, classes, or performances.

Ganged Floor-Mounted Gray Fabric Auditorium Seating with Swing-Out Writing Tablet Specifications
