Automatic mm / inch conversion · Core engineering specifications

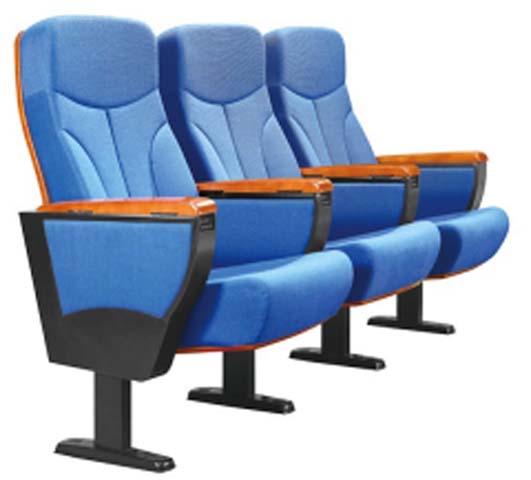

| 3-seat ganged unit overall dimensions | 1860 x 730 x 1020 mm | |
|---|---|---|
| Seat center-to-center pitch | 620 mm | |
| Seat height from floor | 450 mm | |
| Seat usable depth | 535 mm | |
| Backrest height above seat | 570 mm | |
| Armrest height above floor | 650 mm | |
| Armrest top dimensions | 425 x 80 x 25 mm | |
| Recommended row spacing for installation | 900 mm | |
| Pedestal base plate dimensions | 320 x 120 mm | |
| Seat cushion usable width per position | 560 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Per-seat net weight | 26 kg | |
|---|---|---|
| Recommended static load per seat | 150 kg | |
| Seat cushion foam density | 65 kg/m³ | |
| Backrest foam density | 40 kg/m³ | |
| Seat cushion maximum foam thickness | 110 mm | |
| Backrest maximum foam thickness | 130 mm | |
| Upholstery fabric abrasion resistance | 50000 Martindale cycles | |
| Tip-up mechanism cycle life | 100000 operations | |
| Standard available color options | 8 | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
Core acceptance fields · Panels / hardware / frame / upholstery
| Seat and back upholstery | Wear-resistant breathable polyester fabric | |
|---|---|---|
| Cushion padding | Cold-moulded high-resilience polyurethane foam | |
| Seat inner support board | 11 mm thick multi-layer plywood | |
| Back inner support board | 9 mm thick multi-layer bent plywood | |
| Armrest tops | 25 mm thick varnished solid beech wood | |
| Armrest frames and side supports | 1.8 mm thick powder-coated cold-rolled steel | |
| Floor pedestal stanchions | 1.8 mm thick black powder-coated steel | |
| Side panel base covers | Injection-molded black polypropylene | |
| Seat return mechanism | Steel torsion spring automatic return | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame | |
| Gas-lift Engineering Specification | Recommended Class 4; outer tube 50 mm; stroke 100 mm |
Adjustment / rotation / tilt / mobility / storage features
| Seat tip-up action | Spring-loaded automatic upward return when unoccupied | |
|---|---|---|
| Floor mounting | Permanent anchoring with expansion bolts on concrete floors | |
| Ergonomic back support | Contoured stitched high back with integrated lumbar curve | |
| Seating configuration | Modular ganged 3-seat unit, connectable to longer rows | |
| Upholstery maintenance | Stain-resistant easy-clean fabric surface | |
| Seam construction | Reinforced stitched seams with 8 mm stitch pitch | |
| Noise damping | Rubber bumpers on tip-up mechanism to prevent slamming | |
| Optional accessory compatibility | Supports retrofit fold-down writing tablets and seat number plates | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
Recommended spaces / users / usage modes
| Lecture hall installation | Fixed row seating for university and corporate training rooms | |
|---|---|---|
| Theater and auditorium use | Comfortable padded seating for conference and performance venues | |
| Government assembly halls | Heavy-duty public seating for council chambers and public meetings | |
| Cinema auxiliary halls | Non-reclining seating for small screening rooms and pre-function spaces | |
| School multi-purpose halls | Modular seating for school auditoriums and event spaces | |
| End of row installation | Upholstered end panel on left unit matches seat fabric for clean finished appearance | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
EU Market Access Requirements* EN Standards
| Public seating safety requirements | EN 12727:2016 | |
|---|---|---|
| Upholstered furniture fire resistance | EN 1021:2014 | |
| Furniture surface durability | EN 14465:2007 |
Standards applicable to China-market projects
| Public furniture flame retardancy | GB 20286 | |
|---|---|---|
| Furniture structural strength testing | GB/T 10357.3 | |
| Furniture hardware performance | GB/T 3324 |
This product must meet the following technical requirements: 1. Public furniture flame retardancy: GB 20286; 2. Furniture structural strength testing: GB/T 10357.3; 3. Furniture hardware performance: GB/T 3324; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
