PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	600 × 800 × 1105 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Single seat unit net weight	28 kg
Recommended maximum static user weight per seat	250 kg
Seat tip-up mechanism cycle durability	100000 cycles
Seat cushion foam density	65 kg/m³
Backrest foam density	57 kg/m³
Upholstery fabric abrasion resistance	50000 Martindale cycles
Frame steel static load capacity per stanchion	1470 N
Standard available upholstery color count	6
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back upholstery	Wear-resistant woven polyester fabric, optional flame-retardant treatment
Seat cushion core	Cold-molded high-resilience polyurethane foam, 140 mm thick
Backrest cushion core	Cold-molded high-resilience polyurethane foam, 100 mm thick
Internal seat support springs	Sinuous S-shaped steel springs under seat cushion
Structural frame and stanchions	2.2 mm thick high-strength steel, black electrostatic powder coat
Armrest and cup holders	One-piece injection-molded high-impact black polypropylene
Underseat modesty panel	Perforated black polypropylene panel for acoustic transparency
Internal seat base panel	15 mm thick multi-layer plywood
Floor mounting hardware	Rust-resistant zinc-plated hex expansion bolts with rubber isolators
Seam construction	Reinforced stitched seams with 8 mm stitch pitch
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat operation	Gravity-counterweight auto tip-up seat that returns to vertical position when unoccupied
Beverage storage	Integrated recessed cup holder per armrest sized for standard 500ml drink containers
Installation configuration	Ganged connected units for straight row installation on tiered cinema floors
Mounting type	Permanent floor-mounted T-foot stanchions secured with expansion bolts
Maintenance access	Removable seat and back upholstery pads for on-site replacement
Ergonomic support	Contoured segmented lumbar support shaping in backrest for 2+ hour viewing comfort
Aisle access	Flip-up seat provides 300 mm additional clear aisle space per row when unoccupied
Optional accessory compatibility	Pre-drilled mounting points for row number plates and aisle step lighting
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Commercial cinemas	Designed for permanent row installation in tiered movie theater auditoriums
Multi-purpose auditoriums	Suitable for school and community hall screening and event seating
Lecture halls with media screening	Supports long-duration seated events with integrated beverage storage
Indoor performance venues	Appropriate for fixed-seat theaters requiring egress-compliant tip-up seats
Home theater rooms	Scaled for dedicated residential cinema installations seeking commercial grade seating
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12727:2000	Strength, durability and safety requirements for fixed auditorium seating
EN 1021-1:2014	Upholstered furniture ignition resistance from smoldering cigarette source
EN 1021-2:2014	Upholstered furniture ignition resistance from match flame source

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 38064-2019	Public venue seating safety and durability requirements for fixed auditorium chairs
GB 20286-2006	Flame retardant performance requirements for upholstered furniture in public venues
GB/T 3324-2017	General technical requirements for metal-supported wooden and upholstered furniture

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 38064-2019: Public venue seating safety and durability requirements for fixed auditorium chairs;
2. GB 20286-2006: Flame retardant performance requirements for upholstered furniture in public venues;
3. GB/T 3324-2017: General technical requirements for metal-supported wooden and upholstered furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CIN-RED-FAB-600-TIP

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CIN-RED-FAB-600-TIP

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CIN-RED-FAB-600-TIPOpen Export Tool

Quick Actions

Post an RFQ

Product Description

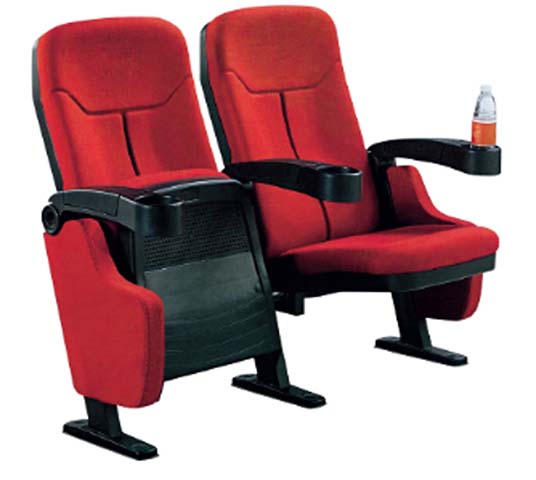

The Red Fabric Ganged Cinema Auditorium Seating with Integrated Cup Holders is a purpose-built fixed row seating solution designed for extended viewing comfort across commercial and residential media spaces. Delivered as connected ganged units for straight row installation on tiered floors, the seating features a cohesive, streamlined profile with rich red woven upholstery paired with matte black armrests, under-seat panels, and structural framing, creating a polished, uniform aesthetic ideal for immersive viewing environments. Constructed for long-term heavy use, the seating integrates a high-strength steel frame with a black electrostatic powder coat, secured to floors via permanent T-foot stanchions with rust-resistant zinc-plated expansion bolts fitted with rubber isolators. Seat and back cushions use cold-molded high-resilience polyurethane foam supported by sinuous S-shaped steel springs and a multi-layer plywood internal base panel, upholstered in wear-resistant woven polyester fabric with optional flame-retardant treatment. High-impact black polypropylene forms the one-piece armrests, integrated recessed cup holders, and perforated acoustically transparent underseat modesty panels. Each ergonomically contoured backrest includes a shaped lumbar support zone to deliver consistent comfort for viewing sessions of two hours or longer. Core functional features support efficient space use and easy upkeep. A gravity-counterweight auto tip-up mechanism returns seats to a vertical position when unoccupied, creating extra clear aisle space per row to support smooth egress. Each armrest includes a recessed integrated cup holder sized to hold standard 500ml drink containers, eliminating the need for separate accessory surfaces. Removable seat and back upholstery pads allow straightforward on-site replacement to simplify routine maintenance and extend the product’s usable life. This seating is suited for permanent installation in commercial cinemas, school and community multi-purpose auditoriums, lecture halls with media screening capabilities, and fixed-seat indoor performance venues, and it is also scaled appropriately for dedicated residential home theater rooms seeking commercial-grade seating. For procurement planning, each set ships across two cartons, with a stated reference assembly time per set, and logistics metrics support efficient bulk shipping for large venue fit-outs. Buyers can select optional flame-retardant upholstery treatment aligned with venue safety requirements, and should account for permanent floor mounting requirements when prepping installation sites, as the units are not designed for freestanding use.

Red Fabric Ganged Cinema Auditorium Seating with Integrated Cup Holders Specifications
