PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1740 × 660 × 980 mm
Seat center-to-center spacing	580 mm
Seat height from floor	460 mm
Seat cushion usable depth	480 mm
Seat cushion usable width	490 mm
Backrest total height	720 mm
Armrest height from seat surface	230 mm
Integrated cup holder inner diameter	80 mm
Floor mounting foot plate length	180 mm
Minimum required row clearance for egress	900 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per-seat static load capacity	1600 N
Recommended per-user weight limit	150 kg
Cold-molded PU foam density	55 kg/m³
Seat cushion foam thickness	80 mm
Backrest foam thickness	80 mm
Fabric upholstery abrasion resistance	50000 double rubs
Standard product warranty	5 years
3-seat unit net weight	57 kg
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back upholstery	Pink woven polyester fabric with quilted grid stitching, 0.8mm thickness
Seat padding core	High-density cold-molded PU foam, 55kg/m³ density
Back padding core	High-density cold-molded PU foam, 55kg/m³ density
Armrest top surface	Solid beech wood with polished clear lacquer finish
Armrest lower trim	Black matte ABS plastic, integrated recessed cup holder
Support frame structure	16-gauge powder-coated carbon steel tubing and 3mm cold-rolled steel foot plates
Seat pivot axle	16mm diameter solid steel axle with spring-damped return mechanism
Internal back support panel	7-ply molded plywood, 12mm thickness
Seat upholstery seam pitch	30 mm
Frame surface finish	Black electrostatic powder coating, 60μm thickness
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Installation method	Permanent T-foot bolt-down mounting to finished floor or tiered riser
Seat return mechanism	Spring-damped silent automatic return to vertical position when unoccupied
Armrest beverage holding	Integrated 80mm diameter recessed cup holder on every shared and end armrest
Seat operation	Gravity-assisted tip-up seat to increase aisle clearance between rows
Ganged seating configuration	Pre-aligned 3 linked seats on shared support stanchions for uniform row alignment
Backrest support	Fixed ergonomic 16-degree tilted backrest for extended forward-facing viewing
Upholstery performance	Stain-resistant fabric treatment for easy cleaning in high-traffic public spaces
Pivot mechanism durability	100000 tip-up return cycles without structural failure
Backrest tilt angle from vertical	16 degrees
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Lecture hall application	Suitable for university and corporate lecture halls, fixed row layout with unobstructed sightlines
Cinema and theater use	Applicable to independent cinemas and performance theaters with tiered riser installation
Conference center use	Ideal for large conference venue assembly halls with permanent seating layouts
Church and assembly hall use	Suitable for church sanctuaries and municipal public assembly spaces
Installation requirement note	Requires pre-drilled anchor points on concrete or raised wood riser floors for permanent fixing
Cleaning suitability	Stain-resistant fabric and smooth wood armrests support routine daily cleaning in high-traffic venues
Color customization option	Pink fabric finish available alongside standard red, black, and navy fabric options per commercial seating lines
Recommended Matching Desk Size	2.4 m executive desk

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12727:2000	Furniture - Ranked seating for public areas, test methods for strength and durability
EN 1022:2018	Furniture - Seating - Determination of stability for non-domestic seating

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applies to solid wood armrest components
GB/T 24430.1-2009	Public seating safety requirements, applies to structural strength and stability of fixed seats
GB 18580-2017	Formaldehyde emission limits for wood-based panels, applies to internal plywood support panels

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applies to solid wood armrest components;
2. GB/T 24430.1-2009: Public seating safety requirements, applies to structural strength and stability of fixed seats;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applies to internal plywood support panels;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · AUD-3SEAT-PNK-WD-ARM

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · AUD-3SEAT-PNK-WD-ARM

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · AUD-3SEAT-PNK-WD-ARMOpen Export Tool

Quick Actions

Post an RFQ

Product Description

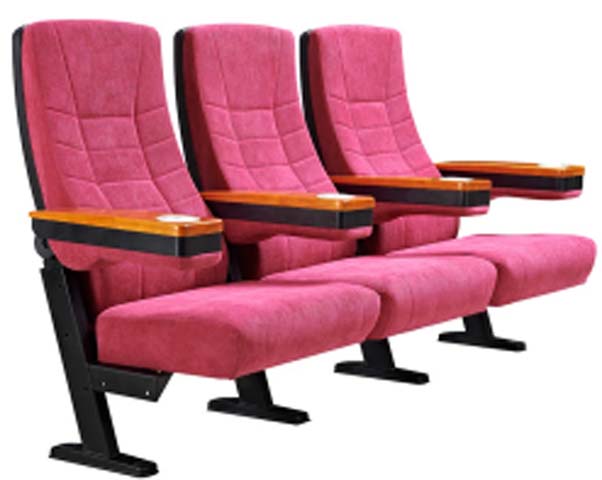

This 3-seat fixed floor-mounted auditorium chair is designed as durable, cohesive public seating for high-traffic venues, presented as a pre-aligned ganged unit to support uniform, neat row layouts. The seating features soft pink woven polyester upholstery with precise quilted grid stitching, paired with polished solid beech wood armrest caps finished with clear lacquer for a warm, refined visual profile. Each seat and fixed 16-degree tilted ergonomic backrest is padded with high-density cold-molded PU foam for consistent support during extended viewing, while black matte ABS lower armrest trim integrates recessed cup holders on every shared and end armrest to hold beverages securely. The underlying structure uses a powder-coated carbon steel support frame with solid steel pivot axles, molded plywood internal back support panels, and cold-rolled steel foot plates for stable, long-term installation. Functionally, each seat operates with a gravity-assisted tip-up design paired with a spring-damped silent automatic return mechanism that lifts to a vertical position when unoccupied, expanding clear aisle space between rows. The upholstery is treated for stain resistance to simplify routine cleaning, with abrasion resistance rated to withstand frequent use in busy public settings. This seating is well suited for permanent fixed-row installations in university and corporate lecture halls, independent cinemas and performance theaters, large conference center assembly halls, church sanctuaries, and municipal public assembly spaces, and can be mounted to both flat finished floors and tiered risers to preserve unobstructed sightlines for audiences. For procurement, planners should note this model requires pre-drilled anchor points on concrete or raised wood riser floors for secure permanent fixing. Each 3-seat unit ships across two cartons, with a standard assembly time per set for installation teams, and a 5-year standard product warranty. The fixed ganged configuration eliminates uneven seat spacing across rows, while consistent seat dimensions support comfortable use for a wide range of attendees in both commercial and public assembly residential-adjacent community spaces.

3-Seat Fixed Floor-Mounted Quilted Fabric Auditorium Chair with Wooden Cup-Holder Armrests Specifications
