PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	590 × 800 × 1030 mm
Overall per-seat dimensions	590 x 800 x 1030 mm (W x D x H with tablet open)
Seat center-to-center spacing	590 mm
Seat height from finished floor	460 mm
Seat inner usable width	500 mm
Seat cushion foam dimensions	460 x 445 x 150 mm
Backrest foam dimensions	455 x 680 x 135 mm
Folding writing tablet dimensions	300 x 258 x 15 mm
Armrest top height from floor	645 mm
Perforated modesty rear panel thickness	17 mm
Minimum recommended row-to-row spacing	950 mm
Metal support leg foot print length	320 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per-seat net weight	28 kg
Recommended static user load capacity	150 kg
Seat cushion foam density	65 kg/m³
Backrest foam density	55 kg/m³
Foam rebound rate	60%
Fabric upholstery abrasion resistance	50000 Martindale cycles
Seat return mechanism cycle life	100000 cycles
Standard product warranty	5 years
Service life under normal public use	10 years
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back upholstery	Heavy-duty commercial knitted fabric, red color, optional flame-retardant treatment
Seat cushion core	Cold-cured high-resilience polyurethane foam, 150mm thick, 65kg/m³ density
Backrest cushion core	Cold-cured high-resilience polyurethane foam, 135mm thick, 55kg/m³ density
Armrests and trim	Solid beech wood, clear lacquer finish, smooth rounded edges
Rear modesty panel	Perforated multi-layer hardwood veneer panel, matte light wood finish, acoustic ventilation holes
Structural frame and legs	Polished die-cast aluminum alloy, 3mm wall thickness, corrosion-resistant polished finish
Folding writing tablet	Rigid black ABS panel, 15mm thick, PVC edge binding, mounted on aluminum swivel bracket
Side panels	Upholstered red fabric over 12mm thick plywood backing, matching seat/back color
Seat return mechanism	Dual torsion spring with hydraulic damper, steel bracket hardware, low-noise operation
Seat internal support frame	1.5mm thick cold-rolled steel frame, powder-coated black for corrosion resistance
Floor mounting hardware	Galvanized steel expansion anchors, concealed under polished aluminum foot plates
Upholstery seam stitching	High-strength polyester thread, 8 stitches per inch seam pitch for durability

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat tip-up return	Gravity-assisted damped spring return, automatically folds upward when unoccupied, slow silent operation
Swivel writing tablet	Rotates out from under right armrest, tilts 6.5 degrees upward for writing ergonomics, folds flush when stored
Fixed floor mounting	Secured to concrete or raised finished floor with expansion anchors, no movement during use
Row installation compatibility	Modular design allows linked row assembly of 2+ seats, aligned uniform spacing between units
Acoustic modesty panel	Perforated rear wood panel provides sound ventilation and modesty screening for rear row occupants
Writing tablet lock	Positive detent lock holds tablet fully extended in use position, locks flush when stored to prevent rattle
Fabric maintenance	Stain-resistant treated fabric allows spot cleaning with mild detergent for high-traffic public use
Backrest recline angle from vertical	17 degrees
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

University lecture halls	Fixed row seating with writing tablet supports note-taking during long class sessions
Theater and performance auditoriums	Upholstered comfort and silent tip-up seat suit spectator use during performances
Conference and convention centers	Formal uniform appearance and writing surface support meeting and seminar events
Government and institutional meeting halls	Durable fixed construction and formal red/wood finish match official venue design standards
Corporate training rooms	Fixed row layout with writing tablets supports structured training and presentation activities
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12727:2017	Furniture - Ranked seating for public areas - Safety and strength requirements
EN 1021-1:2014	Upholstered furniture ignition resistance - smouldering cigarette test
EN 1021-2:2014	Upholstered furniture ignition resistance - match flame test

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to wood trim and panel components
GB 20286-2006	Flame retardant performance requirements for public venue furniture upholstery, optional fire-rated configuration
GB/T 39223-2020	Performance test methods for public seating durability and stability

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to wood trim and panel components;
2. GB 20286-2006: Flame retardant performance requirements for public venue furniture upholstery, optional fire-rated configuration;
3. GB/T 39223-2020: Performance test methods for public seating durability and stability;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · AUD-RW-590

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · AUD-RW-590

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · AUD-RW-590Open Export Tool

Quick Actions

Post an RFQ

Product Description

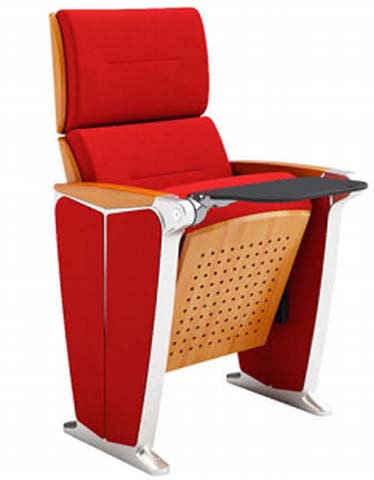

The AUD-RW-590 unbranded fixed floor-mounted auditorium chair is purpose-built for high-traffic public gathering venues, pairing a formal, cohesive aesthetic with robust long-term functionality. Each unit features uniform deep red upholstery across the seat, back, and side panels, accented by smooth, clear-lacquered solid beech wood armrests and trim, a matte light wood perforated rear modesty panel, and a polished die-cast aluminum frame for a polished, professional look. The modular design supports linked row assembly of two or more seats with consistent 590mm center-to-center spacing, creating clean, orderly sightlines across any seating layout, with no shifting during use thanks to secure floor anchoring. The structure is engineered for extended commercial service: seat and back cushions use cold-cured high-resilience polyurethane foam, wrapped in heavy-duty knitted fabric rated for 50,000 Martindale abrasion cycles, with optional flame-retardant treatment available. The 15mm thick rigid black ABS writing tablet is mounted on an aluminum swivel bracket, rotating out from under the right armrest to a 6.5-degree upward tilt for ergonomic writing, with positive detent locks to hold it in place during use and prevent rattle when stored flush. When unoccupied, the gravity-assisted damped spring seat return lifts the cushion slowly and silently to keep aisles clear, while the perforated rear panel delivers acoustic ventilation and modesty screening for guests in rows behind. The stain-resistant fabric supports simple spot cleaning with mild detergent, and the unit supports a 150kg static user load, with a 100,000-cycle rated return mechanism for durable daily use. This chair is suited for university lecture halls, performance theaters, conference centers, government institutional meeting halls, and corporate training rooms, supporting note-taking, extended spectator comfort, and formal event needs. Procurement teams should note each unit ships in two cartons, requires 40 minutes of on-site assembly per set, and secures to concrete or raised finished floors with expansion anchors; the cohesive red and wood finish aligns with formal public venue design standards.
