PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1100 × 620 × 1010 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Unit net weight	48 kg
Per-seat static load capacity	150 kg
Foam density (seat cushion)	45 kg/m³
Fabric abrasion resistance	50000 cycles
Seat tip-up mechanism cycle life	30000 cycles
Recommended row spacing	900 mm
Seating capacity per unit	2 persons
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back upholstery	Fire-retardant polyester fabric
Seat core padding	High-density cold-cured polyurethane foam
Structural support frame	2.0mm thick powder-coated steel
Armrest top surface	Solid beech wood with clear varnish
Armrest support bracket	Die-cast aluminum alloy
Seat hinge mechanism	Zinc-plated steel with gravity return
Side panel	12mm thick black ABS plastic
Inter-seat divider trim	Black PVC edge binding
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Gravity tip-up seat	Automatic return to upright position when unoccupied, no manual latch required
Flip-up writing tablet	Stowed vertically when not in use, locks in horizontal position for writing
Floor-mounted fixed installation	Secured to concrete or raised venue floor via expansion bolts on T-base feet
Row-linking connection	Adjacent units connect via integrated side brackets to form continuous seating rows
Ergonomic lumbar support	Contoured backrest shape provides lower back support during long events
Anti-pinch seat hinge	Covered pivot mechanism prevents finger entrapment during seat movement
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Cinema and theater venues	Fixed row seating with tip-up seats for maximum aisle clearance during events
School auditoriums and lecture halls	Integrated writing tablets support note-taking during lectures and assemblies
Conference centers and assembly halls	Durable upholstery and high load rating suit frequent high-capacity events
Government and corporate event spaces	Formal red fabric finish matches formal venue decor requirements
Stadium VIP seating areas	Comfortable padding and armrests provide premium seating experience for guests
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Furniture mechanical safety	EN 12727:2019
Office/public seating stability	EN 1022:2018
Upholstered furniture flammability	EN 1021:2014

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Public seating structural requirement	GB/T 35452
Fire safety for interior materials	GB 20286
Formaldehyde emission limit	GB 18580

Standardized tender description text

This product must meet the following technical requirements:
1. Public seating structural requirement: GB/T 35452;
2. Fire safety for interior materials: GB 20286;
3. Formaldehyde emission limit: GB 18580;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · AUD-2S-WT-RED

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · AUD-2S-WT-RED

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · AUD-2S-WT-REDOpen Export Tool

Quick Actions

Post an RFQ

Product Description

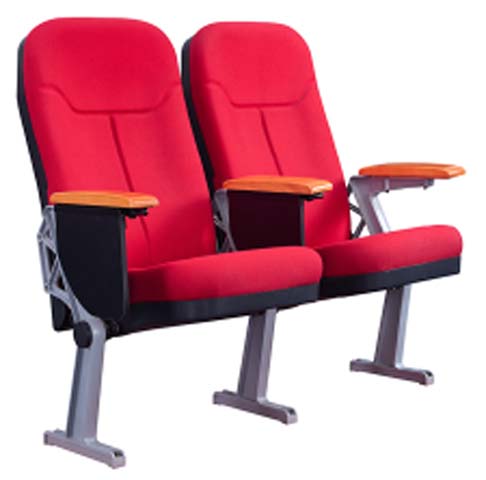

The AUD-2S-WT-RED unbranded 2-seat upholstered auditorium chair is purpose-built for fixed-row seating applications, featuring a coordinated formal design with red fire-retardant polyester fabric upholstery tailored to professional venue aesthetics. Each two-person unit integrates smooth, continuous seating lines, with solid beech wood armrests finished in clear varnish, black ABS side panels, and black PVC edge binding between seats for a polished, cohesive look when linked into extended rows. The chair’s structure relies on a 2.0mm thick powder-coated steel frame for core stability, supported by die-cast aluminum alloy armrest brackets, 14mm bent plywood internal seat support boards, and zinc-plated steel hinge mechanisms with gravity return functionality. Seat cushions use 45 kg/m³ high-density cold-cured polyurethane foam with a 90mm finished thickness, paired with 70mm thick backrest padding shaped to deliver ergonomic lumbar support across a 240mm lumbar zone, with a 540mm clear width between armrests for comfortable personal space. The backrest offers a 125° recline with three suggested lock positions, and the anti-pinch covered pivot hinge prevents finger entrapment during seat movement. Gravity-actuated tip-up seats automatically return to an upright position when unoccupied without manual latches, maximizing aisle clearance between rows. Each seat includes an integrated flip-up writing tablet that stows vertically when unused and locks into a horizontal position to support writing or device placement. The unit mounts securely to concrete or raised venue floors via expansion bolts on T-base feet, with integrated side brackets that connect adjacent units to form seamless continuous seating rows. Built for frequent high-traffic use, the seat supports a 150kg per-seat static load, with fabric rated for 50000 abrasion cycles and a tip-up mechanism rated for 30000 operation cycles. This model is well suited for cinemas, theaters, school auditoriums, lecture halls, conference centers, assembly halls, government and corporate event spaces, and stadium VIP seating areas, as its formal red finish complements formal decor, integrated tablets support note-taking during lectures or events, and durable construction withstands regular high-capacity use. For procurement planning, note that each unit ships in two cartons, requires 40 minutes of assembly per set, and specifies a 900mm row spacing for optimal guest access and comfort. The chair’s 48kg net weight delivers stable fixed positioning once installed, and its coordinated material palette eliminates the need for separate trim or accessory components to complete installation across large venue spaces.

2-Seat Upholstered Auditorium Chair with Flip-Up Writing Tablets Specifications
