PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	580 × 880 × 1030 mm
Per-seat center distance	580 mm
Seat height (top of cushion to floor)	460 mm
Seat inner usable width	500 mm
Seat cushion depth	460 mm
Backrest height (seat surface to top of back)	570 mm
Armrest dimensions	85 x 410 x 30 mm
Folding writing tablet dimensions	270 x 260 x 18 mm
Perforated wood modesty panel thickness	15 mm
Minimum required row spacing for installation	1000 mm
Steel floor pedestal foot plate size	180 x 100 x 5 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight per single seat	28 kg
Recommended static user weight capacity per seat	160 kg
Writing tablet static load capacity	50 kg
Seat cushion foam density	60 kg/m³
Backrest foam density	45 kg/m³
Seat foam thickness (cushion core)	150 mm
Back foam thickness (lumbar core)	140 mm
Fabric abrasion resistance (Martindale)	50000 cycles
Steel frame static load rating per pedestal	800 kg
Warranty period for structural components	5 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back upholstery	Red flame-retardant public-seating woven fabric, anti-fouling/anti-static treated
Seat and back padding	Cold-cured high-resilience PU foam, 60 kg/m³ density
Inner seat/back support panel	15mm multi-layer bent plywood, ergonomically contoured
Armrest top surface	Solid beech wood, 30mm thick, clear environmental lacquer finish
Folding writing tablet	18mm high-density fiberboard with wood veneer, PU edge banding, steel support bracket
Perforated modesty/side panel	15mm perforated multi-layer wood panel, honeycomb acoustic holes, wood veneer finish
Structural frame and pedestals	2.2mm thick cold-rolled steel, phosphated anti-rust treatment, matte black powder coat
Seat return mechanism	Torsion steel spring with concealed hydraulic damper, rubber silent stop buffer
Floor mounting hardware	Galvanized steel expansion bolts, black powder-coated steel foot plates
Upholstery seam construction	Reinforced polyester stitching, 8 stitches per 30mm seam length
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat tip-up operation	Gravity-assisted automatic return to vertical folded position via damped torsion spring
Writing tablet operation	Folding swing-out tablet stored inside right armrest, locks in horizontal use position
Floor mounting system	Fixed bolt-down pedestal installation to concrete/raised access floors, ganged shared framing
Acoustic performance	Perforated wood modesty panels provide sound absorption, reducing echo in assembly spaces
Seat damping function	Concealed hydraulic damper eliminates slamming noise during seat return
Row configuration	Ganged modular connection allows continuous row installation of any seat count
Tablet load support	Steel-reinforced tablet bracket supports up to 50kg static load without deflection
Maintenance access	Fabric upholstery allows spot cleaning, wood surfaces resist stain absorption for high-traffic use
Backrest recline angle from vertical	17 degrees
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

School and university auditoriums	Durable fixed seating with note-taking tablet for lecture and presentation use
Corporate conference and report halls	Formal ganged seating for meetings, training sessions and corporate events
Government and public assembly halls	Code-compliant fixed seating for official proceedings and public hearings
Theaters and performing arts venues	Comfortable angled back seating for long-duration performance viewing
Training centers and seminar rooms	Integrated writing surface supports note-taking and document use during sessions
Cinema and screening rooms (non-recliner configuration)	Space-efficient ganged seating with tablet for specialty screening events
Public courthouse and council chambers	Formal fixed seating with acoustic treatment for quiet proceedings
Recommended Matching Desk Size	2.4 m executive desk

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 13761:2002	Public seating performance and safety requirements for auditorium and assembly spaces
EN 1022:2018	Furniture seating stability test standard for fixed and movable public seating
EN 12727:2000	Strength, durability and safety requirements for ranked auditorium seating

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.11-2015	General purpose office and public seating durability and safety standard
ANSI/BIFMA X5.4-2022	Lounge and public seating performance requirements for heavy-traffic use

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB 17927.2-2011	Soft furniture ignition resistance standard, applicable to upholstered public seating flame retardancy
GB/T 3324-2017	General technical requirements for wood furniture, applicable to wood armrest and panel components
GB/T 3325-2017	General technical requirements for metal furniture, applicable to steel frame and pedestal components
GB/T 16799-2008	Furniture leather and fabric performance standards, applicable to upholstery durability testing

Standardized tender description text

This product must meet the following technical requirements:
1. GB 17927.2-2011: Soft furniture ignition resistance standard, applicable to upholstered public seating flame retardancy;
2. GB/T 3324-2017: General technical requirements for wood furniture, applicable to wood armrest and panel components;
3. GB/T 3325-2017: General technical requirements for metal furniture, applicable to steel frame and pedestal components;
4. GB/T 16799-2008: Furniture leather and fabric performance standards, applicable to upholstery durability testing;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · AUD-RED-WT-580

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · AUD-RED-WT-580

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · AUD-RED-WT-580Open Export Tool

Quick Actions

Post an RFQ

Product Description

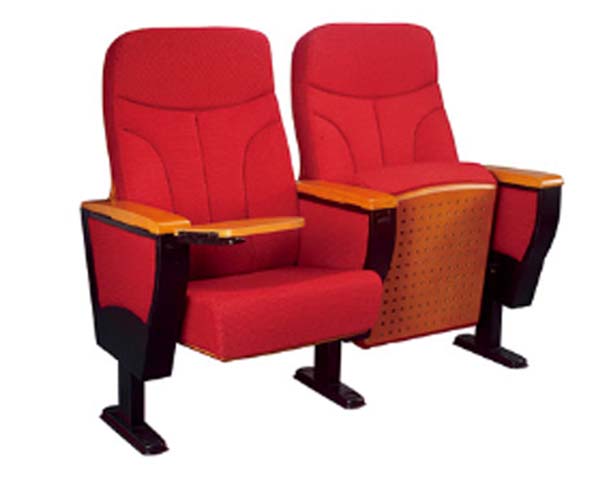

This unbranded ganged floor-mounted auditorium chair, model AUD-RED-WT-580, presents a cohesive, formal seating solution defined by its rich red woven fabric upholstery, warm solid beech wood accents, and matte black structural framing. Designed for continuous row installation via shared ganged framing, each unit aligns to a consistent per-seat layout, with a perforated wooden modesty panel positioned between rows to maintain sightline privacy and visual order. The right armrest conceals a folding writing tablet that sits flush when stored, preserving a clean, uncluttered row profile when the tablet is not in use. Constructed for high-traffic public use, the chair’s structural core uses thick cold-rolled steel with phosphated anti-rust treatment and a matte black powder coat finish, secured to concrete or raised access floors with galvanized steel expansion bolts and coated foot plates. Seating surfaces are padded with cold-cured high-resilience PU foam, upholstered in anti-fouling, anti-static, flame-retardant red public-seating woven fabric over ergonomically contoured multi-layer bent plywood support panels. Armrests feature 30mm thick solid beech wood tops finished with clear environmental lacquer, while the swing-out writing tablet uses high-density fiberboard with wood veneer, PU edge banding, and a steel-reinforced support bracket. The perforated modesty panel is finished with wood veneer and honeycomb acoustic holes, and the seat return system uses a torsion steel spring with a concealed hydraulic damper and rubber silent stop buffer. Functional design prioritizes quiet, low-maintenance operation: the seat uses gravity-assisted automatic return to a vertical folded position, with the integrated hydraulic damper eliminating slamming noise during movement. The writing tablet swings out from the right armrest and locks securely in a horizontal position for use, supported to hold static loads without deflection. The perforated modesty panels deliver sound absorption to reduce echo in large assembly spaces, while the ganged modular connection supports continuous row configurations of any seat count. This chair is well suited for a broad range of fixed-seating venues, including school and university auditoriums, corporate conference and report halls, government and public assembly halls, theaters and performing arts venues, training centers, seminar rooms, and non-recliner cinema or screening rooms, supporting note-taking, long-duration seating, and formal event use. For procurement planning, note that each set ships across two cartons, with a reference assembly time of 40 minutes per unit. The fixed floor-mounted design requires pre-planned floor anchoring points aligned to row layouts, and ganged installation requires coordination of row lengths to match venue space dimensions. Buyers should account for floor type compatibility when planning installation, as the system is designed for concrete or raised access floors.

Red Fabric Ganged Floor-Mounted Auditorium Chair with Folding Writing Tablet Specifications
