Automatic mm / inch conversion · Core engineering specifications
| Overall unit dimensions per seat | 580 x 700 x 1020 mm | |
|---|---|---|
| Seat height from finished floor | 460 mm | |
| Seat center-to-center spacing | 580 mm | |
| Seat depth (open, usable surface) | 460 mm | |
| Backrest height above seat surface | 730 mm | |
| Armrest height above finished floor | 650 mm | |
| Recommended minimum row-to-row spacing | 900 mm | |
| T-pedestal base footprint | 310 x 225 mm | |
| Perforated modesty panel height | 420 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Net weight per single seat unit | 40 kg | |
|---|---|---|
| Recommended static user weight capacity | 150 kg | |
| Seat flip-up mechanism cycle durability | 100000 cycles | |
| Upholstery Martindale abrasion resistance | 50000 cycles | |
| Seat cushion foam density | 55 kg/m³ | |
| Seat cushion foam thickness | 150 mm | |
| Backrest foam thickness | 140 mm | |
| Base static load rating per support | 800 kg | |
| Standard commercial frame warranty | 5 years | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
Core acceptance fields · Panels / hardware / frame / upholstery

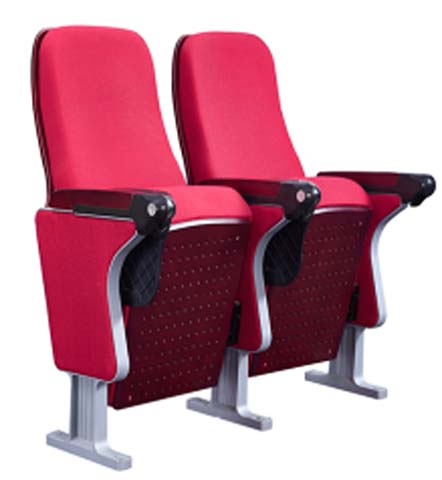

| Seat and back upholstery | Red commercial woven polyester fabric | |
|---|---|---|
| Seat cushion padding | Cold-molded high-resilience polyurethane foam | |
| Backrest padding | Contoured polyurethane foam | |
| Inner seat/back structural panels | 11mm thick hot-pressed multi-layer plywood | |
| Armrests | Dark varnished solid beech wood | |
| Support pedestal and frame | 2.2mm thick powder-coated cold-rolled steel | |
| Under-seat modesty panel | Perforated powder-coated steel panel | |
| Flip-up mechanism components | Zinc-plated steel springs and pivot hinges | |
| Outer back trim | 2.5mm thick rigid PP composite shell | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame | |
| Gas-lift Engineering Specification | Recommended Class 4; outer tube 50 mm; stroke 100 mm |
Adjustment / rotation / tilt / mobility / storage features
| Seat flip-up operation | Gravity-assisted spring automatic return seat | |
|---|---|---|
| Installation method | Permanent floor anchoring via expansion bolts | |
| Armrest configuration | Fixed shared armrests between adjacent seats | |
| Under-seat modesty panel function | Perforated panel provides ventilation and acoustic damping | |
| Backrest ergonomics | Fixed upright contoured backrest with built-in lumbar support | |
| Seat cushion design | Waterfall front edge seat cushion | |
| Ganging alignment | Interlocking steel brackets between adjacent units | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
Recommended spaces / users / usage modes
| Indoor auditorium and theater venues | Fixed audience seating for lectures, performances and film screenings | |
|---|---|---|
| Multi-purpose school halls and conference centers | Durable seating for frequent assemblies, meetings and events | |
| Government and institutional assembly rooms | Formal public seating compliant with public space safety requirements | |
| Tiered lecture hall installation | Compatible with raised stepped flooring for unobstructed sightlines | |
| High-traffic public event spaces | Wear-resistant fabric and robust mechanism for repeated daily use | |
| Fixed-row venue configurations | Ganged design maintains orderly row spacing and audience flow | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
EU Market Access Requirements* EN Standards
| EN 13761:2002 | Performance requirements for auditorium seating | |
|---|---|---|
| EN 1021-1:2014 | Upholstered furniture ignition resistance (smouldering cigarette) | |
| EN 1021-2:2014 | Upholstered furniture ignition resistance (match flame) |
Standards applicable to China-market projects
| GB 20286-2006 | Flame retardant requirements for public venue furniture materials | |
|---|---|---|
| GB/T 3324-2017 | General technical requirements for wooden furniture hardware and surfaces | |
| GB/T 10357.3-2013 | Furniture mechanical performance test for seating strength and durability |
This product must meet the following technical requirements: 1. GB 20286-2006: Flame retardant requirements for public venue furniture materials; 2. GB/T 3324-2017: General technical requirements for wooden furniture hardware and surfaces; 3. GB/T 10357.3-2013: Furniture mechanical performance test for seating strength and durability; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
