PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1740 × 760 × 1030 mm
Overall 3-seat ganged unit dimensions (closed)	1740 x 760 x 1030 mm
Seat center-to-center distance	580 mm
Seat height from finished floor	450 mm
Seat usable depth	450 mm
Writing tablet surface height from floor	760 mm
Writing tablet usable dimensions	400 x 300 mm
Back panel dimensions	465 x 380 x 10 mm
Seat panel dimensions	430 x 425 x 10 mm
Depth with writing tablet fully deployed	850 mm
Floor mounting footplate dimensions	180 x 80 x 5 mm
Vertical support leg tube dimensions	60 x 30 x 1.8 mm
Under-seat wire loop clearance	60 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per-seat net weight (installed)	28 kg
Recommended per-user static load	150 kg
Writing tablet vertical static load capacity	55 kg
Seat cushion foam density	55 kg/m³
Back cushion foam density	45 kg/m³
Foam rebound rate	60%
Fabric abrasion resistance (Martindale)	50000 cycles
Frame and mechanism warranty period	8 years
Available fabric color options	8
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Structural support frame	1.8mm thick cold-rolled steel, matte black powder coating
Seat and back core panels	10mm thick seven-layer hardwood plywood, light oak wood veneer
Seat cushion padding	55kg/m³ cold-cured high-resilience polyurethane foam, 60mm thick
Back cushion padding	45kg/m³ cold-cured polyurethane foam, 40mm thick
Seat and back upholstery	Anti-fouling, anti-static, abrasion-resistant polyester flannel
Writing tablet surface	12mm thick melamine-faced particleboard, light woodgrain finish, rounded impact-resistant edges
Armrest pads	Solid beech wood, dark stained finish, 25mm thick
Tablet pivot bracket	14mm diameter solid steel rod, black powder coated
Underseat wire management loops	4mm diameter steel wire, black coated, secured to frame with rivets
Floor mounting hardware	M10 zinc-plated steel expansion bolts, 80mm embedment depth
Seat divider panels	8mm thick MDF, dark edge trim, matching frame finish
Upholstery stitching	High-strength polyester thread, 8mm seam pitch

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Writing tablet operation	Side-pivoting folding tablet, swivels 90 degrees from stowed to deployed position
Seat return mechanism	Spring-damped automatic gravity return, lifts to vertical stowed position when unoccupied
Installation method	Permanent floor-mounted installation via bolted base feet, non-ganging removable single-seat replacement possible
Cable management	Integrated under-seat steel wire loops route power and data cables along seat rows
Seat position lock	Tablet locks in horizontal deployed position, releases via side lever for stowage
Noise dampening	Damped seat return eliminates impact noise during seat stowage, suitable for quiet lecture environments
Row configuration	Modular ganged design supports continuous straight rows, custom row lengths available per project
Edge protection	All wood panel edges rounded to 10mm radius to prevent user impact injury
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

University lecture halls and tiered classrooms	Permanent fixed row configuration supports large-group instruction and note-taking
Corporate training rooms and conference auditoriums	Integrated writing tablets and cable management support hybrid meeting use
Academic report halls and seminar venues	Quiet damped return and durable surfaces suit high-frequency public event use
Vocational education and examination spaces	Standardized seat spacing and tablet size support fair testing conditions
Public institution conference facilities	Dark frame and light wood finish complements formal institutional interior design
Tiered multimedia teaching spaces	Under-seat wire management supports deployment of individual device power supplies
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12727:2000	Furniture - Seating for educational institutions, strength and durability requirements
EN 1022:2005	Domestic furniture - Seating, stability test requirements applicable to fixed seating
EN 13501-1	Fire classification of construction products, applicable for fabric/foam fire retardancy

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to wood panel components
GB/T 3325-2017	General technical requirements for metal furniture, applicable to steel frame components
GB 18584-2001	Indoor decoration material limit of harmful substances for wood furniture, applicable to panels
GB/T 24821-2009	General technical requirements for auditorium public seating, applicable to overall unit

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to wood panel components;
2. GB/T 3325-2017: General technical requirements for metal furniture, applicable to steel frame components;
3. GB 18584-2001: Indoor decoration material limit of harmful substances for wood furniture, applicable to panels;
4. GB/T 24821-2009: General technical requirements for auditorium public seating, applicable to overall unit;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LHS-G3-FWT-1030

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LHS-G3-FWT-1030

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LHS-G3-FWT-1030Open Export Tool

Quick Actions

Post an RFQ

Product Description

This ganged fixed lecture hall seating delivers a cohesive, institutional aesthetic that balances a dark matte metal structural frame with warm light wood-veneer panels, creating a polished look suited to formal public and learning spaces. Designed for continuous straight row layouts, the modular ganged units support custom row lengths to fit specific venue footprints, with standardized seat spacing that maintains consistent, comfortable positioning for every occupant. Constructed for long-term high-frequency use, the seating features a thick cold-rolled steel frame finished with matte black powder coating for durable structural support. Seat and back cores are built from seven-layer hardwood plywood clad in light oak veneer, topped with high-resilience cold-cured polyurethane foam cushions upholstered in anti-fouling, anti-static, abrasion-resistant polyester flannel. The attached folding writing tablets use melamine-faced particleboard with rounded impact-resistant edges, mounted on solid steel pivot brackets, while armrests are crafted from dark-stained solid beech wood. Integrated under-seat steel wire loops are secured directly to the frame for reliable cable routing. Functional design details support smooth, low-disruption operation: the side-pivoting writing tablet swivels fully between stowed and deployed positions, locking securely in its horizontal working position and releasing via a side lever for storage. When unoccupied, the seat uses a spring-damped automatic gravity return to lift to a vertical stowed position, with built-in noise dampening that eliminates impact sound to preserve quiet room environments. The permanent floor-mounted bolted installation allows for single-seat replacement without disassembling adjacent ganged units, simplifying long-term maintenance. This seating is well suited for university lecture halls, tiered classrooms, corporate training rooms, conference auditoriums, academic report halls, examination spaces, public institution conference facilities, and tiered multimedia teaching venues. Its integrated cable management supports hybrid meetings and device power access, while its durable, easy-to-maintain surfaces hold up to regular public use. Procurement teams should note that each three-seat ganged unit ships across two cartons, with straightforward on-site assembly. The modular design supports custom row configurations tailored to project needs, and removable single seats simplify post-installation repairs or adjustments. The restrained two-tone dark metal and light wood finish coordinates with a wide range of formal institutional interior palettes.

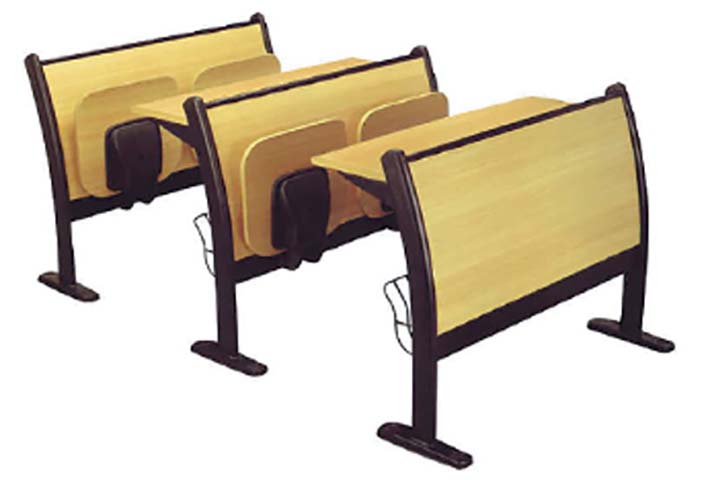

Ganged Fixed Lecture Hall Seating with Attached Folding Writing Tablets Specifications
