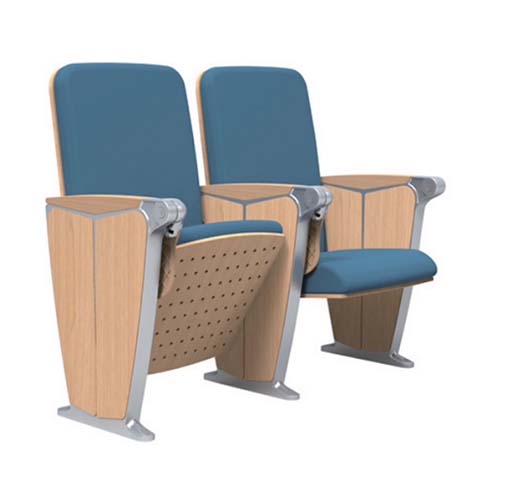

Name: Ganged Fixed Tip-Up Auditorium Chair
Brand: Yaqi Furniture
SKU: YRF5AV

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1200 × 609 × 960 mm
Seat center-to-center distance	600 mm
Seat usable width	480 mm
Seat height from finished floor to cushion top	455 mm
Seat folded depth against backrest	230 mm
Backrest height above seat cushion	505 mm
Armrest top height above seat cushion	220 mm
Perforated seat pan plywood thickness	16 mm
Floor mounting footplate dimensions per support	180 x 100 mm
Fabric requirement per individual seat	0.6 m
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended static load per seat	260 kg
Net weight per individual seat	22 kg
Seat cushion foam density	55 kg/m³
Backrest cushion foam density	53 kg/m³
Seat cushion layered foam thickness	70 mm
Backrest cushion layered foam thickness	40 mm
Fabric abrasion resistance rating	50000 double rubs
Tip-up mechanism cycle life	100000 cycles
Standard structural warranty	5 years
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat pan structure	16mm perforated oak-veneer plywood
Side and divider panels	15mm light oak-veneer plywood
Structural support stanchions and arm caps	Die-cast aluminum alloy, powder-coated silver finish
Seat and back cushions	Cold-cure high-resilience CMHR polyurethane foam
Upholstery covering	Woven polyester commercial fabric, slate blue color
Tip-up return mechanism	Zinc-plated steel spring assembly with optional soft-close damper
Floor mounting hardware	304 stainless steel anchor bolts with anti-corrosion coating
Seam construction for upholstery	Double-stitched with heavy-duty polyester thread, 8mm stitch pitch
Wood panel finish	Multi-layer UV-cured clear lacquer, 0.15mm wear-resistant top coat
Metal component finish	Textured silver powder coating, 60μm dry film thickness
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat tip-up mechanism	Spring-loaded automatic return to folded vertical position when unoccupied
Mounting configuration	Permanent floor anchoring via 4 bolts per stanchion, suitable for sloped tiered auditorium floors
Backrest support	Fixed non-reclining ergonomic upright position, 20° recline from vertical
Armrest function	Shared integrated armrest between adjacent seats, capped with smooth die-cast aluminum
Seat pan perforation function	Acoustic absorption and ventilation through uniformly spaced underside holes
Row ganging system	Rigid metal connection between adjacent stanchions for uniform spacing and structural rigidity
Optional accessory compatibility	Pre-drilled mounting points for row number plates, optional cupholders or book racks
Seat damping option	Compatible with retrofittable soft-close damper to reduce seat return noise
Backrest fixed recline angle from vertical	20°
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Performance auditoriums and theaters	Fixed tiered seating for medium to large assembly spaces with acoustic requirements
University lecture halls	Ganged row seating for long-duration lectures with clear aisle access
Conference centers and convention halls	Flexible fixed seating for plenary sessions and large corporate events
Government and institutional assembly spaces	Durable public seating for council chambers, courtrooms and civic venues
Cinema and multi-purpose halls	Space-saving tip-up seating for venues requiring flexible floor use between events
Religious worship spaces	Fixed, comfortable seating for congregational use with easy row egress
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12727:2000	Furniture – Linking seating for public areas, strength/durability requirements applicable
EN 1021-1/2:2014	Upholstered furniture ignitability test standards for contract space upholstery
EN 13501-1:2018	Construction product fire classification, applicable for fire retardant material validation

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.17-2019	Standard for Institutional Lounge Seating, applicable for public seating structural performance

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to wood panel structural components
GB 20286-2006	Flame retardant performance requirements for public place furniture, mandatory for assembly occupancies
GB/T 35456-2017	Test methods for strength and durability of public seating, applicable for structural validation

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to wood panel structural components;
2. GB 20286-2006: Flame retardant performance requirements for public place furniture, mandatory for assembly occupancies;
3. GB/T 35456-2017: Test methods for strength and durability of public seating, applicable for structural validation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · AUD-FT-600-LW-BL

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · AUD-FT-600-LW-BL

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · AUD-FT-600-LW-BLOpen Export Tool

Quick Actions

Post an RFQ

Product Description

The Ganged Fixed Tip-Up Auditorium Chair from Yaqi Furniture, model AUD-FT-600-LW-BL, is a purpose-built public seating solution designed for consistent, long-term use in high-traffic assembly spaces. Designed as rigidly ganged row seating, the unit presents a cohesive, streamlined visual profile with slate blue linen-look woven polyester upholstery, light oak-veneer wood panels finished with multi-layer UV-cured clear lacquer, and silver powder-coated die-cast aluminum structural stanchions and arm caps that create a polished, professional aesthetic suited to formal public environments. When unoccupied, the spring-loaded tip-up seats automatically return to a vertical folded position against the fixed non-reclining backrests, creating narrow, unobstructed aisles that support smooth egress between rows; when in use, seats hold a fixed ergonomic upright position angled 20 degrees from vertical, with shared integrated armrests between adjacent positions for uniform layout consistency. The seat pan is constructed from perforated oak-veneer plywood, with evenly spaced underside holes that deliver acoustic absorption and ventilation to support occupant comfort and room acoustic performance, while side and divider panels use solid light oak-veneer plywood for durable, refined visual division between seating sections. Seat and back cushions are formed from cold-cure high-resilience CMHR polyurethane foam, wrapped in commercial-grade fabric rated for heavy abrasion, with double-stitched seams using heavy-duty polyester thread for extended seam integrity. The tip-up return mechanism uses a zinc-plated steel spring assembly, with an available soft-close damper upgrade to reduce operational noise, and units anchor permanently to finished floors—including sloped tiered auditorium floors—via 304 stainless steel anchor bolts with anti-corrosion coating, with rigid metal connections between adjacent stanchions to maintain consistent seat spacing and structural rigidity across full rows. Pre-drilled mounting points support easy installation of optional accessories including row number plates, cupholders, and book racks to match specific venue needs. This seating model is well suited for a broad range of commercial and institutional spaces, including performance auditoriums and theaters with formal acoustic design requirements, university lecture halls supporting long-duration seated sessions, conference and convention centers hosting plenary events, government assembly spaces such as council chambers and courtrooms, cinemas and multi-purpose halls requiring flexible floor access between events, and religious worship spaces prioritizing comfortable, accessible congregational seating. For procurement planning, each two-seat ganged unit ships in two cartons, with a straightforward assembly process that supports efficient on-site installation. Specifiers should note the availability of soft-close dampers and accessory add-ons to align with venue noise control and functional needs, as well as the floor-mounted permanent installation requirement that is compatible with tiered venue layouts. The high-abrasion fabric rating and corrosion-resistant mounting hardware support reliable performance in spaces with regular, high-volume public use.

Ganged Fixed Tip-Up Auditorium Chair Specifications
